LAST SOLD AT ₹ 2,070.00

SKU # 1000005866

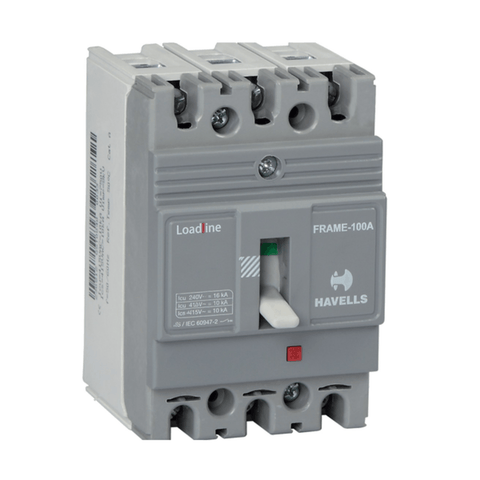

Havells Fixed Thermal and Magnetic Mccb with Three Pole GS Frame 10kA

Visit the Havells Store

₹ 2,070.00

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Biggest Festival sale

Use the coupon codes

Above ₹3,000 Use

CN100

Above ₹7,000 Use

CN150

Above ₹15,000 Use

CN200

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description:

Overload Setting is Fixed and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

Can be used as an Isolator

In 4Pwsn version, Neutral makes first & breaks last

Provision for addressing Residual Current in the Circuit.

Provision of Push to tip button

It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

Depicts the ON/OFF status of the breaker

Suitable for DC application

Offers choice of system usage

Wide range of accessories available

Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Specification:

Standard conformity: IEC 60947-2/IS:13947-2

Rated operational voltage: 500V AC

Rated Insulation Voltage: 750V AC

Type of Release: Thermomagnetic

Utilisation Category: A

Rated frequency: 50/60Hz

Ambient temp: 400C (500C on request)

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 25A - 160A

Type of Release: Fixed Type

No. of Poles: Three

Breaking Capacity: Icu = 10kA, Ics = 100% of Icu

Note: # Extended Terminals:In G-Frame from (80A to 160A)

Breaking Capacity Icu at 415V (kA)	Current Rating (A)	Frame	Cat. No.
10	25	GS	IHLGST0025
	32		IHLGST0032
	40		IHLGST0040
	50		IHLGST0050
	63		IHLGST0063
	80		IHLGST0080 #
	100		IHLGST0100 #
	125		IHLGST0125 #
	150		IHLGST0150 #
	160		IHLGST0160 #

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	3 Pole MCCB
Manufacturer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Packer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Country of Origin	India
