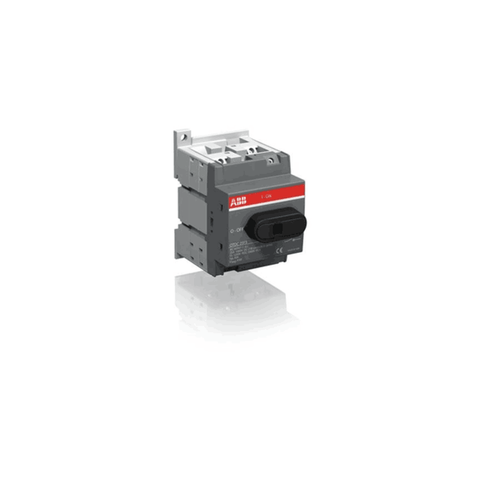

ABB Fuse Unit DC Switch-Disconnector 1000 VDC Threee Pole  - OTDC 25-32 F3

ABB Fuse Unit DC Switch-Disconnector 1000 VDC Three Pole - OTDC 25-32 F3

Visit the ABB Store

₹ 1,576.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments


Product Description

  • Dc Switch-Disconnector, Terminal Bolt Kit Included, Handle And Shaft Need To Be Ordered Separately, Base Mounting,1000 Vdc 25 A Single Circuit

  • ABB offers a compact DC switch range for single and multi circuit disconnecting

  • Carefully designed arc plates and dual magnetic breaking, breaking power is optimized across the entire current range.

  • Modular Design.

  • Simple and fast installation

  • DIN rail or screw mounted

  • Tunnel terminals for easy termination

  • Shortcircuit bars are pre-installed as standard.

  • Maximum engergy efficiency.

  • Available in plastic enclosure.

  • Product Net Width :52.5 mm

  • Product Net Height : 89 mm

  • Product Net Depth / Length : 78 mm

  • Product Net Weight :0.18 kg

  • Number of Poles : 3

  • Rated Operational Voltage:1000 V

  • Power Loss:at Rated Operating Conditions per Pole 0.3 W

  • Pollution Degree:3

  • Handle Type:Handle and shaft not included

  • Position of Line Terminals:Top In - Bottom Out

  • Operating Mode:Front operated

  • Mounting Type:Base mounting

  • Number of Circuits:1

  • Cable Cross-Section: 2.5 ... 16 mm²

  • Terminal Type:Screw Terminals

Product Specifcation

Rated current

Type

Product id

25 A

1SCA121458R1001

OTDC25F3

32 A

1SCA121459R1001

OTDC32F3


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Fuse Units

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
