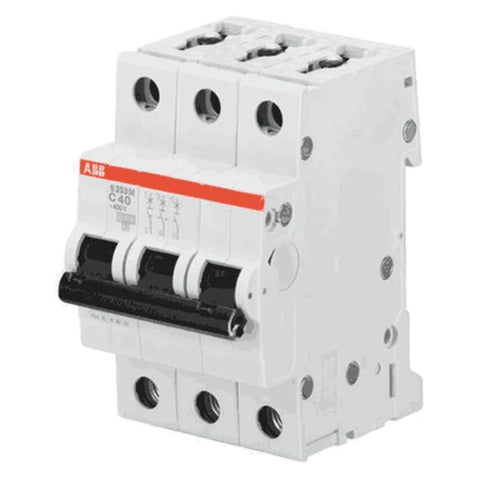

ABB MCB 0.5-63A 10 kA C Curve Three Pole S200M Series

Visit the ABB Store

₹ 1,038.00

Quantity



Pack Qty : 1

Delivery Availability

Biggest Festival sale

Use the coupon codes

Above ₹3,000 Use

CN100

Above ₹7,000 Use

CN150

Above ₹15,000 Use

CN200

Product Description

S200M Miniature Circuit Breaker, DIN Rail Mounting,Three Pole
System pro M compact S200M miniature circuit breakers are current limiting.
They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.
They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A).
All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications.
Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Product Net Width : 52.5 mm
Product Net Height : 88 mm
Product Net Depth / Length : 69 mm
Product Net Weight : 0.375 kg
Terminal : Fail safe bi-directional cylinder - lift terminal
Rated Frequency : 50/60 Hz
Real Contact position indication : Red ON / green OFF

Product Specification

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	C Curve 3 Pole MCB
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
