LAST SOLD AT ₹ 3,580.00
SKU # 1000025120

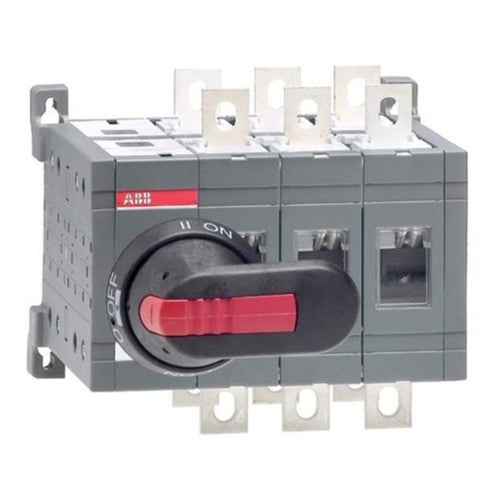

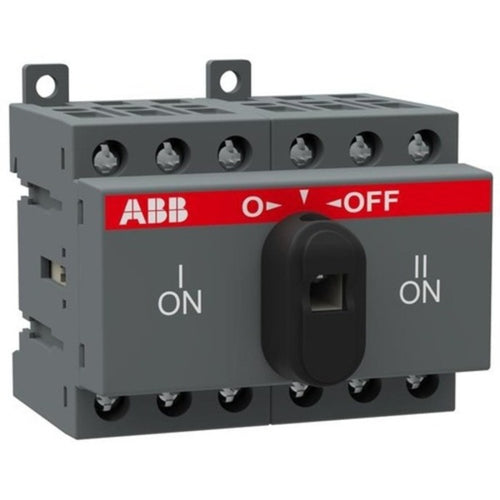

ABB OT Manual Changeover Switch Three Pole 16A-125A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Manual changeover switches, I-O-II -operation
-
Handle and shaft need to be ordered separately, Open transition
-
Conventional Thermal Current (Ithe) : Fully Enclosed 25 A
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Rated Insulation Voltage (Ui) : 750 V
-
Rated Operational Voltage : 750 V
-
Rated Short-time Withstand Current (Icw) : for 1 s 0.5 kiloampere rms
-
Pollution Degree : 3
-
Handle Color : Black
-
Handle Type : Handle and shaft not included
-
Switches Operating Mechanism : Mechanism on Top of the Switch
-
Distance Between Phases : Standard
-
Position of Line Terminals : Top In - Bottom Out, Bottom In - Top Out
-
Operating Mode : Front operated
-
Mounting Type : Base mounting
-
Number of Poles : 3
-
Cable Cross-Section : 0.75 ... 10 mm²
-
Degree of Protection : Front IP20
-
Product Net Width : 70 mm
-
Product Net Height : 68 mm
-
Product Net Depth / Length : 68 mm
-
Product Net Weight : 0.25 kg
Product Specification
Rated Current(A) |
Product Id |
Model |
16 |
1SYN104816R1001 |
OT16F3C |
25 |
1SYN104863R1001 |
OT25F3C |
40 |
1SYN104913R1001 |
OT40F3C |
63 |
1SYN105338R1001 |
OT63F3C |
80 |
1SYN105402R1001 |
OT80F3C |
100 |
1SYN105008R1001 |
OT100F3C |
125 |
1SYN105037R1001 |
OT125F3C |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
3 Pole Onload Changeovers |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
