LAST SOLD AT ₹ 740.00

SKU # 1000020268

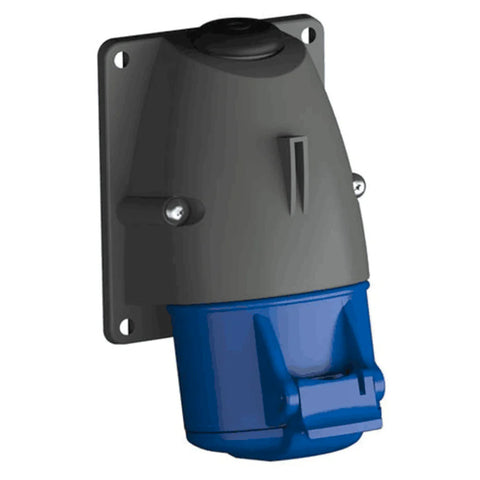

ABB Surface Socket Outlets 16A-63A

ABB Surface Socket Outlets 16A-63A


₹ 1,480.00

Quantity

Pack Qty : 2



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Wall mounted socket, earthing sleeve position 6h, rated current 16A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Blue

  • Cable Cross-Section : 1.5 ... 4 mm²

  • Cable Diameter : 18 mm

  • Cable Entry Position : Cable entry, flexible membrane and metric threaded M20 insert for top cable entry.Rear knock-out cable entry

  • Color : Blue

  • Type : 2P+E

  • Connection Type : Screw clamp

  • Enclosure Material : Thermoplastic

  • Frequency (f) : 50 Hz , 60 Hz

  • Function : Wall mounted socket

  • Housing Material : Plastic (PA)

  • Mounting Holes : 75x54

  • Mounting Type : Angled

  • Number of Poles : 3

  • Product Main Type : ERS

  • Product Name : Wall mounted socket

  • Protection Type : Splashproof

  • Rated Voltage (Ur) : 200 ... 250 V

  • Recommended Screw Driver : PH2

  • Standards : IEC 60309-1 , IEC 60309-2

  • Suitable For : Surface Socket Outlets

  • Suitable for Product Class : Industrial Plugs and Sockets

  • Product Net Width : 66 mm

  • Product Net Height : 91 mm

  • Product Net Depth / Length : 117 mm

  • Product Net Weight : 0.22 kg

Product Specification

Current Rating (A)

Protection

Type

Product ID

16

IP44

216RS6

2CMA193098R1000

32

IP44

232RS6

2CMA193122R1000

63

IP44

263RS6

2CMA167476R1000

16

IP67

216RS6W

2CMA167149R1000

32

IP67

232RS6W

2CMA167172R1000

63

IP67

263RS6W

2CMA167306R1000

125

IP67

2125RS6W

2CMA167246R1000


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Industrial Socket

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
