SKU # 1000003261

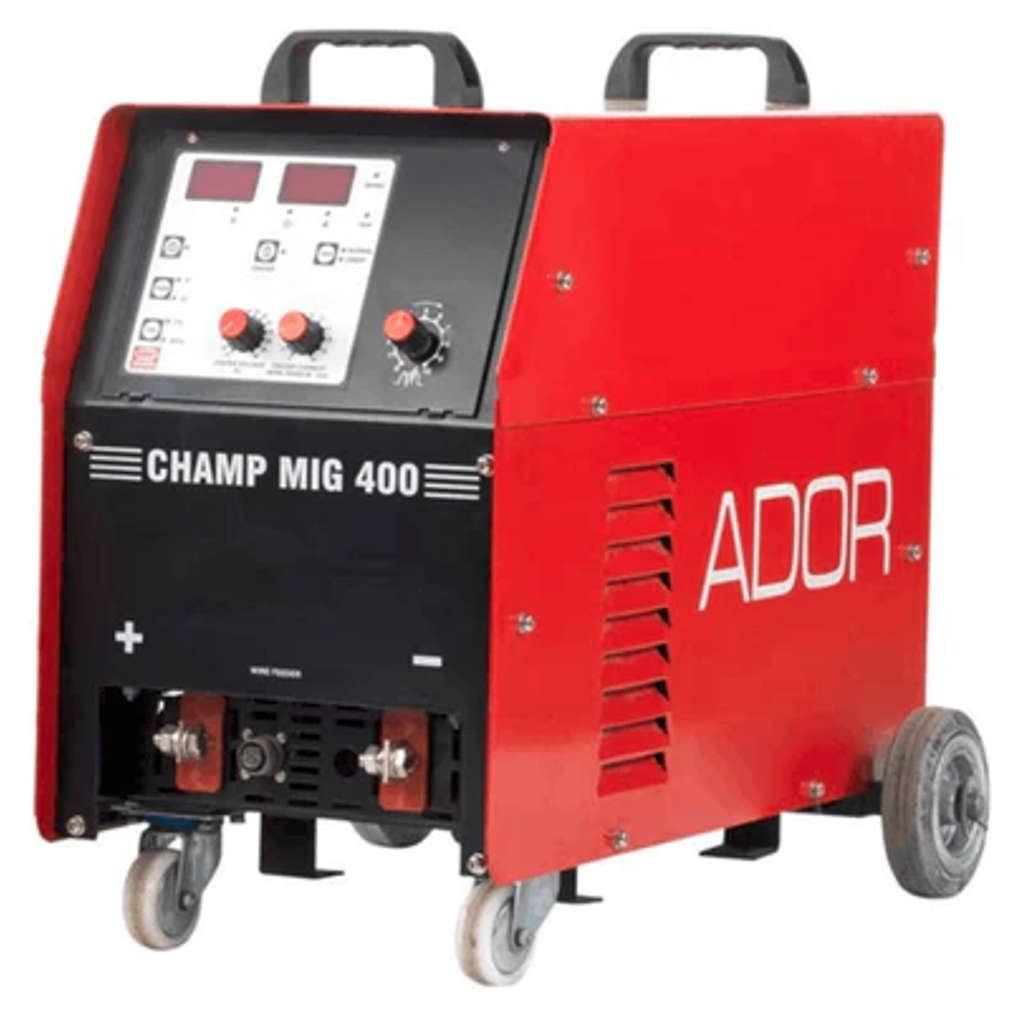

Ador Welding Machine CHAMP MIG 400
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
General Features
-
The new word Class indigenous inverter based
-
GMAW Welding outfit
-
Inverter based digitaly controlled GMAW outfit
-
High efficiency and high power factor – resuting energy saving
-
Enhanced Reliablity due to SMD technology
-
Auto “Weld Stop” when Welding torch is taken away from Weld job
-
Compatible to Power Generator supply
Introduction
CHAMP MIG 400 is IGBT inverter based Welding outfit Suitable for GMAW applications. The IGBT Power
module, ferrite core and fast recovery diode are used as key device for power conversion and transmission to assure better efficiency and performance.
The Complete system consists of power source, Wire feeder, MIG torch and interconnecting cables.
Details Of Complete System
|
Sr. No. |
Description |
Champ Mig 400 |
Champ Mig 400 |
|
01 |
Power Source |
ICVR 400 |
ICVR 400 |
|
02 |
Wire feeder |
FEEDLITE 40 (NEMRC) |
FEEDLITE 40 (NEMRC) |
|
03 |
Torch |
ADOR TW 402 (E) |
ADOR MTG 400 (E) |
Salient Features
-
Digital panel for adjusting the Welding parameters
-
25% more Energy efficient than conventional machines.
-
Maximum Power factor is 0.94
-
Excellent dynamic response enables superior arc characteristics.
-
2T, 4T operating modes
-
Electronic choke adjustment for better arc control
-
Crater Voltage and Crater current adjustment through digital panel.
-
Unique feature of Fresh Tip Transfer (FTT) to avoid globule formation.
-
Automatic “Weld Stop” facility.
Protection
-
The equipment is provided with following protections
-
Under Voltage and Over Voltage Error message is displayed and the equipment shuts down if the
supply Voltage exceeds the positive or negative limits specified in the Technical Specifications
-
Over Temperature Error message is displayed and the equipment shuts down if the temperature of
the main power components exceeds the safe limits
-
Single Phasing Protection Error message is displayed and the equipment shuts down if any one of
the three phase supply line is absent (Single-phasing prevention / protection)
Warranty
One year from the date of purchase. ADOR Welding Limited warrants that a new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.
Product Specifications
|
Technical Specifications |
Unit |
Icvr 400 |
|
Input |
||
|
Voltage |
Vot |
415 V +15 %, -10 % |
|
Phase |
No |
3Ø |
|
Frequency |
Hz |
50 / 60 |
|
Input KVA |
- |
|
|
at 100% duty Cycle |
KVA |
12 |
|
at No Load |
KVA |
0.24 |
|
Output |
||
|
Open Circuit Voltage |
Volts +/-5% |
65 |
|
Welding Current Range |
Amp |
50-400 |
|
Welding Current |
||
|
(40oC 10 min Cycle) |
||
|
at 60% duty Cycle |
Amp |
400 |
|
at 100% duty Cycle |
Amp |
310 |
|
Welding Voltage Range |
Vot |
16-39 |
|
Crater Current Range |
Amp |
50-400 |
|
Crater Voltage Range |
Vot |
16-39 |
|
Mode of operation |
|
2 track, 4 track, Gas check, OCV |
|
|
|
check facility |
|
Remote control |
- |
For setting Voltage & current |
|
Power Factor |
- |
Max 0.93 |
|
Efficiency |
% |
87% at 100% duty Cycle |
|
General |
||
|
Compatibiity to International standard |
- |
As per Std. EN60974-1 |
|
Wire feed speed |
m/min |
1.5-18 |
|
Suitable Welding Wire Diameter |
mm |
Auminum 1.2 – 1.6 Stee 0.8,1.0,1.2 & 1.6 |
|
Ingress Protection |
Class |
IP23 |
|
Cooling |
Type |
Forced Air |
|
Dimensions |
||
|
Length |
mm |
700 |
|
Width |
mm |
450 |
|
Height |
mm |
600 |
|
Weight |
Kg |
44 |
|
Audio Noise Emission |
dB |
70 |

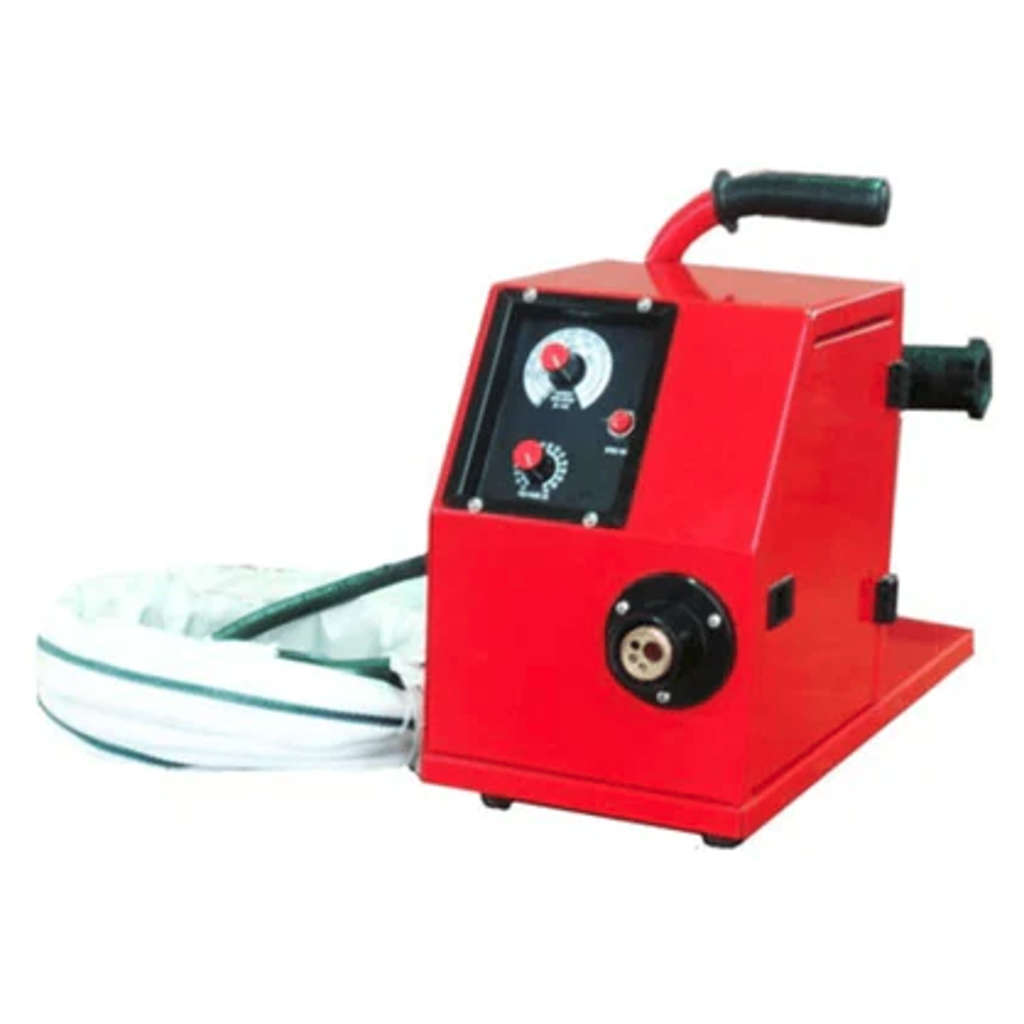

Wire Feeder Specifications
|
Technical Specifications |
Unit |
Feedlite 40 (NEMRC) |
|
Suitable for Wire Ø |
mm |
0.8,1,1.2,1.6 |
|
Wirefeed speed |
mtr/min |
1.5 to 18 |
|
Wire roll drive |
- |
Four |
|
Wire drive motor |
Type |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
MIG Welding Machine |
Manufacturer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Packer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Country of Origin |
India |
