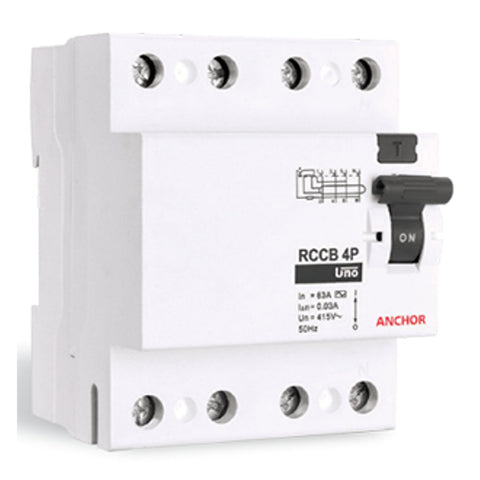

Anchor UNO Residual Current Circuit Breaker (RCCB) 4 Poles
Anchor UNO Residual Current Circuit Breaker (RCCB) 4 Poles 7059110265026
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Residual Current Circuit Breaker (RCCB) also called Earth Leakage Circuit Breaker (ELCB) is a device designed to disconnect the load from the supply mains, when the residual current (I∆n) is flowing in the circuit
-
The flow of currents in the electrical system is risky
-
Low quality faulty wires, poorly insulated equipments or incorrect use of electrical devices cause current to flow through the wrong path to the earth
-
This current is called “Leakage Current”
-
Features
-
Elegant appearance
-
Advance Neutral breaks after phases, ensuring complete discharge
-
No nuisance tripping
-
Fastest Tripping Mechanism
-
Bi-connect terminals for bus bar as well as cable connections
-
IP 20 protection finger touch proof connection terminals as well
-
Truly current operated, operates even at very low voltage
-
High short current withstand capacity
-
Large terminal size 35 sq mm
-
Manufactured in accordance with IS 12640 Part I
-
Flame retardant body and cover, does not melt / drip even at high temperature
Product Specification
Brand |
Anchor |
Product Type |
RCCB |
Product Code | Specification |
98213 | 25A DP 30mA 98214 | 25A DP 100mA 98215 | 25A DP 300mA 98219 | 40A DP 30mA 98220 | 40A DP 100mA 98221 | 40A DP 300mA 98222 | 63A DP 30mA 98223 | 63A DP 100mA 98224 | 63A DP 300mA |
Series |
UNO |
Reference Standard |
IS 12640 -1:2000, IEC 61008 |
Poles |
FP |
Current Rating (In) |
25A, 40A & 63A |
Rated Voltage (Ue) |
240/415V~ AC |
Rated Residual Operating Current(I∆n) |
30mA, 100mA & 300mA |
Protection |
Against Earth fault / Leakage Current |
Operating Device |
Current operating device |
Rated Frequency(f) |
50Hz |
Rated Insulation Voltage(Ui) |
440 V |
Rated Conditional Short Circuit Current(Inc) |
6kA |
Rated Making Capacity(I∆m) |
500A or 10In whichever is greater |
Operating Characteristic |
‘AC’ Type |
Dielectric Strength |
2.5 kV |
Trip Time |
Instantaneous < 40ms, Selective > 150ms |
Operating Temperature |
-5 to 50 ºC |
Terminal Capacity |
35 mm2 (max.) copper |
Relative Humidity |
95% |
Vibration |
3g |
Protection Class |
IP 20 |
Contact Position Indication |
Yes |
Installation Position |
Vertical / Horizontal |
Mounting |
Clip on Din rail ( 35 mm * 7.5 mm) |
Warranty |
As Per Manufacturer Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Pole RCCBs |
Manufacturer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Packer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Country of Origin |
Japan |
