Out of Stock!
SKU # 1000133713

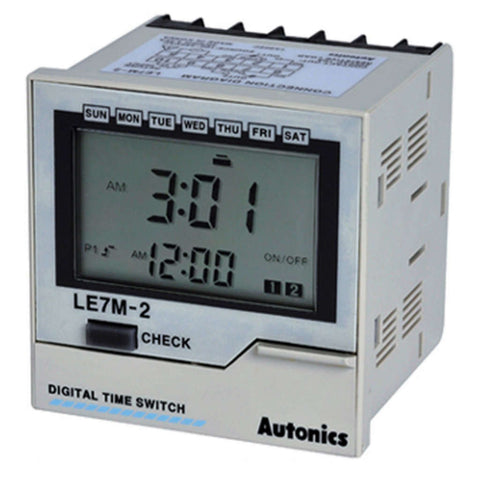

Autonics Digital Weekly/Yearly Timer LE7M-2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The LE7M series digital week/year timers allow time configuration and control in week or year units
-
Simple configuration and status monitoring is possible with 2 independent built-in relay control outputs
-
DIN rail mount type is available for convenient installation
-
Features
-
Various external input functions
-
Backlight display with high visibility
-
Simple configuration and status monitoring
-
Time configuration and control in week or year units
-
Daylight savings time function
-
2 independent built-in relay control outputs
-
Flush mounting and surface/DIN rail mounting models available
Product Specification
Brand | Autonics |
Product Type | Digital Timer |
Product Series | LE7M-2 |
Power Supply | 100-240VAC 50/60Hz |
Allowable Voltage Range | 90 to 110% of rated voltage |
Power Consumption | Max. 4.2VA (100-240VAC 50/60Hz) |
Return Input | Short-circuit or open by switch or relay |
Timing Program | 48 steps for weekly, 24 steps for yearly |
Operation Mode | ON/OFF mode, cycle mode, pulse mode |
Mounting | Front panel, surface, DIN rail |
Time Deviation | ±15sec./month (ambient temperature: 25 |
Temperature Error | ±0.01% ±0.05sec. (ratio by set time) |
Memory Protection | Over 5 years (at 25°C) |
Control Output | |
Contact Type | SPDT (Single Pole Double Throw) |
Contact Capacity | 250VAC 10A resistive load |
Output Number | Independent 2 output (1c × 2) |
Relay Life Cycle | |
Mechanical | Min. 5,000,000 operations (switching capacity: 30 times/min) |
Electrical | Min. 50,000 operations<switching capacity: 20 times/min, 250VAC 10A (resistive load)> |
Insulation Resistance | Min. 100MΩ (at 500VDC megger) |
Dielectric Strength | 2000VAC 50/60Hz for 1minute |
Noise Strength | ±2kV the square wave noise (pulse width: 1 |
Environment | |
Ambient Temperature | -10 to 55°C, storage: -25 to 65°C |
Ambient Humidity | 35 to 80%RH |
Unit Weight | Approx. 272g |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 7.2 x 7.2 x 5 |
Unit of Measurement | 1 Piece |
Weight | 1 kg |
Generic Type | Digital Timers |
Manufacturer Details | Autonics 39, Magokjungang 5-ro 1-gil, Gangseo-gu,Seoul, Republic of Korea |
Packer Details | Autonics India Plot No.D, 28/9, TTC Midc Rd, MIDC Industrial Area, Turbhe, Navi Mumbai, Maharashtra 400705 |
Importer Details | Autonics India Plot No.D, 28/9, TTC Midc Rd, MIDC Industrial Area, Turbhe, Navi Mumbai, Maharashtra 400705 |
Country of Origin | Korea |
