SKU # 1000061895

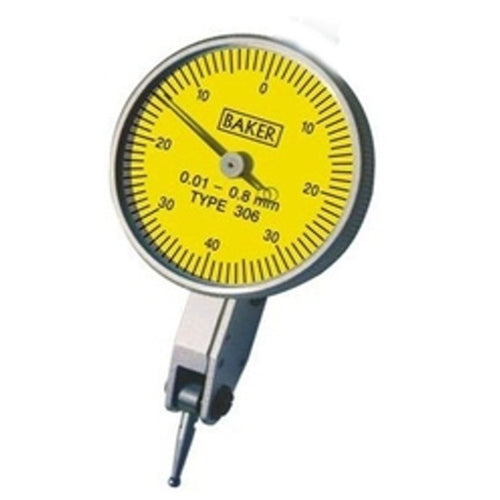

Baker Model 38 Lever Type Dial Gauge Long Stylus 0.8mm 306AL
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Every gauge carries a calibration certificate giving actual values
-
Auto reversal mechanism
-
Fitted with jewels and Swiss miniature ball bearings for smoother operation
-
Robust and highly sensitive gauge suitable for workshop use
-
Metric Gauges conform to IS 11498 and for the European market to DIN 2270
-
Inch Gauges conform to ASME B89.1.10M
-
Special dial Gauges for OEMs also manufactured on request
-
Complete spares and after sales service available
-
Integral dovetail offers flexibility and rigidity for mounting of the gauge
-
Metric & Inch gauges are supplied with 2mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply
-
No additional accessories are offered when suffix A is added to the type number
Product Specification
|
Brand |
Baker |
|
Product Type |
Lever Type Dial Gauge Long Stylus |
|
Part Number |
306AL |
|
Model |
38 |
|
Measure System |
Metric |
|
Bezel Diameter |
38 mm |
|
Reading |
0.01 mm |
|
Range |
0.8 mm |
|
Graduation |
0-40-0 |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dial Gauges |
Manufacturer Details |
Baker Gauges Pvt Ltd, 33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800 |
Packer Details |
Baker Gauges Pvt Ltd, 33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800 |
Country of Origin |
India |
