SKU # 1000122287

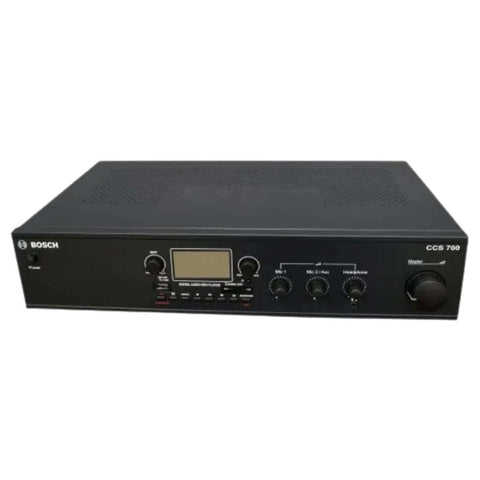

Bosch Control Unit With Recorder And Amplifier CCSE-CURA-IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Controls up to 50 Discussion units
-
Built-in audio recorder and amplifier
-
Audio interfaces for connecting external audio equipment
-
The CCS700 Ultro Discussion System is suitable for use in meetings and conference venues with a limited number of participants
-
The Control Unit (CCSE-CURA) is the heart of the CCS700 Ultro Discussion System and supplies the power for all delegate and chairman units in the system
-
The unit also controls the chairman and delegate unit microphones,as well as providing interfaces for external audio equipment
-
The CCS700 discussion system is a plug and play solution for the audio conference requirements
-
Functions
-
The CCSE-CURA (CURA) supports almost any kind of small or medium meeting
-
For business discussions and small conferences,two to six microphones can be active simultaneously,with the chairman always having speaker priority
-
The active microphone selection knob on the rear panel can be used to select the number of active participants
-
Unused microphones are switched off automatically after 60 seconds if delegates forget to switch off their units
-
Supplies Power For Up To 50 Discussion Units
-
The CURA has two trunk outputs for the loop through connection of discussion units
-
It is possible to connect a maximum of 25 discussion units to each trunk output in open loop configuration
-
Maximum trunk length supported by CURA is 100 meters in open loop configuration
-
For closed loop configuration with 50 discussion units the loop length can be extended up to 200 meters
-
A maximum of 50 discussion units can be connected to a CURA
-
Recorder And Amplifier
-
The CURA has a built-in recorder,the user needs to plug in either USB pen drive or a SD card,to record the meeting,which can be used to playback the recorded Meeting
-
The Controller is also equipped with a 30 Watts power amplifier,by which the user can connect additional loudspeakers for sound reinforcement
-
Audio Interfaces
-
The CURA can be interfaced with different types of device like a sound reinforcement system, external microphones and an external music player
-
The headphones output on the front of the CURA can be used by a secretary for taking the minutes of the meeting,the headphones output also has a volume control knob to adjust the volume of the headphones
-
To support external participants (during town-council meetings,for example), extra microphones in any style (wired, wireless, hand-held or podium) can be connected to the system through mic inputs
-
Audio record and playback module for recording ongoing conference in USB pen drive/SD card
-
Volume control for Mic 1 input
-
Volume control for Mic 2 / Aux input
-
Headphones input and volume control
-
Master volume control
-
Slide switch for limiter On/Off
-
Speaker output - 100 V/8/4 Ohm
-
Slide switch to enable or disable the priority tone for chairman units
-
Control knob for selecting active participants
-
Interconnections
-
Trunk input and output 8-pin DIN connectors for loop through connection
-
Microphone input with XLR connector
-
Configurable Mic or Aux input with 6.5mm phono jack
-
Cinch connectors for connecting to external PA system and Feedback suppressor or Equalizer
-
Earth connection screw
-
Mains socket
Product Specification
| Brand | Bosch |
| Product Type | Controller Unit |
| Product Model | CCSE-CURA-IN |
| Electrical | |
|
| |
| 45 W | |
| 30 W | |
| Environmental | |
| Operating Temperature | +5 ºC to +45 ºC |
| Storage Temperature | -20 ºC to +70 ºC |
| Mechanical | |
| Color | |
| Weight | 6 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – W x H x D | 88 x 433 x 252 |
| Unit of Measurement | 1 Piece |
| Weight | 6 kg |
| Generic Type | Controller Unit |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country of Origin | India |
