SKU # 1000139341

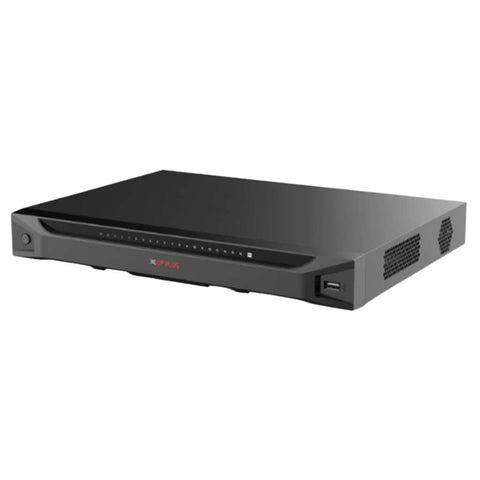

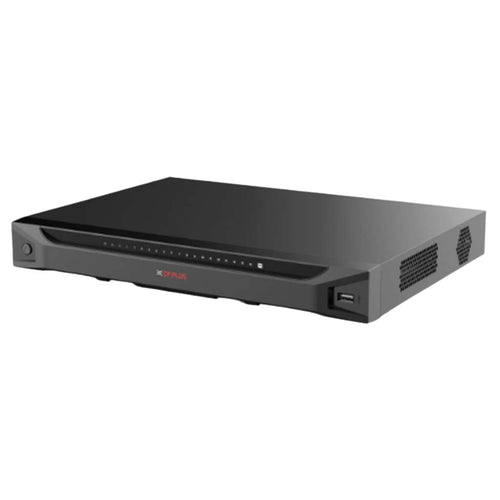

CP Plus 32 Channel Digital Video Recorder CP-UVR-3201K2-I3-V2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Instastream, H.265, H.264+, H.264, dual stream video compression
-
Max. 32 channels IP camera inputs, each channel up to 6MP, Max 128Mbps incoming bandwidth
-
Up to 8 channels video stream (analog channel) Perimeter Protection
-
Up to 16 channels video stream (analog channel) SMD Plus
-
Up to 2 channels video stream (analog channel) human face recognition
-
Support 2 SATA HDDs up to 16TB Each
-
1 HDMI/ 1 VGA/ 1 TV Simultaneous/heterogeneous video output
-
Mobile Software: iCMOB, gCMOB
-
Functions
-
Signal Auto-Adapt
-
This DVR recognizes the signal type (CVI, TVI, AHD, CVBS) and automatically adapts without requiring any manual intervention
-
This has provided much ease to the user since signal compatibility was always a towering concern
-
Addnl IP Cameras Support
-
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc
-
CP Plus DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Instastream
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP Plus help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
Smart Motion Detection (SMD Plus)
-
CP Plus has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP Plus IP Cameras, DVRs/ NVRs and Video Door Phones, the CP Plus gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively supports CP Plus devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
DVR |
|
Product Model |
CP-UVR-3201K2-I3-V2 |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
User Interface |
Web, Local GUI |
|
Analog Camera Input |
32 BNC ports, Supports HDCVI/AHD/TVI/CVBS autodetect |
|
IP Camera Input |
Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
|
Two-Way Talk |
Support (share the same audio input with the first channel) |
|
Video Output |
1 HDMI, 1 VGA, 1 TV VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
Face Attributes |
Gender, Age group, Glasses, Expressions, Face mask, Beard |
|
Abnormality Alarm |
No disk, Storage error, Disk full, Camera offline, IP conflict, MAC conflict |
|
Face Database Capacity |
Up to 10 face databases with 10,000 face images in total. Name, Gender, Birthday, Address, Certificate type, Certificate No., Countries & regions and state can be added to each face image |
|
TV Output |
1 channel |
|
Network Mode |
Single-address mode |
|
Encoding Capacity |
Main stream: 5MP Mode: 4-ch 5MP@(1-6fps), Other channels 5M-N@ (1-12fps) 5M-N Mode: All channel 5M-N@(1–12fps), 4M-N,1080p@(1–15fps), 1080N, 720p, 960H, D1, CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps) |
|
Perimeter Performance AI By DVR |
Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel |
|
Stream Capability |
Dual stream |
|
Video Display Split |
1/4/8/9/16/25/36 |
|
Video Compression |
Instastream, H.265, H.264+, H.264 |
|
Face Recognition Performance AI By DVR |
2 channels |
|
Face Detection Performance Of AI By DVR |
2 channels (up to 12 face images/s each channel) |
|
Bit Rate |
32 kbps–6144 kbps |
|
SMD Plus By DVR |
16 channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change |
|
Camera Input |
1.CVI:5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps 2.TVI:5MP@20fps,4MP@25/30fps,1080p@25/30fps, 720p@25/30fps 3.AHD:5MP@20fps,4MP@25/30fps,1080p@25/30fps, 720p@25/30fps |
|
Audio Sample Rate |
8 kHz, 16 bit |
|
Hard Disk |
2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature |
|
Disk Group |
Support |
|
General Alarm |
Motion detection, Video loss, Tampering |
|
Audio Bit Rate |
64 kbps |
|
Intelligent Alarm |
Face detection, Face recognition, Perimeter protection |
|
Alarm Linkage |
Record, Snapshot (panoramic), IPC external alarm output, Access controller, Voice prompt, Buzzer, Log, Preset, Email |
|
Recording Playback |
1/4/9/16 |
|
Recording Mode |
General, Motion detection, Intelligent, Alarm, POS |
|
Playback Mode |
Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection) |
|
Backup Mode |
USB device and network |
|
Interface Ports |
2 USB (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 HDMI, 1 VGA, 1 RS485 |
|
Ethernet |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
Audio Input |
1 channel RCA, 32 channel BNC (Coaxial Audio) |
|
Audio Output |
1 channel RCA |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P, ONVIF 22.12 (Profile T, Profile S, Profile G), CGI, SDK |
|
Audio Compression |
G.711a, G.711u, PCM, AAC |
|
Browser |
Chrome, IE9 or later, Firefox |
|
Smart Phone |
iOS, Android |
|
Power Supply |
DC 12V, 5A |
|
Power Consumption |
<16 W (without HDD) |
|
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
|
Operating Humidity |
10%–90% (RH) |
|
Dimension |
375 × 289.4 × 53 mm |
|
Weight |
1.90 kg (4.20 lb) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
37.5 x 28.9 x 5.3 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
2 kg |
|
Generic Name |
32 Channel DVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
