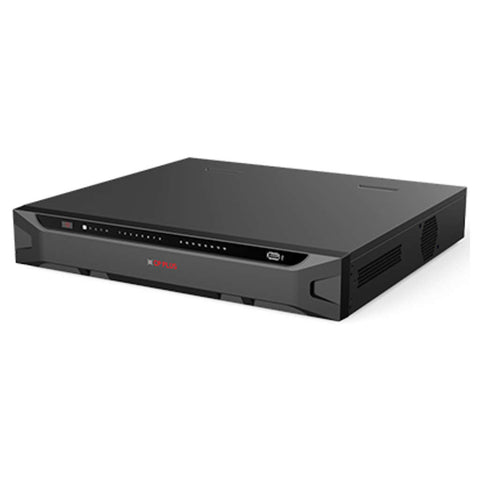

CP Plus 64 Channel Network Video Recorder Without HDD CP-UNR-4K5644-FI

Brand

CP Plus

Product Type

NVR

Product Model

CP-UNR-4K5644-FI

Processor

Industrial-grade processor

Operating System

Embedded Linux

IP Camera Input

64 Channel

User Interface

Web, Local GUI

AI By Camera

Face detection, Face recognition, Video metadata (human, motor vehicles, and non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map

AI By NVR

Face detection, Face recognition, Perimeter protection, SMD Plus

Perimeter Performance AI By NVR

4 Channels, 10 IVS rules for each channel

Perimeter Performance Of AI By Camera

All Channels (16 targets/s)

Video Output

VGA:1920 × 1080, 1280 × 1024, 1280 × 720;

HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

Face Detection AI By NVR

2 channels (up to 12 face images/s each channel)

Face Detection By Camera

16 channels

Abnormality Alarm

Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behaviour of fan, Cyber security exception

Face Attributes

Gender, Age group, Glasses, Expressions, Face mask, Beard

Face Database Capacity

Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, Gender, Birthday, Address, Credential type, Credential No., Countries & Regions and state can be added to each face image

SMD Plus By NVR

8 channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change

Face Recognition AI By NVR

1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe

FD (by recorder) + FR (by recorder), video stream: 12 face images/s

Face Recognition AI By Camera

16 Channels

SMD By Camera

All Channels (32 targets/s)

Network Bandwidth

AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing

AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Network Mode

Multi-address mode, load balance, fault tolerance and other network port binding modes

Resolution

32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF

IntelliCheck AI By Camera + Recorder

Max. 32 Channel, 1 Combined event per Channel/s

Multi-Channel

Up to 16 channels

Video Metadata By Camera

8 Channels

ANPR By Camera (Number Of Channels)

All Channels (8 targets/s)

Encode Strategy

Instastream, H.264+

Video Display Split

Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16

Decoding Capability

AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps

AI enabled: 1 Channel 32 MP@25 fps, 1 Channel 24 MP@25 fps, 2 Channel 16 MP@30 fps,

4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fp

Non-Motor Vehicle

Vehicle model, Vehicle color, Number of persons, Helmet

License Plate Database Capacity

1. Create up to 20,000 plate numbers. 2. Blocklist and allow list

Motor Vehicle Attributes

License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle

interior, Vehicle registration location

Human Attributes

Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella

Audio Input

1 Channel RCA

Audio Output

2 Channel RCA

Audio Compression

G.711a, G.711u, PCM, G726, AAC

Video Compression

H.265, H.264, MJPEG

Alarm Input

16 Channels

Alarm Output

6 Channels (1 Channel 12 V 1 A output)

Disk Group

Support

Disk Interface

4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature

General Alarm

Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm

Intelligent Alarm

Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor

vehicles, and non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map

Recording Mode

General, Motion detection, Intelligent, Alarm, POS

Playback

Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection)

Backup Mode

USB device and network

Alarm Linkage

Record, Snapshot, Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email

Interface Ports

3 (1 front USB 2.0 port, 2 rear USB 3.0 ports), 2 HDMI, 2 VGA, 1 RS232, 1 eSATA Port, 1 RS485

Ethernet

2 (10/100/1000 Mbps Ethernet port, RJ-45)

Protocols

HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, iSCSI, ONVIF 23.12(Profile T/ Profile S/ Profile G), CGI, SDK

Smart Phone

iPhone, iPad, Android Phone

Power Supply

100–240 VAC, 50-60Hz

Power Consumption

≤ 13 W (without HDD)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–93% (RH), non-condensing

Storage Temperature

-20 °C to +60 °C (–4 °F to +140 °F)

Dimension

440 × 415.1 × 70 mm

Weight

4.74 kg (Without HDD)

Warranty

As Per Manufacturer Terms And Conditions

Dimension (CM) L x B x H

44 x 41.5 x 7

Unit Of Measurement

1 Piece

Weight

4.8 kg

Generic Name

64 Channel NVR

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
