Out of Stock!

SKU # 1000118086

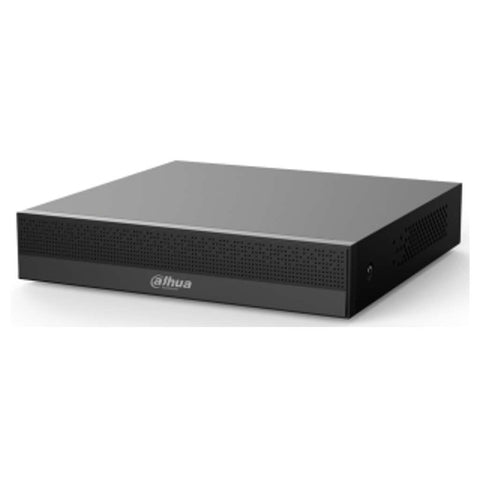

Dahua Cooper Series Digital Video Recorder 8CH DH-XVR 4B08-V2

Dahua Cooper Series Digital Video Recorder 8CH DH-XVR 4B08-V2

Visit the Dahua Store

₹ 4,750.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • H.265+/H.265 dual-stream video compression

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs

  • Maximum 5 channels IP camera inputs,each channel up to 2MP; Maximum 20 Mbps incoming bandwidth

  • Long transmission distance over coax cable

  • Supports 1 SATA HDD,up to 6TB

  • System Overview

  • Dahua,as a technology leader,is always the first ever developed the shining new technology in the security industry,and today we present Cooper Series XVR

  • Designed as a full compatibility product,XVR is able to provide end user the simplicity of analog system,namely lower system cost,simple installation and use of existing cable

  • And with the adoption of Smart H.265+/H.265,the series improves encoding efficiency,saving on bandwidth/storage costs

  • It is ideal for a wide range of civil applications such as retail store,home protection and so on

  • Featuring high performance with attractive costs,the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance

  • Functions

  • Smart H.265+

  • Smart Codec,H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras

  • HDCVI/AHD/TVI/CVBS/IP Auto-Detect

  • The XVR can auto recognize the signal of front-camer without any setting

  • It makes operation more friendly and convenient

  • Coaxial Audio/Upgrade/Alarm

  • The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation

  • Long Distance Transmission

  • The HDCVI system supports long distance transmission over coaxial cable and UTP,maximum 800m for 1080P and 1200m for 720P

  • Smart Search

  • This function helps you get more motion detect video during a short time through drawing a region when playback

  • It is very useful when an emergency occurs

  • Perfect Image Quality

  • High performance chip provides perfect image quality with better color reproduction

  • P2P

  • Monitor at anytime and anywhere

  • Easily and conveniently mange the device

Product Specification

Brand

Dahua

Product Type

XVR Recorder

Product Model

DH-XVR 4B08-V2

Product Series

Cooper Series

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Audio And Video

Analog Camera Input

8 channel,BNC

HDCVI Camera

1080P 25/30fps, 720P 25/30/50/60 fps

AHD Camera

1080P 25/30, 720P 25/30fps

TVI Camera

1080P 25/30, 720P 25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8CH: 8+2, each channel up to 6MP

Audio In/Out

1/1, RCA

Two-Way Talk

Reuse audio in/out, RCA

Recording

Video Compression

H.265+/H.265/H.264+/H.264

Resolution

1080N, 720P, 960H, D1, CIF

Record Rate

Main Stream;

The 1st channel 1080N/720P(1~25/30fps), others
1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/
QCIF(1~25/30fps)

Sub Stream

CIF (1`7 fps)

Video Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720

Multi-Screen Display

When IP extension mode not enabled:8CH: 1/4/8/9

When IP extension mode enabled:8CH: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection,Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Maximum User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection And Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Playback And Backup


Playback

1/4/9

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 6TB capacity

Auxiliary Interface

USB

2 USB 2.0

Electrical

Power Supply

DC12V/1.5A

Power Consumption(Without HDD)

<10 W

Environmental

Operating Conditions

-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Installation

Desktop installation

Colour

Black

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (MM) – W x L x H

197 x 192 x 41

Unit Of Measurement

1 Piece

Generic Name

XVR Recorder

Weight

0.98 kg

Manufacturer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China

Packer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China

Importer Details

Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100

Country Of Origin

China
