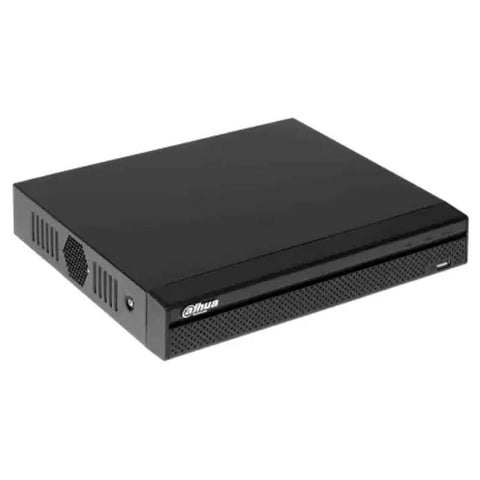

Dahua Lite Series Network Video Recorder 16CH DHI-NVR2116HS-4KS2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265/H.264 codec decoding
-
Max 80Mbps incoming bandwidth
-
Up to 8Mp resolution preview&playback
-
Up to 1ch 8MP/4ch 1080P decoding
-
HDMI/VGA simultaneous video output
-
System Overview
-
It helps to save up to 50% HDD and storage space with its H.265 decoding technology compared with H.264
-
Due to its cost-effective and easy-to-install design,this NVR is ideal for a wide range of applications such as home safety,grocery,warehouse,education,and financial institutions
-
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS)
-
It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4
protocol,enabling interoperability with IP cameras -
Functions
-
High Efficiency Video Coding (H.265)
-
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality,or substantially improved video quality at the same bit rate,as compared to older video compression technologies
-
H.265 offers such impressive compression by expanding the pattern comparison and difference-coding,improving motion vector prediction and motion region merging,and incorporating an additional filtering step called sample-adaptive offset filtering
-
Automatic Network Replenishment (ANR) Technology
-
Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected
-
After recovery of the network,the NVR automatically retrieves the video data stored on the camera
-
Easy4ip
-
The Easy4ip app is available on the iOS App Store and Google Play
-
It makes surveillance easy and simple,allowing you to remotely access NVR devices,view live video, receive event push notifications,and search for recorded videos from an iPhone,iPad,or Android phone at anytime from virtually anywhere
Product Specification
| Brand | Dahua |
| Product Type | NVR |
| Product Model | DHI-NVR2116HS-4KS2 |
| Product Series | Lite Series |
| System | |
| Main Processor | |
| Operating System | |
| Audio And Video | |
| IP Camera Input | 16 channels |
| Two-Way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720 |
| Decoding Capacity | 1ch 8MP 30fps, 4ch 1080P 30fps |
| Multi-Screen Display | 1/4/8/9/16 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc |
| Record Rate | 80Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection And Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), and Tampering |
| Playback And Backup |
|
| Sync Playback | 1/4 |
| Search Mode | Time /Date, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1 RJ-45 port (10/100/1000Mbps) |
| Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip |
| Maximum User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 1 SATA III Port, up to 6TB capacity for each HDD |
| HDD Mode | Single |
| Auxiliary Interface | |
| USB | 2 ports (1 Rear USB2.0, 1 Front USB2.0) |
| Electrical | |
| Power Supply | Single, DC12V/2A |
| Power Consumption | <3W (without HDD) |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Colour | Black |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – W x L x H | 260 × 224.9 × 47.6 |
| Unit Of Measurement | 1 Piece |
| Generic Name | 16 Channel NVR |
| Weight | 1.6 kg |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
