SKU # 1000017639

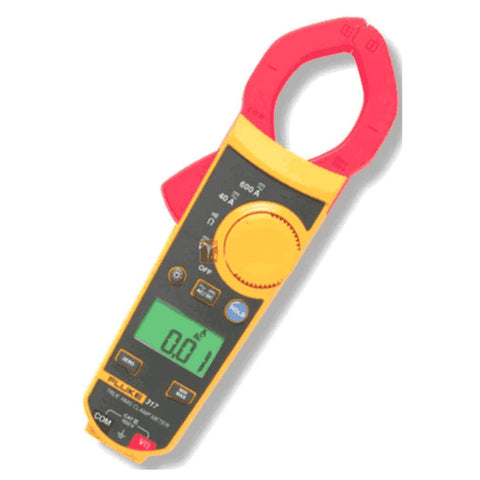

Fluke Digital Clamp Meter with Backlight 317
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Fluke 317 is designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily
-
These small and rugged clamp meters are ideally suited for current measurements up to 1000 A (319) in tight cable compartments
-
The Fluke 317 also offer AC/DC current measurements and has a higher resolution for loads below 40 A
-
Unique 40A high-precision low current measurement--0.01A high-resolution, 1.6% high-precision measurement
-
The clamps are slim, lightweight, and portable, making them ideal for use in small, confined spaces
-
The large backlight display facilitates readings in dark environments
-
Current frequency measurement
-
Precision down to 0.01A and 0.1V
-
1000A/600A AC/DC current measurement
-
Continuity beeper
-
Auto off function enhances battery life, meaning the instrument can work when you need it screen store ‘hold’ function for capturing a measurement result on the screen
Product Specification
|
Brand |
Fluke |
|
Product Type |
Clamp Meter |
|
Model |
317 |
|
Digital Display |
6000 count resolution |
|
Low Battery Indication |
Displays a signal when the batteries are below their required voltage |
|
Power Source |
Three AAA IEC LR03 batteries |
|
Clamp Opening Size |
1.45 in (37 mm) |
|
Jaw Diameter |
1.45 in (37 mm) |
|
Dimensions (L X W X H) |
6.39 x 2.29 x 1.20 in |
|
(162.4 x 58.25 x 30.5 mm) |
|
|
Weight |
Approximately 13.5 oz (384 g) (batteries included) |
|
Auto Range |
Available in Ohms |
|
Safety |
CE , EN/IEC 61010-1 and IEC 61010-2-032 |
|
Safety Measurement Category |
600V CAT III |
|
Current Ac Range |
40.00 A, 600.0 A |
|
Current Ac Resolution |
0.01 A, 0.1 A |
|
Current Dc Range |
40.00 A, 600.0 A |
|
Current Dc Resolution |
0.01 A, 0.1 A |
|
Current Dc Accuracy |
1.6% ±6 digit (40 A) ,1.5% ±5 digit (600 A) |
|
Voltage Ac Range |
600.0 V |
|
Voltage Ac Resolution |
0.1 V |
|
Voltage Ac Accuracy |
1.5% ±5 digit (20-500Hz) |
|
Voltage Ac Response |
rms |
|
Voltage Dc Resolution |
600.0 V |
|
Voltage Dc Accuracy |
0.1 V |
|
Voltage Dc Response |
1% ±4 digit |
|
Resistance Range |
400.0 Ω, 4000 Ω |
|
Resistance Resolution |
0.1 Ω, 1 Ω |
|
Resistance Accuracy |
1% ±5 digit |
|
Continuity |
≤ 30 Ω |
|
Inrush |
Integration time |
|
Operating Temperature |
14°F to 122°F (-10 °C to 50 °C) |
|
Storage Temperature |
-40 °F to 140 °F (-40 °C to 60 °C) |
|
Operating Altitude |
1 mile (2000 meters) above mean sea level |
|
Storage Altitude |
7 miles (12,000 meters) above mean sea level |
|
Ip Rating |
IP40 |
|
Vibration Requirements |
Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis |
|
Drop Test Requirements |
3 ft (1 m) drop test, six sides, oak floor |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Digital Clamp Meter |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
