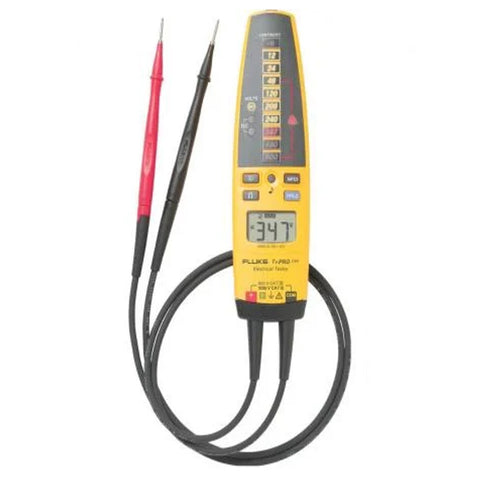

Fluke Electrical Tester T+Pro
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Detect live voltage, see voltage level, even with dead batteries
-
3 forms of AC/DC voltage indication: light, sound, and vibration
-
Backlit LCD display and hold function for easier viewing
-
Safer than solenoid testers and fully compliant with NFPA 70E, (when used properly per Article 110.4 Use of Equipment (A) Test Instruments and Equipment), the T+Pro helps electricians and technicians work safer by indicating the presence of voltage, even when the batteries are dead Additional functionality, such as a GFCI trip, easy to read LCD screen, resistance measurement up to 9.99 kΩ, and a built-in flashlight make the T+Pro the first voltage tester that electricians reach for
-
The T+Pro is safety rated to CAT IV 600 V, CAT III 1000 V, and is CSA approved
-
The tester also has a built-in flashlight for highlighting the point of measurement
-
A GFCI trip is included for testing outlet GFCI circuits
-
The T+ Pro also includes a rotary field indicator and has convenient probe storage on the back
Product Specification
|
Brand |
Fluke |
||
|
Product Type |
Electrical Tester |
||
|
Product Model |
T+Pro |
||
|
Temperature |
Operating |
-10°C to 55°C (14°F to 131°F) |
|
|
Storage |
-30°C to 60°C (-22°F to 140°F) |
||
|
Relative Humidity |
90% |
0°C to 30°C (32°F to 86°F) |
|
|
75% |
30°C to 40°C (86°F to 104°F) |
||
|
45% |
40°C to 50°C (104°F to 122°F) |
||
|
Altitude |
Operating |
2,000 m (approx. 6,561.6 ft) |
|
|
Storage |
10,000 m (approx. 32,808.4 ft) |
||
|
Battery Type/Life |
AAA (2); 40 hours |
||
|
Shock, Vibration |
Sinusoidal Vibration Per MIL-PRF-28800F For A Class 2 Instrument |
||
|
AC Bandwidth |
45 Hz to 66 Hz |
||
|
Maximum Working Voltage |
1000 V AC/DC |
||
|
Maximum Measurable Voltage |
600 V AC/DC |
||
|
Duty Cycle |
Indefinitely For Voltages Up To 240 V |
||
|
For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off |
|||
|
For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s |
|||
|
Voltage Hazard LED |
LEDs Turn On At Voltages > 30 V AC/DC ±35% |
||
|
LED Voltage Indication Levels |
12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V |
||
|
LEDs |
LEDs Turn On Between 90% And 100% Of The Indicated Voltage On The LED, Except For The 12 V LED Which Turns On Between 50% and 100% |
||
|
LCD Accuracy |
AC Voltage |
±(3% rdg + 2 digits) |
|
|
DC Voltage |
±(2% rdg + 2 digits) |
||
|
Resistance |
±(5% rdg + 3 digits) |
||
|
LCD Resolution |
0.1 V For Voltages < 50 V, 1 V For Voltages ≥ 50 V |
||
|
0.01 KΩ For Resistance Measurement |
|||
|
GFCI Test Current |
100 V - 150 V 6 mA - 9 mA AC, 150 V - 240 V < 12 mA |
||
|
Standard Input Test Current |
< 5 mA |
||
|
Size (H x W x L) |
1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm ) |
||
|
Weight |
9.9 oz (0.28 kg) |
||
|
When Used Properly Per Article 110.9 Use of Equipment (A) Test Instruments and Equipment |
|||
|
Warranty |
2 Years |
||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Electrical Tester |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
