SKU # 1000064743

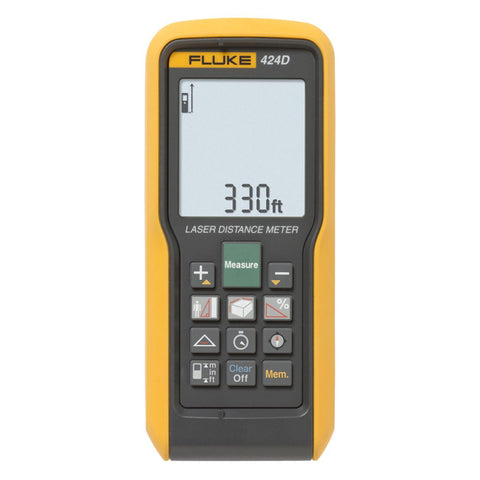

Fluke Laser Distance Meter 424D
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Versatile laser distance meter that instantly measures up to 100 meters (330 feet) with one-button point-and-click operation
-
Quickly calculates area (square feet/meters) and volume
-
Includes 180° inclination sensor for leveling and height tracking
-
Offers enhanced Pythagoras calculation for determining distance indirectly from three other measurements
-
Fluke 424D Laser Distance Meter delivers a full measure of sophisticated features
-
The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations and reduce errors
-
Just point and click to instantly measure up to 100 meters (330 ft.), accurate to + 1 mm
-
No scales to interpret or misread
-
The extra bright laser supports easy targeting even at longer distances
-
Extra features like a 180º inclination sensor, the corner angle feature, and a built-in compass make it easy to get accurate measurements in hard-to-reach locations
-
You'll be able to see the results more clearly on the large, four-line backlit display
-
No matter your job, the 424D laser distance meter will help you do the work of two people on your own
-
Other Helpful Features:
-
Provides a compass "heading" for distance measurement
-
Provides easy to-use addition and subtraction function
-
Includes automated end-piece correction. When measuring from an edge or corner, a built-in sensor detects the position of this bracket and automatically changes the reference point
-
Provides audible keypad feedback
-
Offers improved visibility with a bigger, 4-line backlit display
-
Improved battery life of 5000 measurements with automatic shut-off feature
-
Offers minimum/maximum tracking to measure the room’s diagonal and horizontal distance from a stable measurement point
-
Allows mounting on a tripod for stable long distance measurements
-
Includes stake out function for marking off defined measured lengths
-
Stores the last twenty measurements for quick recall
-
Strong environmental protection with IP54 (water spray and dust proof) sealing
-
Powered by two AAA batteries
Product Specification
|
Brand |
Fluke |
|
Product Type |
Laser Distance Meter |
|
Product Model |
424D |
|
Model No |
4235484 |
|
Distance Measurement |
|
|
Typical Measuring Tolerance 1 |
±1.0 mm 3 |
|
Maximum Measuring Tolerance 2 |
±2.0 mm 3 |
|
Range At Leica Target Plate Gzm26 |
100 m / 330 ft |
|
Typical Range 1 |
80 m / 260 ft |
|
Range At Unfavorable Condition 4 |
60 m / 195 ft |
|
Smallest Unit Displayed |
6 / 30 / 60 mm (10 / 50 / 100 m) |
|
Ø Laser Point At Distances |
6 / 30 / 60 mm (10 / 50 / 100 m) |
|
Tilt Measurement |
|
|
Measuring Tolerance To Laser Beam 5 |
±0.2° |
|
Measuring Tolerance To Housing 5 |
±0.2° |
|
Range |
360° |
|
General |
|
|
Laser Cass |
2 |
|
Laser Type |
635 nm, < 1 mW |
|
Protection Class |
IP54 |
|
Automatic Laser Off |
After 90 seconds |
|
Automatic Power Off |
After 180 seconds |
|
Battery Life (2 X Aaa) 1.5 V Neda 24a/Iec Lr03 |
Up to 5,000 measurements |
|
Size (L X W X D) |
127 x 56 x 33 mm |
|
Temperature Range Storage Operation |
-25°C to +70°C (-13°F to +158°F) |
|
-10°C to +50°C (14°F to +122°F) |
|
|
Calibration Cycle |
Tilt and compass |
|
Maximum Altitude |
3000 m |
|
Maximum Relative Humidity |
85% at 20°F to 120°F (-7°C to 50°C) |
|
Safety |
IEC Standard No. 61010-1:2001 |
|
EN60825-1:2007 (Class II) |
|
|
EMC |
EN 55022:2010 |
|
EN 61000-4-8:2010 |
|
|
EN 61000-4-3:2010 |
|
|
Weight (with Batteries) |
158 g |
|
Warranty |
3 Years |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Laser Distance Meters |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
