SKU # 1000058691

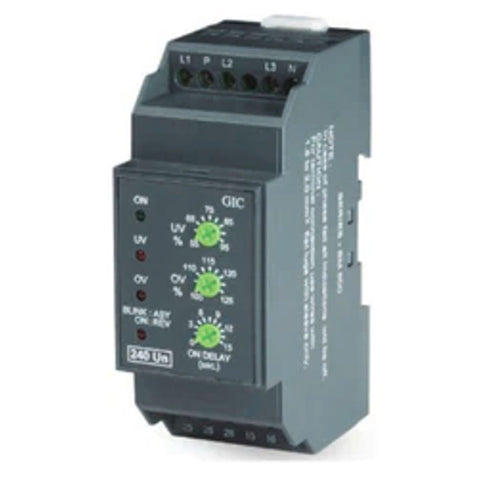

GIC SM500 Voltage Monitoring Relay MD71BH
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Protects against Phase Loss, Phase Reversal & Phase Asymmetry
-
Can be configured for 3 Phase 4 Wire or 1 Phase system
-
Selectable Over Voltage / Under Voltage Trip level
-
Selectable Time Delay
-
LED Indications for Power and Fault conditions
-
Voltage Sensing principle
-
1 C/O or 2 C/O Configuration
Product Specification
Brand |
GIC |
Product Type |
Voltage Monitoring Relay |
Model |
MD71BH |
Series |
SM500 |
Power Consumption (Max.) |
4VA |
Supply Voltage |
415 VAC |
Trip Settings |
Phase Loss – Yes Phase Sequence – N.A Phase Asymmetry – N.A Under Voltage - 55% to 95% Over Voltage - 105% to 125% |
Frequency |
50/60 Hz |
Time Delay |
ON Delay - 0.5 s to 15 min (Selectable) Trip Time (OFF Delay) - 5 s |
LED Indicator |
Separate indications for Power ON, UV and OV |
Output |
Relay Output – 1 C/O Contact Rating - 5A @ 250 VAC / 28 VDC (Resistive) Electrical Life – 1X105 Mechanical Life - 5X106 |
Humidity (Non Condensing) |
95% (Rh) |
Dimension (W x H x D) (in mm) |
36 X 90 X 60 |
Weight |
120 g |
Warranty |
As Per Manufacture Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Monitoring Relay |
Manufacturer Details |
Larsen & Toubro Limited L&T House, Ballard Estate, P. O. Box: 278, Mumbai 400 001 India |
Packer Details |
Larsen & Toubro Limited L&T House, Ballard Estate, P. O. Box: 278, Mumbai 400 001 India |
Country of Origin |
India |
