SKU # 1000134947

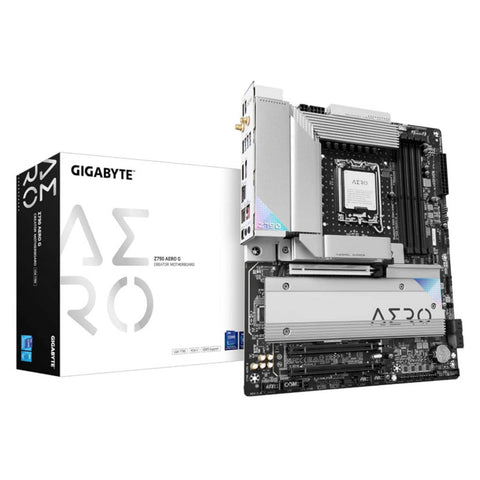

Gigabyte Z790 Aero G DDR5 Motherboard
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Aero Series
-
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation
-
To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production
-
Simplify Your Connections
-
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C cable
-
DDR5
-
Faster Instant Reaction Speed
-
Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed
-
PCIe 5.0 Design
-
The Fastest, Most Robust Level
-
Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.
-
PCIe 5.0 M.2 Storage
-
Fast Speed More Space
-
Equipped with a full-speed PCIe 5.0 M.2 slot
A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration -
PCIe x4 M.2
-
Creates Exclusive Storage Performance
-
All PCIe x4 M.2 slots provide NVMe SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support
-
Aesthetic Cooling Design
-
Gigabyte's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process
-
Gigabyte Creator Motherboard
-
Supports 13th and 12th Gen Intel Core Series Processors
-
VisionLINK : One USB-C Port for Video, Data Transfer and Charging
-
Dual Channel DDR5 : 4*SMD DIMMs with XMP Memory Module Support
-
Next Generation Storage : 1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
-
Advanced Thermal Design & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
-
EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
-
Fast Networks : Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
-
Extended Connectivity : DP IN, HDMI, Front USB-C 20Gb/s Support
-
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
-
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Product Specification
| Brand | Gigabyte |
| Product Type | Motherboard |
| Product Model | Z790 Aero G |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel Z790 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz |
| Audio | Realtek ALC1220-VB CODEC |
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Expansion Slots | CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Storage Interface | CPU 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| USB | Chipset 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 22.6 x 18.5 x 4 |
| Unit Of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | Motherboards |
| Manufacturer Details | A-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Packer Details | Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705 |
| Importer Details | Gigabyte Technology India Private Limited B-411, 4th Floor, Bsel Tech Park Plot No. 39/5 & 39/5A, Opposite Vashi Railway Station, Vashi Navi Mumbai 400705 |
| Country Of Origin | Taiwan |
