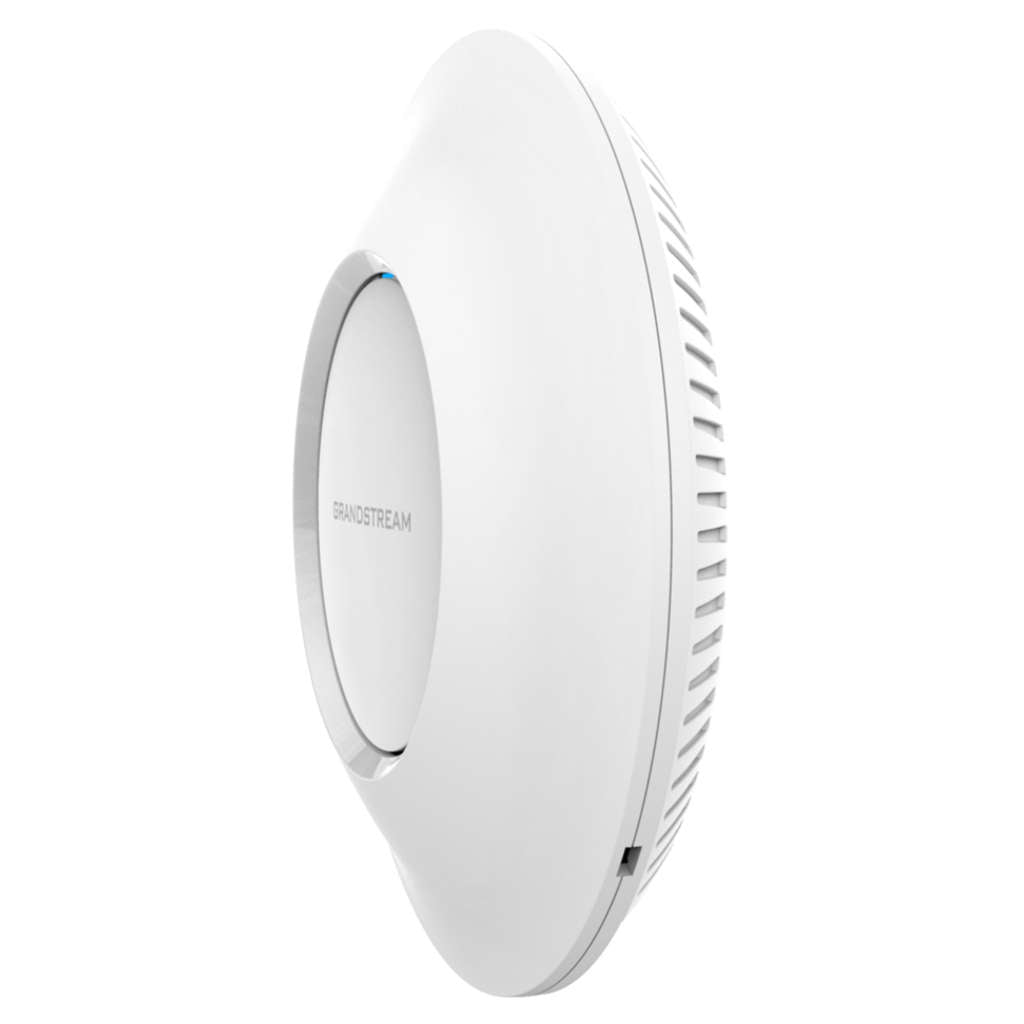

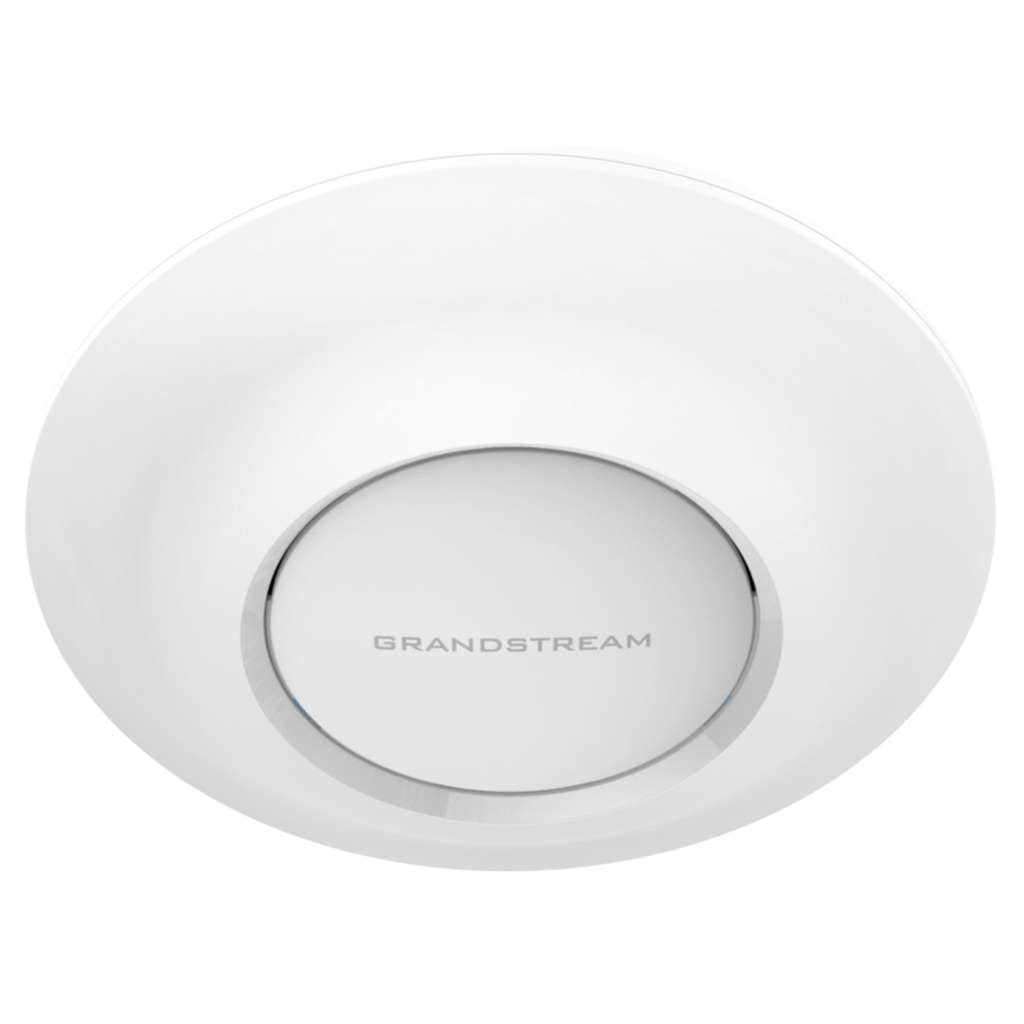

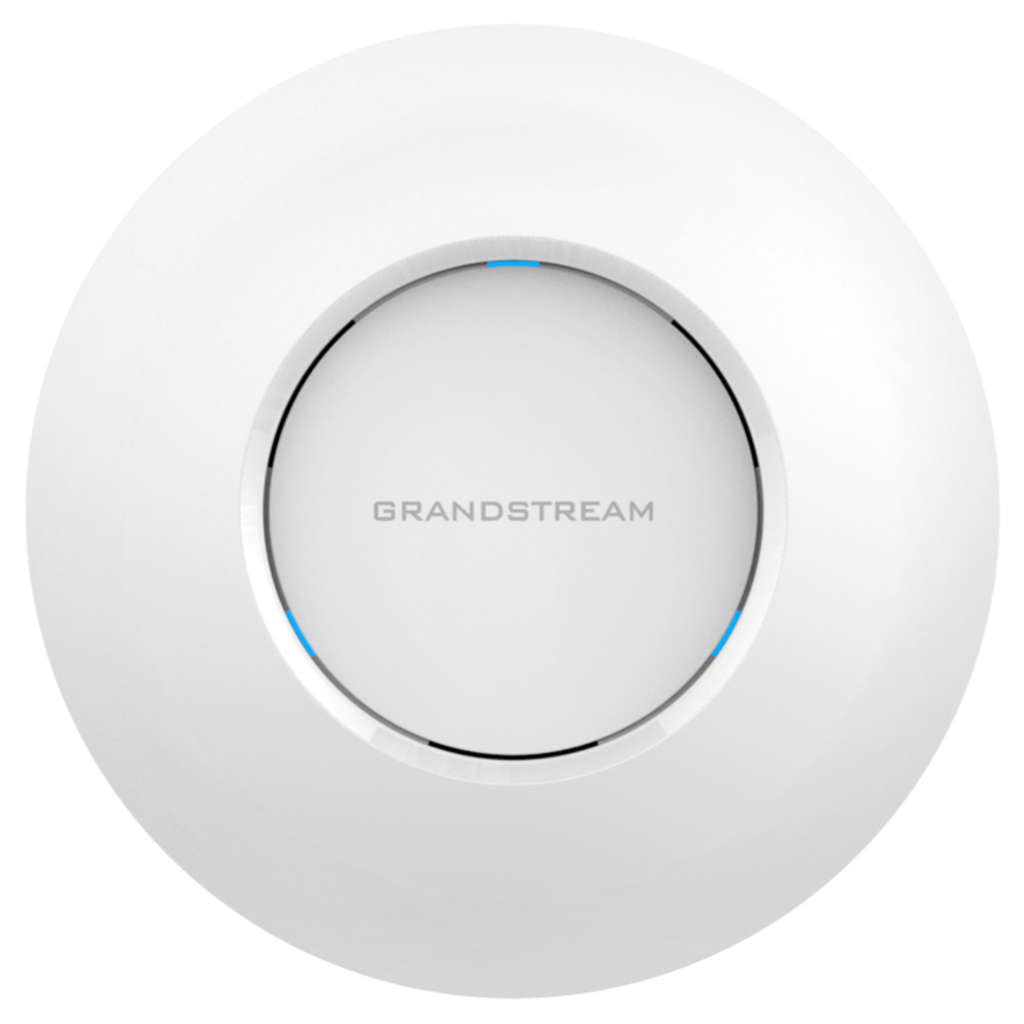

Grand Stream Hybrid Indoor Wi-Fi Access Point GWN7625

Grandstream Hybrid Indoor Wi-Fi Access Point GWN7625

Visit the Grandstream Store

₹ 8,170.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, home offices, retail shops, restaurants and more

  • It offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range

  • To ensure easy installation and management, the GWN7625 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface

  • The GWN7625 is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform

  • It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones

  • With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals,
    200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7625 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density

Product Specification

Brand

Grandstream

Product Type

Wi-Fi Access Point

Product Model

GWN7625

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac (Wave-2)

Antennas

6 single frequency internal antennas
2.4GHz, gain 3.5dBi
5GHz, gain 4.5dBi

Wi-Fi Data Rates

2.4G:
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
5G:
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 Mhz

Channel Bandwidth

2.4G: 20 and 40 MHz
5G: 20, 40 and 80 Mhz

Wi-Fi And System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default password per
device

MIMO

2×2:2 2.4GHz(MIMO)
4×4:4 5GHz(MU-MIMO)

Coverage Range

Up to 165 meters

Maximum TX Power

2.4G: 23dBm
5G: 25dBm

Receiver Sensitivity

2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs

16 SSIDs total, 8 per radio (2.4GHz & 5GHz)

Concurrent Clients

200

Network Interfaces

2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

1x Reset Pinhole, 1x Kensington lock

Mounting

Indoor wall mount or ceiling mount, kits included

LEDs

3 tri-color LEDs for device tracking and status indication

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN Aps

Power And Green Energy Efficiency

Supports 802.3az PoE 802.3af/ 802.3at;
Maximum Power Consumption: <13W

Environmental

Operation: 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x W x H

25.8 x 24.7 x 8.6

Unit Of Measurement

1 Piece

Weight

0.900 kg

Generic Type

Wi-Fi Access Point

Manufacturer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:sales@grandstreamindia.in

Packer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:sales@grandstreamindia.in

Country Of Origin

India
