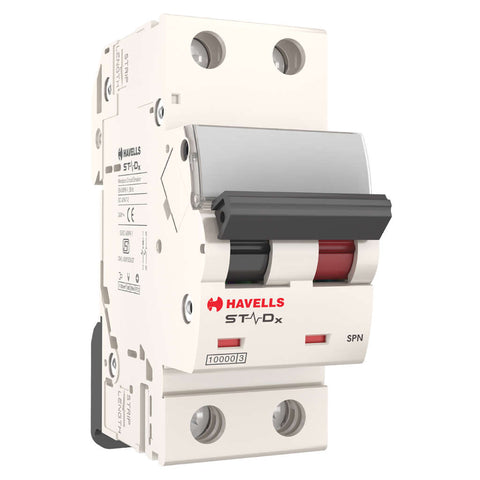

Havells C Series C Curve MCB SPN 0.5 To 63A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Inscription Window
-
Ensures circuit identification and hence reduces maintenance downtime
-
Application
-
Suitable for protection against overload & short circuit for Motor and other Inductive loads
-
Safety Terminals
-
To avoid improper cable termination, the safety terminals guide the cable towards the cage terminal for systematic termination
-
Large Cable Terminals
-
Suitable for copper and aluminum cables, these terminals are compatible with cables upto 35 mm² cross section area
-
Bi Stable Clip
-
Every device is provided with a dual position DIN rail clip, so it becomes much easier to change a device from a device bank connected to a bus-bar, without disturbing the existing wiring
-
Positive Contact Indication
-
It clearly indicates contact position through Flag Indication (Red-ON, Green-OFF) thus enhancing safety
-
Auxiliary
-
Field Fitable Auxiliary Contacts
-
(In accordance with IS/IEC 60898-1 & IS/IEC 60947-2) 240 V/415 V, 50 Hz, 10 Ka
-
*Actual product image may vary from that shown on the picture
Product Specification
| Brand | Havells |
| Product Type | MCB |
| Product Code | Rating | DHMZCSNF0x5-005 | 0.5 A-5 A DHMZCSNF006-032 | 6 A-32 A DHMZCSNF040 | 40 A DHMZCSNF050 | 50 A DHMZCSNF063 | 63 A |
| Series | C |
| Type | C Curve |
| No Of Poles | Single Pole & Neutral |
| Auxiliary Contacts | Yes |
| Busbar Connections Bottom Side | Pin / Fork Type |
| Busbar Connections Top Side | Pin Type |
| Dielectric Strength | 2.5 kV |
| Electrical Or Mechanical Endurance (No Of Operations) Minimum | 4000 |
| Energy Limit Class | 3 |
| Humidity | 95% RH |
| Operating Temperature | -5 °C to +55 °C |
| Positive Contact Indication | Yes, Through Flag Indication (Red-ON, Green-OFF) |
| Protection Class | IP 20 |
| Rated Frequency | 50 Hz |
| Rated Impulse Voltage | 4 kV |
| Rated Insulation Voltage | 690 V |
| Rated Voltage | 240 V AC / 415 V AC |
| Shunt Trip | Yes |
| Terminal Capacity (Maximum) | 35 mm² |
| Tightening Torque | 2 Nm |
| Installation Position | Vertical / Horizontal |
| Magnetic Release Setting | (5-10) In - C Curve |
| Mounting | Clip on DIN Rail (35 mm x 7.5 mm) |
| Case & Cover | Moulded, Flame-Retardant Thermoplastic Material |
| Dimensions (HXDXW) | 87.5 x 62 x 17.7 mm |
| Net Weight Or Pole | 125 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
SPN MCB |
Manufacturer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Packer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Country of Origin |
India |
