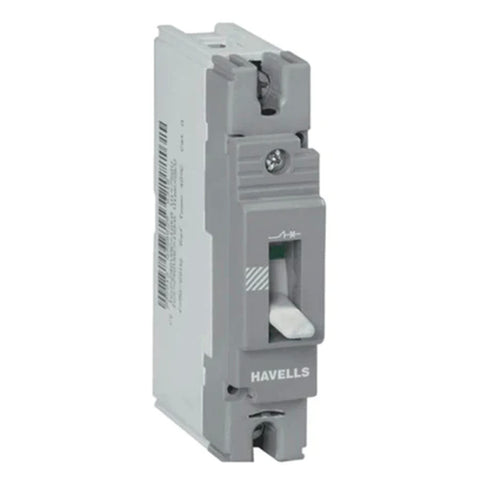

Havells Fixed Thermal and Magnetic Mccb with Single Pole GS Frame 10kA

₹ 5,520.00

Havells

Quantity



Pack Qty : 6

Delivery Availability

Product Description:

Overload Setting is Fixed and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

Can be used as an Isolator

In 4Pwsn version, Neutral makes first & breaks last

Provision for addressing Residual Current in the Circuit.

Provision of Push to tip button

It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

Depicts the ON/OFF status of the breaker

Suitable for DC application

Offers choice of system usage

Wide range of accessories available

Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Specification:

Standard conformity: IEC 60947-2/IS:13947-2

Rated operational voltage: 500V AC

Rated Insulation Voltage: 750V AC

Type of Release: Thermomagnetic

Utilisation Category: A

Rated frequency: 50/60Hz

Ambient temp: 400C (500C on request)

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 25A - 160A

Type of Release: Fixed Type

No. of Poles: Single

Breaking Capacity: Icu = 10kA, Ics = 100% of Icu

Note: # Extended Terminals:In G-Frame from (80A to 160A)

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	1 Pole MCCB
Manufacturer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Packer Details	Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com
Country of Origin	India
