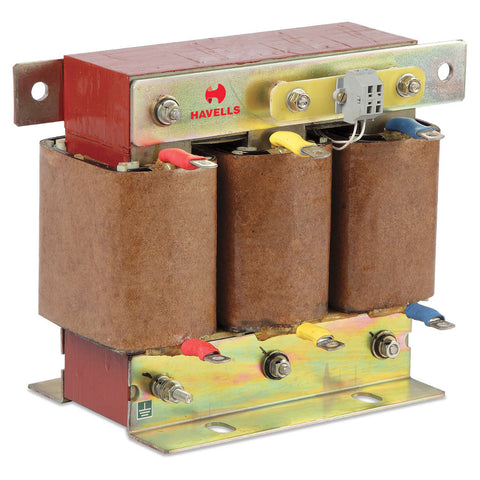

Havells HD Harmonic Duty Reactor With Copper Winding 440V AC
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Winding Type
-
High Grade Copper
-
In a practical network, XL is contributed by the transformers and line inductances and XC is contributed by the PF capacitors
-
Hence for any industry with power factor correction capacitors installed, there is a possibility of resonance
-
Parallel resonance within a given electical system, involving internally generated harmonics and resonance between local capacitors and the predominantly inductive supply (transformers)
-
Series resonance between external harmonics (in the supply system and capacitors within electrical system)
-
Interactive resonance between different harmonics filters within a given electrical network
-
Addition of detuned reactors (in series to capacitors) forcefully shifts the resonant frequency to a safer levelFor example,combination of capacitor and 7% detuned filter reactor has the resonance frequency of 189 Hz, which will avoid resonance with 5th harmonic and above
-
Features
-
Insulation Class H
-
High harmonic loading capability
-
Temperature protection - NC contact (UL Approved)
-
Long expected life time
-
Low noise & very low losses
-
IEC 61558
Product Specification
|
Brand |
Havells |
|
Product Type |
Harmonic Duty Reactor |
|
Product Code | Rating kVAr |
QHCTLCV001X0 | 1 kVAr QHCTLCV002X0 | 2 kVAr QHCTLCV003X0 | 3 kVAr QHCTLCV004X0 | 4 kVAr QHCTLCV005X0 | 5 kVAr QHCTLCV010X0 | 10 kVAr QHCTLCV012X5 | 12.5 kVAr QHCTLCV015X0 | 15 kVAr QHCTLCV020X0 | 20 kVAr QHCTLCV025X0 | 25 kVAr QHCTLCV050X0 | 50 kVAr QHCTLCV075X0 | 75 kVAr QHCTLCV100X0 | 100 kVAr |
|
Rated Voltage |
440 V ac |
|
Detuning Factor |
7% |
|
Frequency |
189 Hz |
|
Expected Life time |
Long |
|
Insulation Class |
H |
|
Linearity |
L > 0.95 Lr For Current Up To 1.85 . I1 |
|
Losses |
Low |
|
Noise Level |
Low |
|
Winding Type |
Copper |
|
Temperature Protection |
Yes - NC Contact ( UL approved) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Harmonic Duty Reactors |
Manufacturer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Packer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Country of Origin |
India |
