SKU # 1000002718

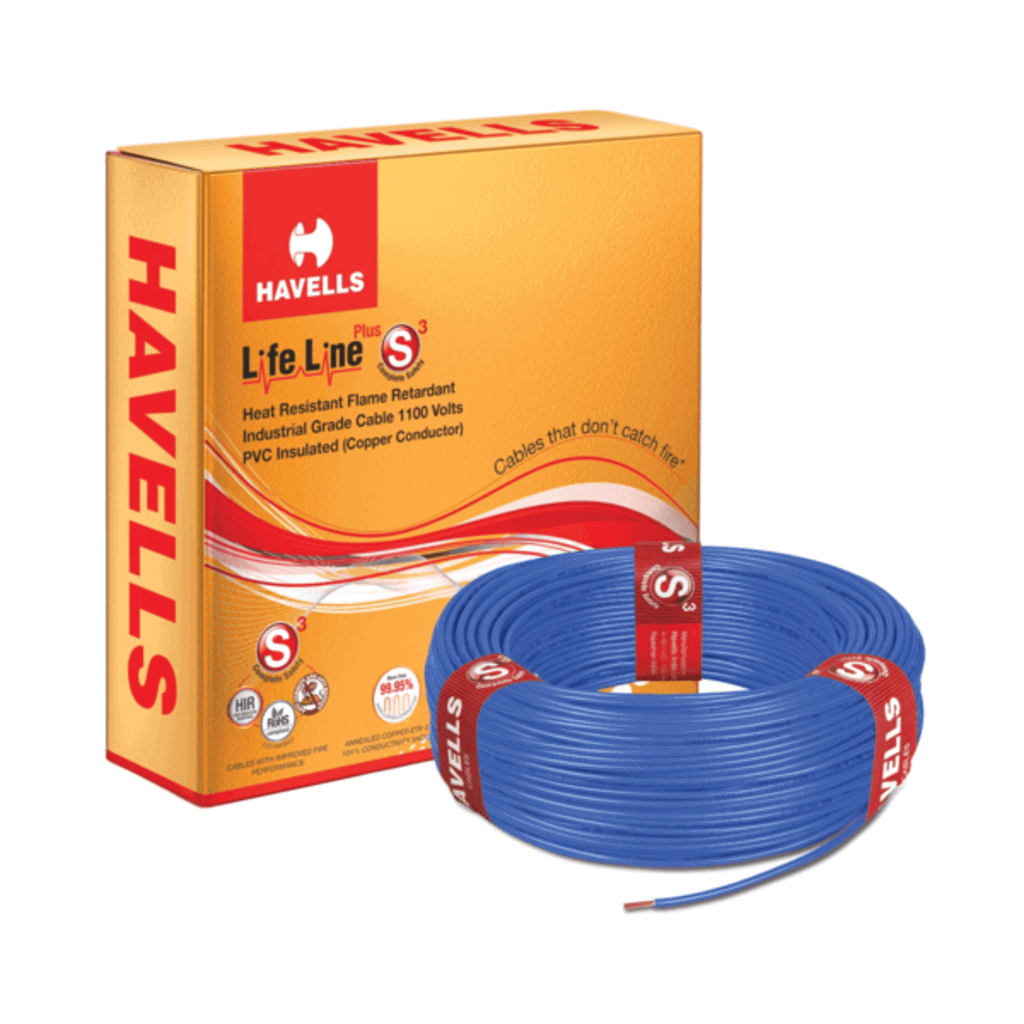

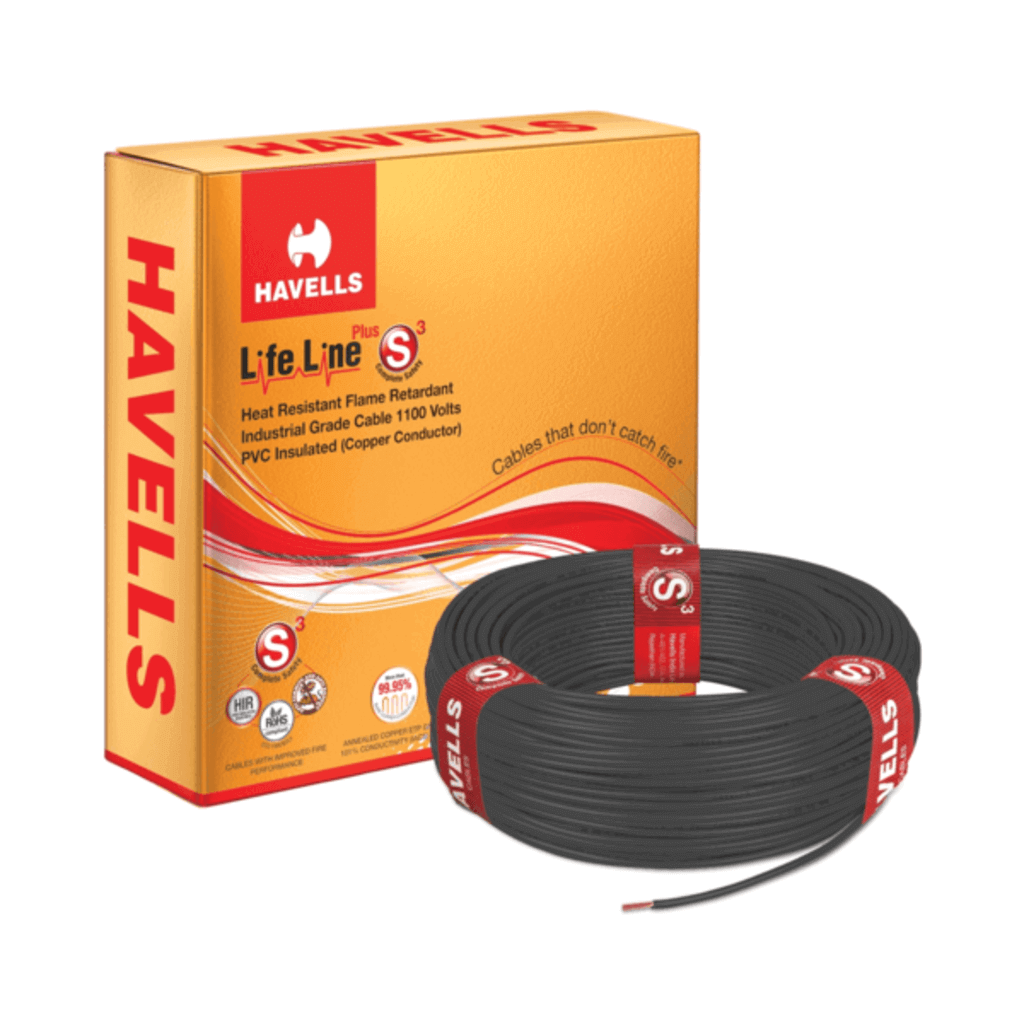

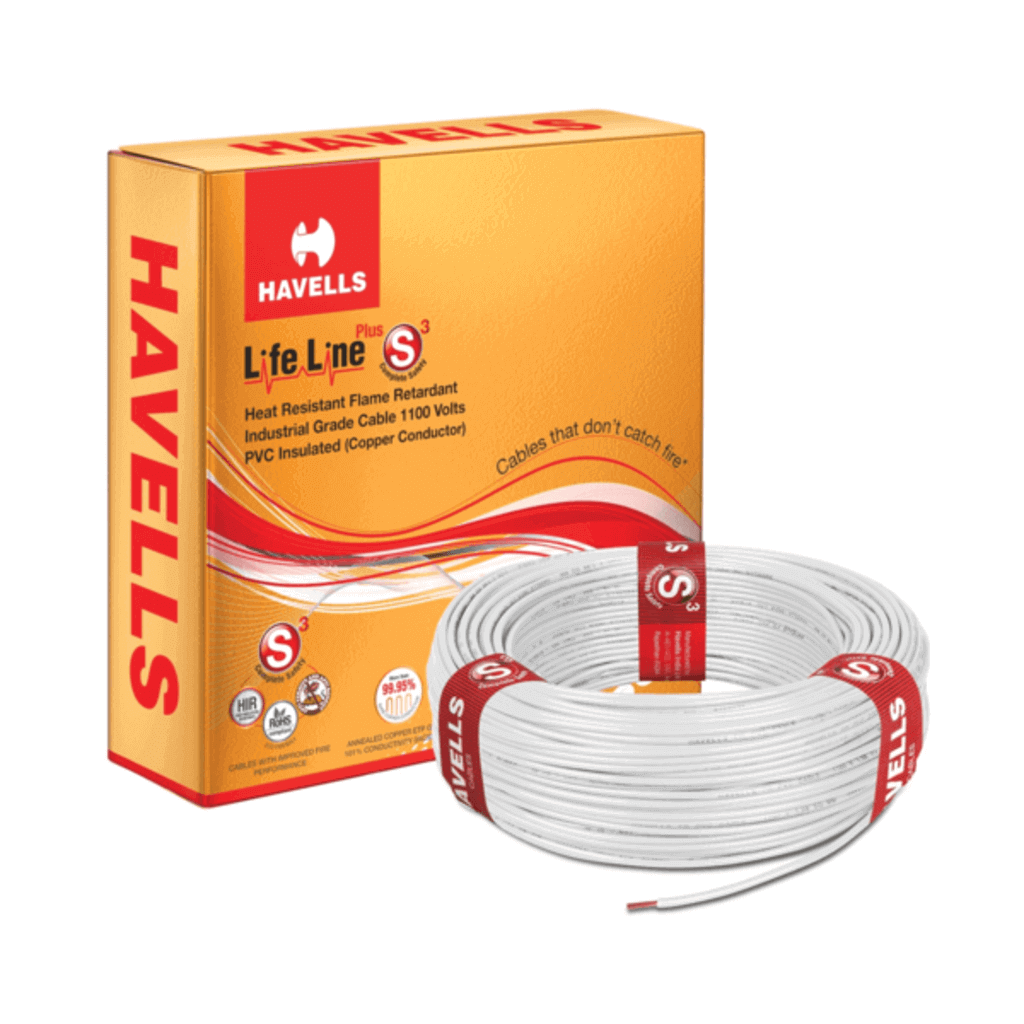

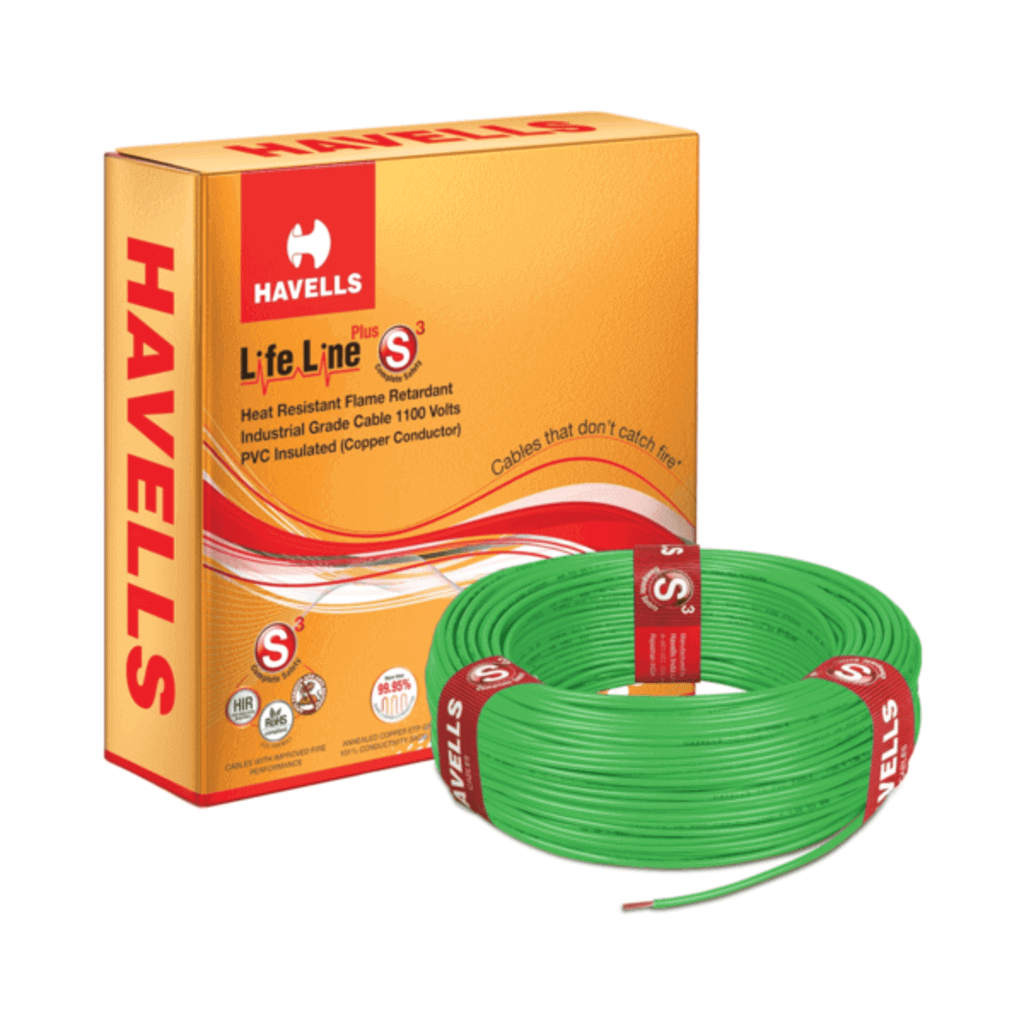

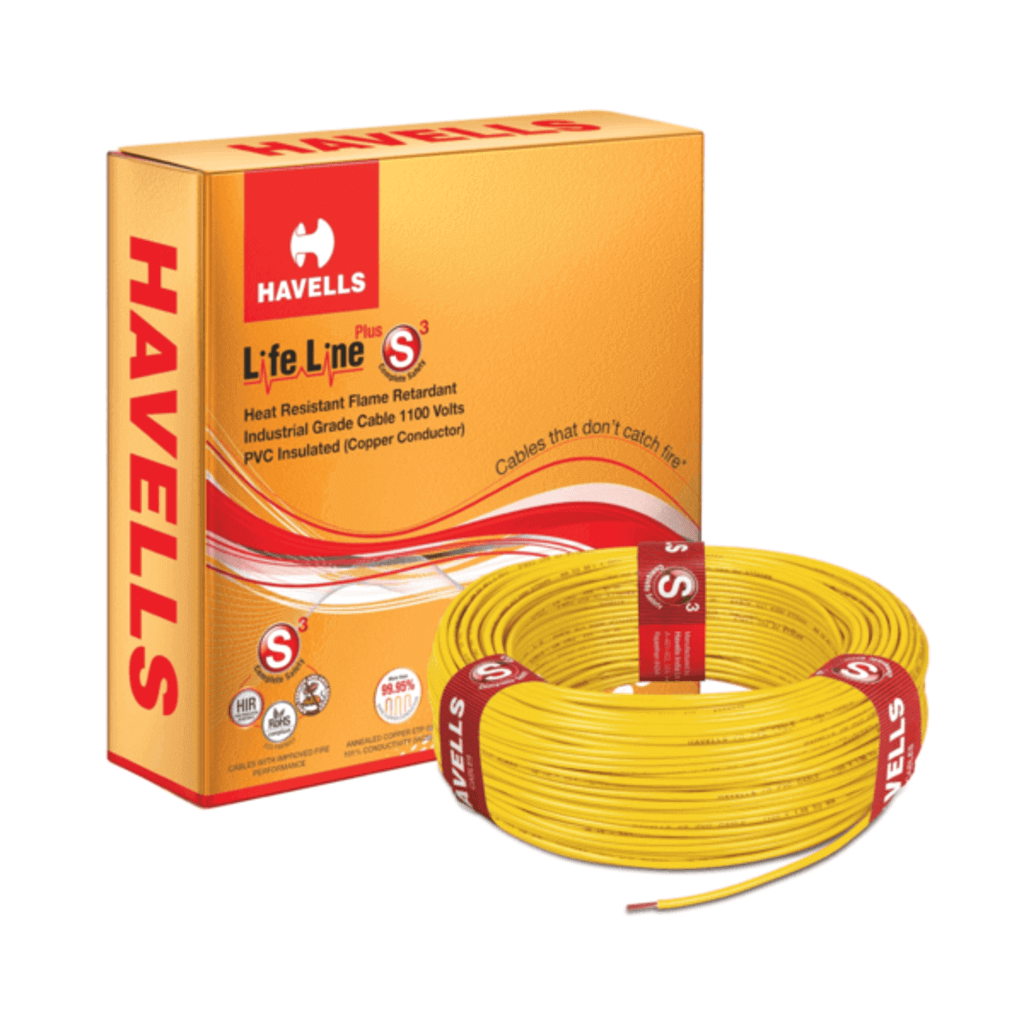

Havells Life Line Plus S3 Single Core Heat Resistant Flame Retardant PVC Insulated Industrial Cables – 90 meters
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High Insulation Resistance
-
In all cables, there is generally leakage of current from the live conductor through the insulation
-
In case of inferior quality of insulation, the current leakage increases
-
This is unsafe and can cause damage to installations as well as become a threat to life
-
Low Leakage Current
-
Havells wires have an allowable current-leakage limit that is 50 times lower than the prescribed international safety norms
-
International safety standards specifies that current leakage limit in hand held equipment is considered to be safe if the value is not more than 0.75 mA
-
Havells cables, with S3 technology, incorporate insulation of high quality which ensures that current leakage level is as low as 0.01 mA, which is much below the prescribed limit
-
Safety from electrical shocks Electric shock occurs when a body-part comes in contact with a bare conductor of poor insulated wire
-
Higher insulation resistance protects against electric shock
-
ROHS Compliant
-
Release of certain harmful substances such as lead, mercury, cadmium and chromium etc. in the plastics/equipment are dangerous to the environment and health
-
European Union has adopted a directive on the restriction of the use of certain hazardous substances in electrical and electronics equipment commonly referred to as Restriction of Hazardous Substances directive or RoH
-
Havells cables with S3 technology are certified by Bureau Veritas for RoHS compliance as per directive 2006/95/EC
-
This ensures that release of hazardous substances are eliminated to provide safety for human health and to give us green environment
-
An initiative for eco friendly environment by Havells.
-
Anti Termite & Anti Rodent
-
Termites and rodents cause extensive damage to paper, wood, plastic etc
-
In case of electrical installation, damaged caused by above pests may lead to short circuit which can become a cause for a major disaster, loss of property and human life
-
Havells cables with S3 technology provide insulation with termite and rodent repulsion properties
-
Certification regarding the above has been obtained from the Central Power and Research Institute (CPRI)
-
Features
-
100% copper conductivity
-
EXtra protection against: (Fire/Overload/Low Voltage/Atmospheric Changes)
-
Specially formulated PVC compound for better insulation
-
Tested for strict parameters
-
Best packaging in the industry
-
Application
-
Energy Cables for Internal electrification and power Supply to all electrical operated equipments (eg. Fans/Lights/ Appliances etc).
Product Specification
|
Brand |
Havells |
|
Product Type |
Industrial Cables |
|
Model | Nominal Area (Sq.mm) | Colour |
WHFFDNRA1X50 | 0.5 | Red WHFFDNRA1X75 | 0.75 | Red WHFFDNRA11X0 | 1 | Red WHFFDNRA11X5 | 1.5 | Red WHFFDNRA12X5 | 2.5 | Red WHFFDNRA14X0 | 4 | Red WHFFDNRA16X0 | 6 | Red WHFFDNYA1X50 | 0.5 | Yellow WHFFDNYA1X75 | 0.75 | Yellow WHFFDNYA11X0 | 1 | Yellow WHFFDNYA11X5 | 1.5 | Yellow WHFFDNYA12X5 | 2.5 | Yellow WHFFDNYA14X0 | 4 | Yellow WHFFDNYA16X0 | 6 | Yellow WHFFDNBA1X50 | 0.5 | Blue WHFFDNBA1X75 | 0.75 | Blue WHFFDNBA11X0 | 1 | Blue WHFFDNBA11X5 | 1.5 | Blue WHFFDNBA12X5 | 2.5 | Blue WHFFDNBA14X0 | 4 | Blue WHFFDNBA16X0 | 6 | Blue WHFFDNKA1X50 | 0.5 | Black WHFFDNKA1X75 | 0.75 | Black WHFFDNKA11X0 | 1 | Black WHFFDNKA11X5 | 1.5 | Black WHFFDNKA12X5 | 2.5 | Black WHFFDNKA14X0 | 4 | Black WHFFDNKA16X0 | 6 | Black WHFFDNGA1X50 | 0.5 | Green WHFFDNGA1X75 | 0.75 | Green WHFFDNGA11X0 | 1 | Green WHFFDNGA11X5 | 1.5 | Green WHFFDNGA12X5 | 2.5 | Green WHFFDNGA14X0 | 4 | Green WHFFDNGA16X0 | 6 | Green WHFFDNWA1X50 | 0.5 | White WHFFDNWA1X75 | 0.75 | White WHFFDNWA11X0 | 1 | White WHFFDNWA11X5 | 1.5 | White WHFFDNWA12X5 | 2.5 | White WHFFDNWA14X0 | 4 | White WHFFDNWA16X0 | 6 | White |
|
Series |
Life Line Plus S3 |
|
Cable Length |
90 Meter |
|
Core Type |
Single |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
1 Core Industrial Cables 90 Meter |
Manufacturer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Packer Details |
Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com |
Country of Origin |
India |
