SKU # 1000136617

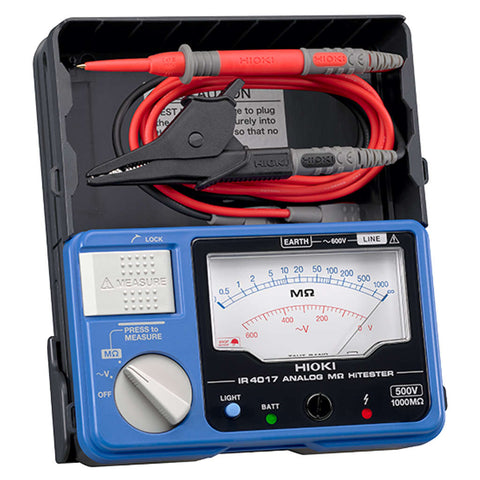

Hioki Analog Insulation Tester IR4017

Hioki Analog Insulation Tester IR4017

Visit the Hioki Store

₹ 16,780.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments

  • The IR4017-20 is a single-range, 500 V/1000 MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing

  • Single range testing voltage of 500 V

  • Test insulation resistance up to 1000 MΩ

  • Built tough to withstand a 1-meter drop onto a concrete floor

  • Bright LED luminous scale

  • Check for live circuits and battery status

  • Integrated hard case for quick and easy storage without disconnecting the leads

ProductSpecification

Brand

Hioki

Product Type

Insulation Tester

Product Model

IR4017

Rated Output Voltage

500 V DC

Effective Maximum Indicated Value

1000 MΩ

Accuracy 1st Effective Measuring Range

±2 % of scale length, 1 M to 500 MΩ

Lower Limit Resistance

0.5 MΩ (measurement resistance value to maintain testing voltage)

Overload Protection

600 V AC (10 sec.)

AC Voltage Range

0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy,
500 kΩ or more input resistance

Other Functions

Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge

Power Supply

LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load)

Included Accessories

Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1

Dimensions (W x H x D)

159 x 177 x 53 mm

6.26 x 6.97 x 2.09 Inch

Weight

610 g / 21.5 oz

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) L x B x H

22.9 x 17.8 x 7.6

Unit Of Measurement

1 Piece

Weight

0.650 kg

Generic Name

Analog Insulation Tester

Packer Details

Hioki

Unit No. 123 & 124, 1st Floor,

Suncity Business Tower, Golf Course Road,

Gurugram - 122003, Haryana, India

Phone : 08035948127

Importer Details

Hioki

Unit No. 123 & 124, 1st Floor,

Suncity Business Tower, Golf Course Road,

Gurugram - 122003, Haryana, India

Phone : 08035948127

Country Of Origin

India
