SKU # 1000136614

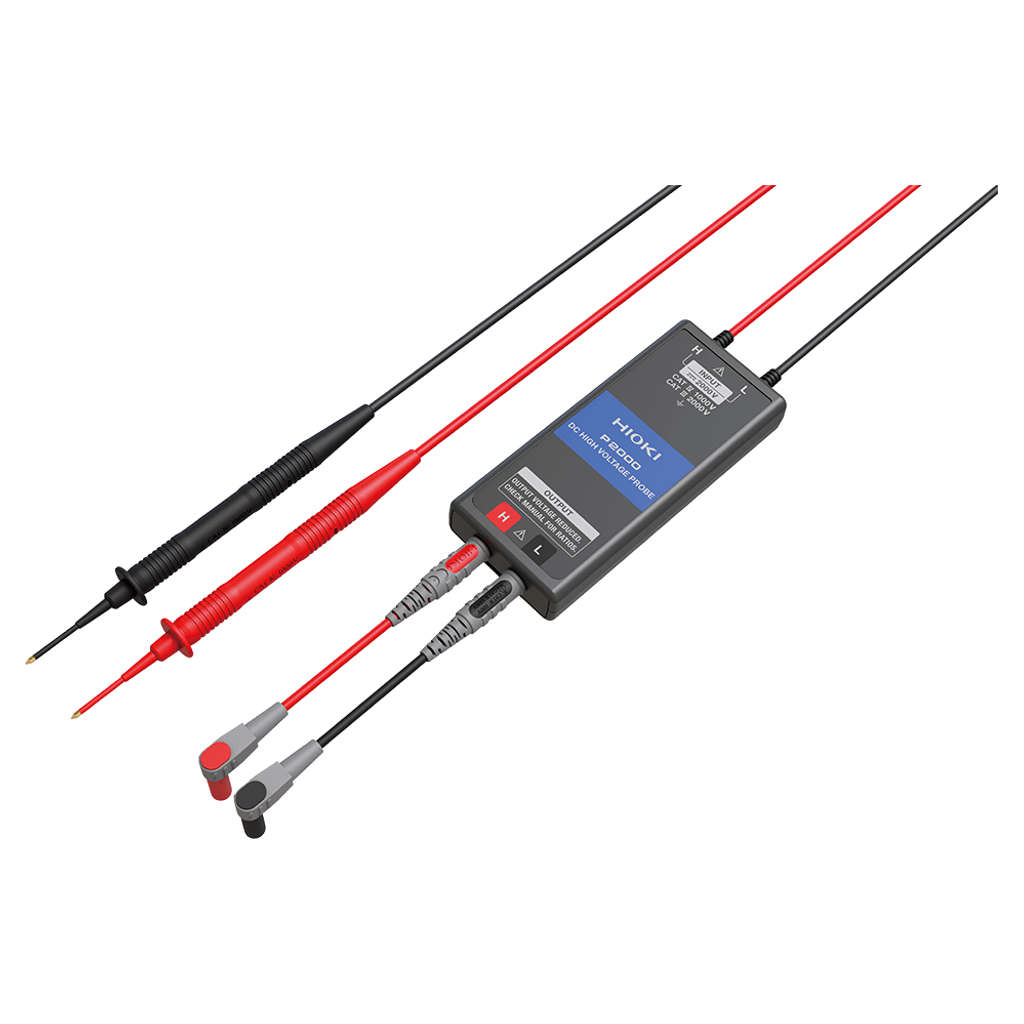

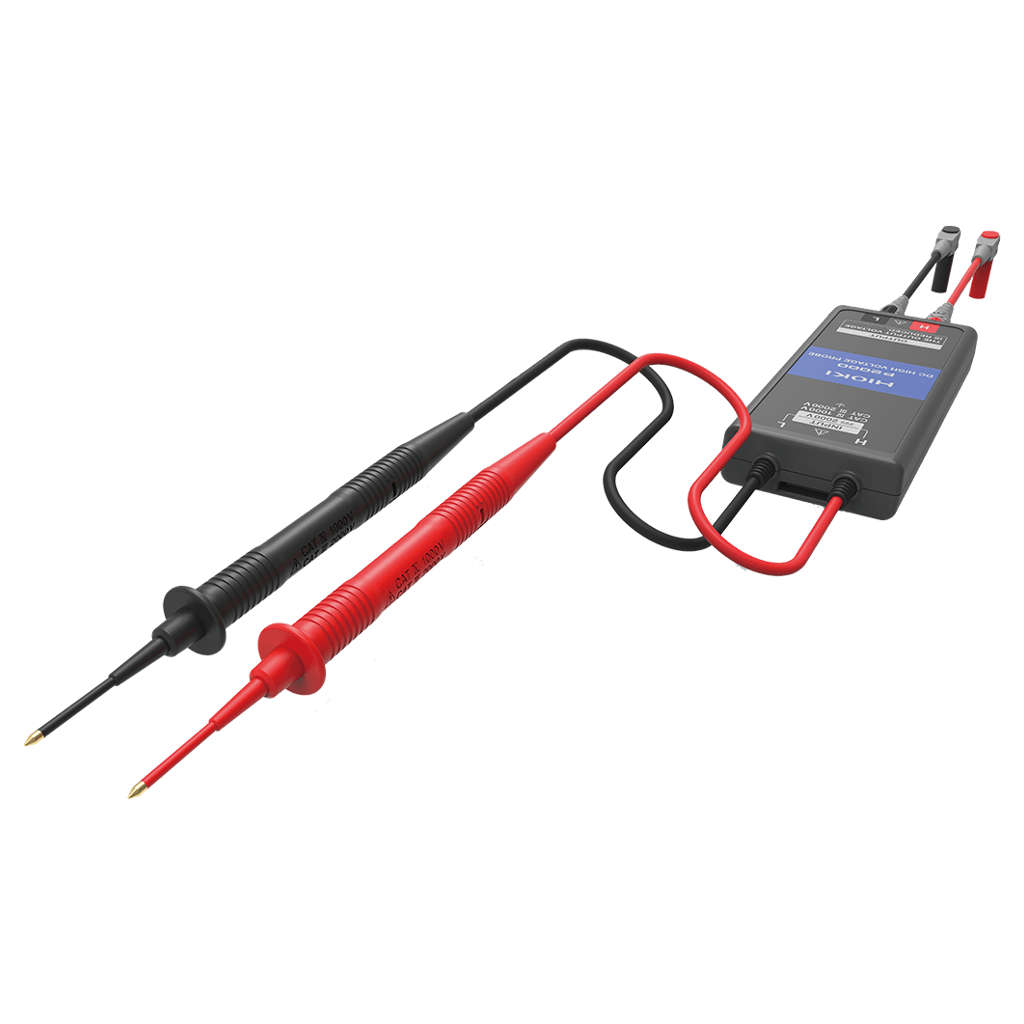

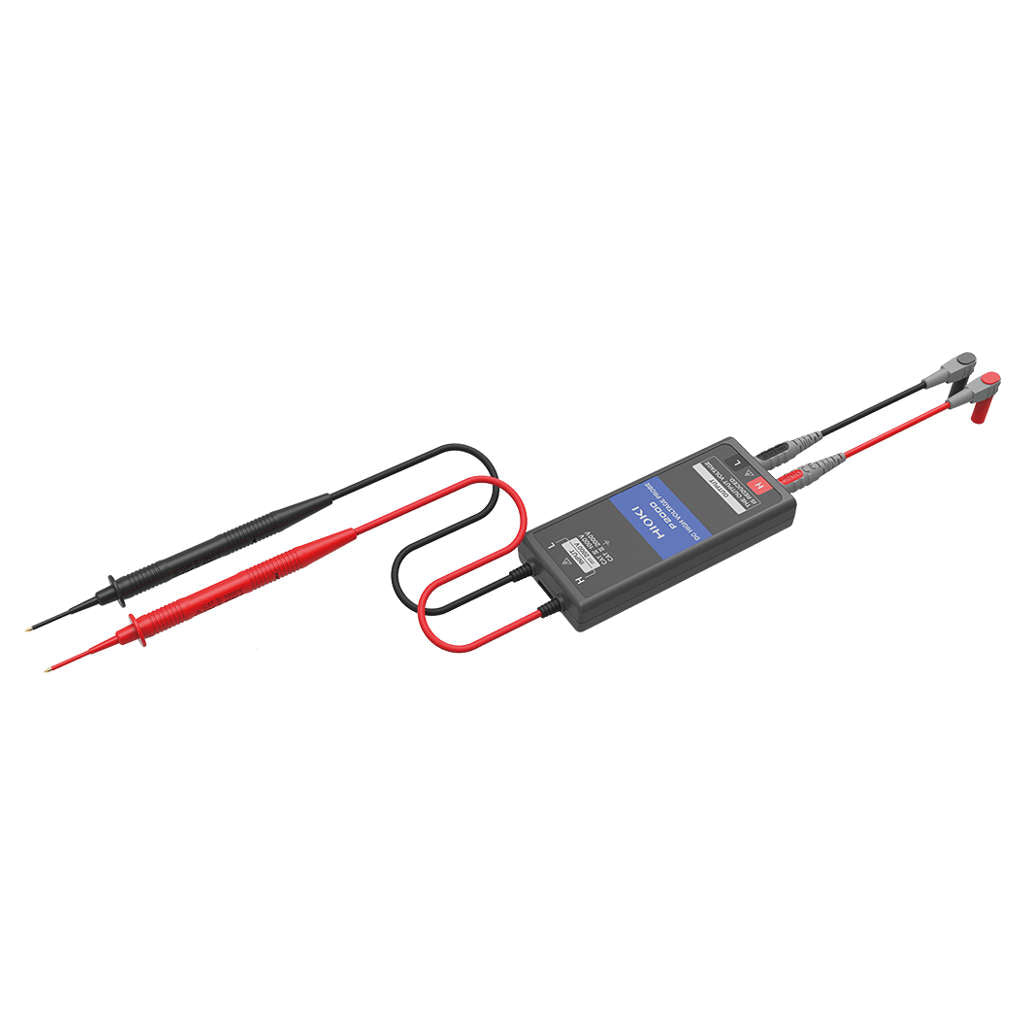

Hioki DC High Voltage Probe P2000
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
The voltage of the solar installations (also known as photovoltaic or PV installations) increases to reduce cost and improve the efficiency of solar equipment
-
As a result, it is important to select measuring instruments that support higher voltage measurement to protect the safety of inspection workers
-
The P2000 enables high voltage measurement up to CAT III 2000 V by simply connecting to a compatible Hioki clamp meter or digital multimeter (DMM)
-
Solar Installations Are CAT III Environments
-
Safety standards categorize measurement locations by measurement category ratings CAT II, CAT III, and CAT IV based on their line-to-ground rated voltage, current capacity, and transient overvoltage
-
According to the standard for Photovoltaic (PV) module safety qualification (IEC 61730-1), PV modules are treated as the overvoltage category III, and an instrument categorized as Measurement Category III is required
-
Solar Installation Voltage Is Increasing
-
Against this backdrop, measuring instruments used in maintenance of solar installations must accommodate high voltages to ensure they can be used safely
-
Using instruments that can accommodate the appropriate measurement category serves to protect workers and equipment from serious accidents such as electric shock and burnout
-
Currently, adoption of 1500 V solar installation is growing, but instruments that can accommodate even higher voltages will be necessary in the future as larger and even more efficient systems enter into use
-
Hioki developed the P2000 to support CAT III 2000 V measurement in response to the near-term prospect of such applications
ProductSpecification
| Brand | Hioki |
| Product Type | High Voltage Probe |
| Product Model | P2000 |
| Maximum Input Voltage | 2000 V DC |
| Maximum Rated Line-To-Ground Voltage | 1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V |
| Input Resistance | 20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open) |
| Overload Protection | 2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) |
| Output Terminal | 4 mm banana terminal |
| Operating Temperature And Humidity Range | Temperature: |
| Storage Temperature And Humidity Range | -30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing) |
| Standards | EN 61010 |
| Included Accessories | Connection Cable Set L4943 ×1, Strap with buckle ×2, Strap ×1, Carrying Case C0205 ×1, Instruction Manual ×1, Operating Precautions ×1 |
| Warranty /b> | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) L x B x H | 30.5 x 15.2 x 15.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.300 kg |
| Generic Name | Probes |
| Packer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Importer Details | Hioki Unit No. 123 & 124, 1st Floor, Suncity Business Tower, Golf Course Road, Gurugram - 122003, Haryana, India Phone : 08035948127 |
| Country Of Origin | India |
