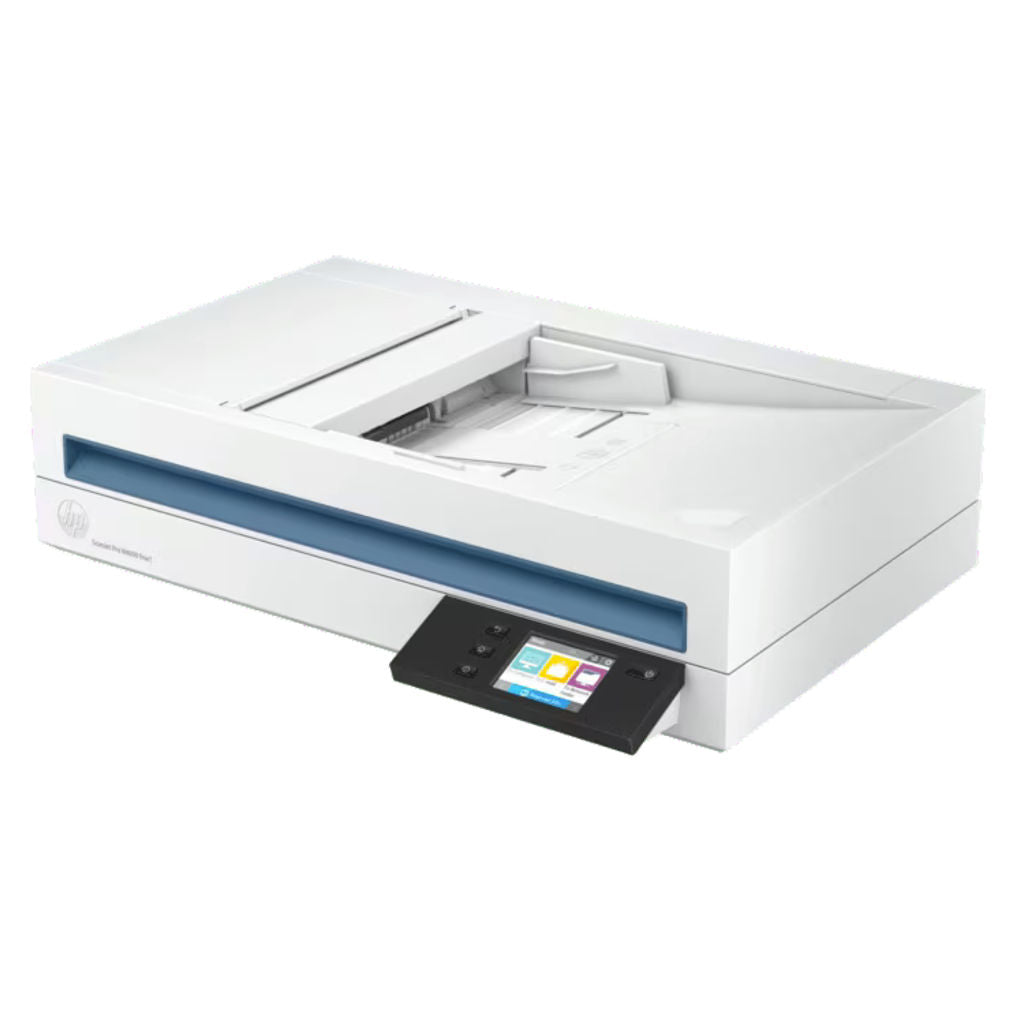

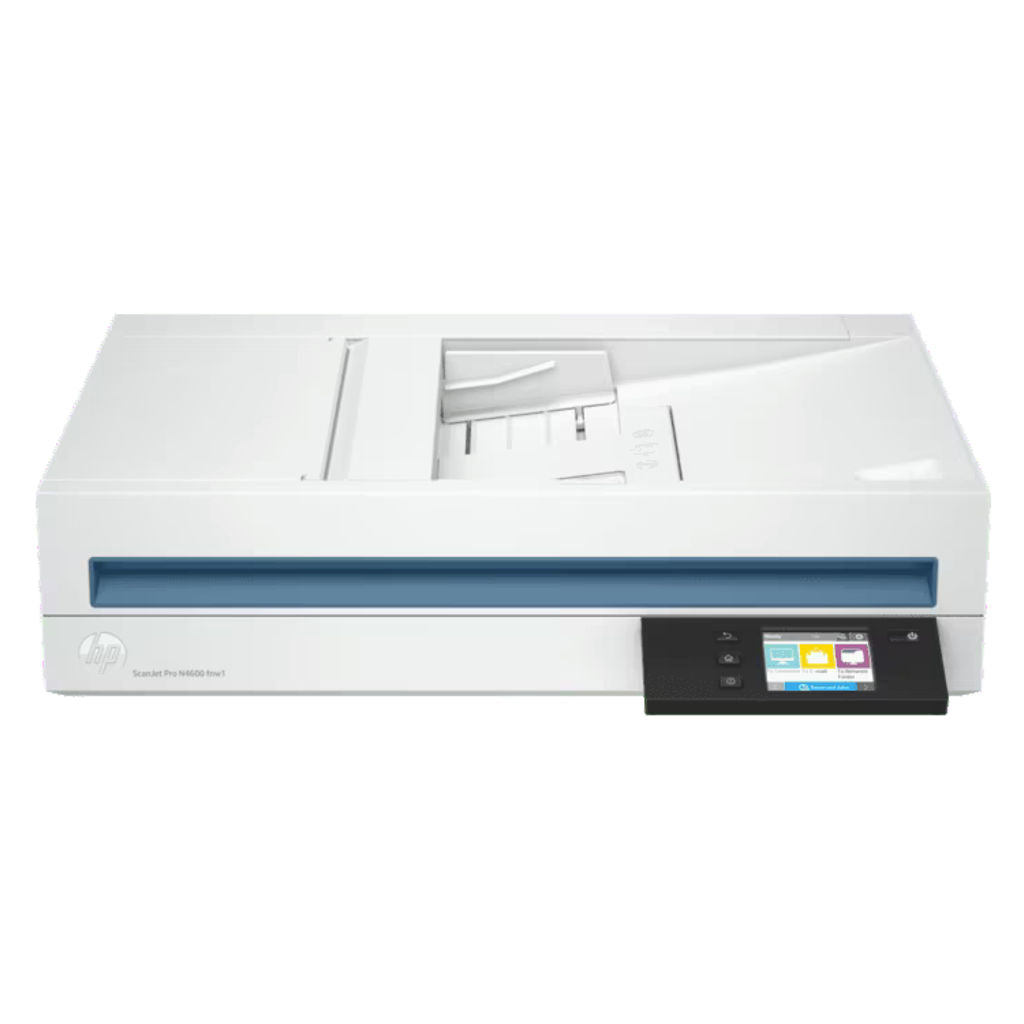

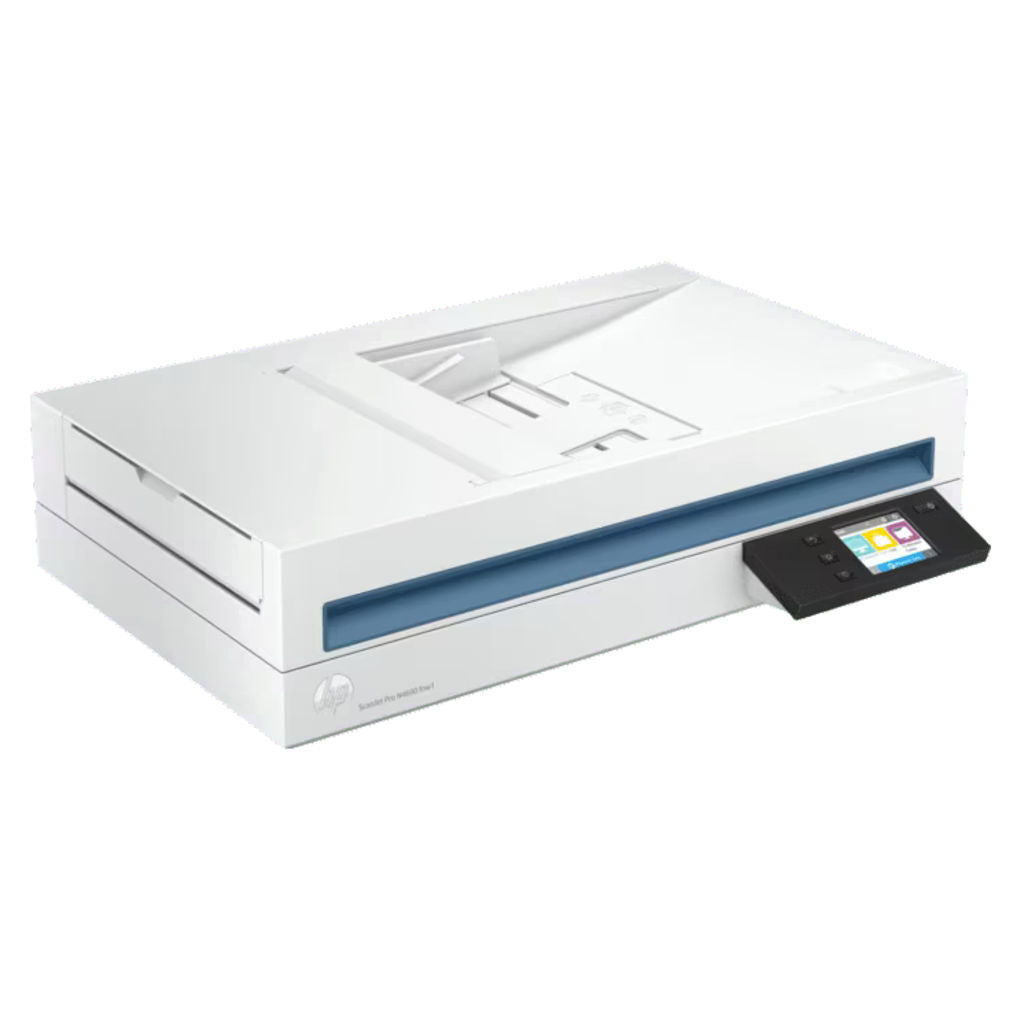

HP ScanJet Pro N4600 Fnw1 Document Scanner 20G07A

Brand

HP

Product Type

Scanner

Product Code

20G07A

Product Model

ScanJet Pro N4600 Fnw1

Control Panel

2.8-in (7.11-cm) Touchscreen, Buttons (Power, Back, Home, Help)

Scanner Specifications

Scanner type ADF; CIS scanning technology; Flatbed; Scan technology: ADF; Flatbed; Contact Image Sensor (CIS); Scan input modes: Scan front-panel function : Scan to Computer, Scan to E-mail, Scan to Network Folder, Scan to Share Folder, Scan to USB Drive and Everyday Scan. HP Scan in Win OS, HP Easy Scan/ICA in Mac OS and THIRD parties applications via TWAIN.; Twain version: Version 2.4; Colour scanning: Yes; Output resolution dpi settings: 75; 150; 200; 240; 300; 400; 500; 600; 1200 ppi; Image scaling or enlargement range: Will not perform any arbitrary scaling

Scan Size

ADF: 216 x 5362 mm Maximum; 89 x 148 mm Minimum; Flatbed: 216 x 356 mm

Scan Speed2

Up to 40 ppm/80 ipm (b&w, gray and color, 300 dpi)

Scan Resolution

Optical Up to 600 dpi (color and mono, ADF); Up to 1200 dpi (color and mono, flatbed); Hardware: Up to 600 x 600 dpi (color and mono, ADF); Up to 1200 x 1200 dpi (color and mono, flatbed)

Scan File Format

For text and image pages : PDF, JPEG, PNG, BMP, TIF, Text(TXT), Rich Text(RTF), SEARCHABLE PDF, PDF/A, Word(DOC), Word(DOCX), Excel(XLS), Excel(XLSX), CSV

Scanner Advanced Features

One pass duplex scanning; Multi-feed detection sensor; Configurable Scan shortcuts with HP Scan (included): OCR; Auto exposure; Auto threshold; Auto detect colour; Background smooth/removal; Auto detect size; Straighten content; Enhance content; Auto orient; Multicolour dropout; Edge erase; Blank page options: Delete Blank Page, Blank Page Detection Sensitivity, Zonal Blank Detect; Merge pages; Document separation options: Zonal Text Separation, Barcode Separation, Blank Page Separation (Front/Back/Both/Any side selection), Add Page Separator Manually; Auto Feed; Show Viewer After Scan and Post Scan Operations are: Mark the image for Deletion, Rotate option, Move Left/Right, Create/Delete New Selection, Save as Scan Area, Manual Straighten option, Drag and Crop, Undo Options, image - Basic Zoom Slider, Open in Zoom Window(Zoom, Crop, Rotate) ; Background Clean-up options: Clean-up Background, Remove: make white, Smooth: make consistent, Remove Holes, Multi-Streaming; Single zone Selection for Zonal OCR, Barcode and QR Code; PDF options: PDF Security Settings (Applicable for PDF and Searchable PDF), Password Security & Document Permission Settings, PDF – iHQC compression, File Size/Quality Slider; TIFF Compression Options: for Gray or Color: Uncompressed/LZW/Jpeg-Tiff, for BW: Uncompressed/LZW/Tiff G3/Tiff G4; File Name Options: Base Name, Date, Time, Document Counter, Barcode Value, Zonal Text, File name sequence Settings, If File name already exists Actions - Overwrite/Append Date Time Stamp/Prompt for File Name, Intelligent File Naming; Destinations options: Email (Mail Clients, Save Local Copy Option, Local or NW), Folder, Save Folder path, Show Save as Dialog Box, After Saving the File(s) action, Printer/Fax, Plugins available if not already included: SMTP, SFTP, Box and Evernote, SharePoint, SharePoint365, Google Drive, Dropbox, OneDrive, One Drive for Business and more..; Enable Book Scan (Flatbed); Vertical Streak Removal/Detection; Multi Document Scanning; Enable Desktop Icons creation for Scan Profiles/Shortcuts; Shortcut Management: Create new Scan Shortcut, Delete Shortcut, Rename Shortcut, Shortcut Move Up/Down, Shortcut – Save/Undo, Restore Shortcut Defaults-Factory Settings, Import/Export Shortcut; retrieve shortcuts from Scanner without accessing the software on the PC. Configurable Scan shortcuts as standalone (using only the firmware of the scanner) without using the HP Scan Software: Scan to Computer, E-mail, Network Folder, SharePoint, Scan to USB Drive;

Grayscale Levels/Bit Depth

256/24-bit (external), 48-bit (internal)

Duty Cycle

Recommended daily duty cycle: 6000 pages

Auto Document Feeder Capacity

Standard, 100 sheets (80 g/m2)

Connectivity

Standard Ethernet 10/100/1000 Base-T, USB 3.0, WiFi 802.11 b/g/n, WiFi Direct;

Memory

Standard 512 MB

Media Handling

Media Types

Paper (banner, inkjet, photo, plain), envelopes, labels, cards (greeting, index)

Media Size (ADF)

Letter; Legal; Executive; A4; A5; A6; B5; B5 (JIS)

Media Weight (ADF)

45 to 120 g/m2

Compatible Operating Systems

Windows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; Windows Server; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; Linux

Minimum System Requirements

PC: Microsoft Windows (11, 10, 8.1, 7 : 32-bit and 64-bit, 2008 R2, 2012 R2, 2016, 2019); 2 GB available hard disk space, Internet connection, Microsoft Internet Explorer or any browser

Software Included

HP Scan Software, HP Scanner Device Driver, HP WIA scan driver, HP TWAIN scan driver, HP Scanner Tools Utility, ISIS driver

Print Server Specifications

Security Management

Power button to on/off

Operating Environment

Temperature: 17.5 to 25°C Humidity: 30 to 70% RH

Storage

Temperature: -40 to 60°C

Power

Requirements: Input Voltage: 100 to 240 VAC; Consumption: 17.4 watts (Active-Scanning), 7.5 watts (Ready), 1.9 watts (Sleep), 0.06 watts (Auto-Off), 0.06 watts (Manual-Off) ; ENERGY STAR: Yes

Certifications

IEC62368-1:2018, IEC 60950-1:2005 +A1 and all applicable amendments; CSA/UL 60950-1, 2nd edition (2007); EN 60950-1:2006 +A11 +A1 +A12+A2; EAC safety; Canada cUL CoC; China CCC; European Union CE; Kenya PVOC; Kuwait TER; Nigeria SON; Saudi Arabia SASO; South Africa NRCS; Taiwan BSMI; Ukraine safety approval Electromagnetic compatibility: Class B Emissions; CISPR 32:2015 (International); European Union EMC Directive 2004/108/EC, EN 55032:2015 (CE mark); China GB9254-2008 (CCC); Taiwan CNS13438:2006 (BSMI); USA CFR47 Part 15, Subpart B (FCC); ICES-003:2020 Issue 7 (Canada); Australia C-tick (includes New Zealand); KN 22 and Korea KCC; EAC EMC Certificate; Ukraine EMC approval; EN 61000-3-2:2014 (harmonics); EN 61000-3-3:2013 (flicker); Immunity 505035:2017 CECP; SEPA; IT ECO Declaration; EPEAT Silver registered

What's In The Box

20G07A HP ScanJet Pro N4600 fnw1 Scanner; Install guide; Supporting flyers; Cushions; USB cable; Power adapter; Power cords

Product Dimensions (W X D X H)

Minimum: 536.5 x 325.4 x 133.3 mm; Maximum: 536.5 x 442.6 x 387.42 mm

Package Dimensions (W X D X H)

645 x 245 x 499 mm

Product Weight

6.1 kg

Package Weight

7.8 kg

Warranty

1 Year

Dimension (CM) - L x B x H

397 x 248 x 242

Unit of Measurement

1 Piece

Weight

4.5 kg

Generic Type

Document Scanner

Manufacturer Details

Wistron Infocomm(Chongqing) Co.Ltd. No.18-9.Baohong Avenue, Wangjia Sub-District,Yubei District, Chongqing (China)

Packer Details

Wistron Infocomm(Chongqing) Co.Ltd. No.18-9.Baohong Avenue, Wangjia Sub-District,Yubei District, Chongqing (China)

Importer Details

HP India Sales Pvt. Ltd., 24 Salarpuria Arena, Hosur Main Road, Adugodi, Bangalore-560030

Country of Origin

China
