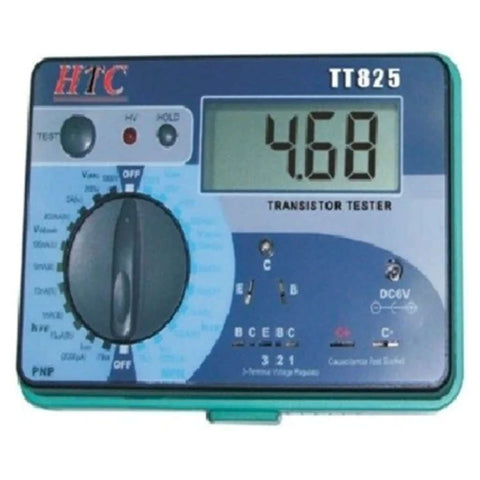

HTC Transistor Tester TT-825

HTC Transistor Tester TT-825

Visit the HTC Store

₹ 2,970.00

Quantity



Pack Qty : 1.0

Delivery Availability

Offers and Coupons

Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

3½ Digit LCD Display
2000 Counts
Data Hold Function
Auto Range
Measuring Forward Voltage, Reverse Voltage,Forward Satuaration Voltage Drop, Amplification Factor, Reverse Leakage Current Of Various Crystal Diode, Audios,Sillicon Controlled Rectifier(SCR), Field Effect Transister(FET)
Measuring Rated Working Voltage Of Chemical Capacitor, Ethylene Capacitor,A Capacitor,Leaded
Multilayer Ceramic Capacitor ,High Voltage Locker
Measuring Protection Voltage Of Of Varistor
Measuring Starting Voltage Of Neon Bulb,Neon Lamp
Measuring Constant Voltage Value Of 78,79 Series Three-Pole Circuit
Standard Accessories: Hard case (Meter Enclosed),Test Leads, Manual
Product Code: TT-825
Model No: HTC-F7
Dimension: 150(H) x 100(W) x 70(D)mm
Warranty: As Per Manufacturer Terms And Condition

Product Specification

Basic Functions	Range	Basic Accuracy
V(BR)	1000V	Breakdown of Current <1mA
Vcc(set)	200V	Breakdown of Current <1mA
Vcc(set)	2A(Ic)	Ic approx 2000mA, Ib approx 200mA
HFE	800mA(Ic)	Ic approx 800mA, Ib approx 80mA
	100mA(Ic)	Ic approx 100mA, Ib approx 100A
	10mA(Ic)	Ic approx 10mA, Ib approx 1mA
	10mA(Ib)	Ib approx 10mA
Iceo	10mA(Ib)	Lb approx 1mA
	10mμ(Ib)	Lb approx 0.01mA
	2000μA	Vcc approx 27V
Voltage of Thread-end	78xx/79xx	Ui approx 27V

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	Transistor Tester
Manufacturer Details	HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002
Packer Details	HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002
Country of Origin	India
