SKU # 1000115471

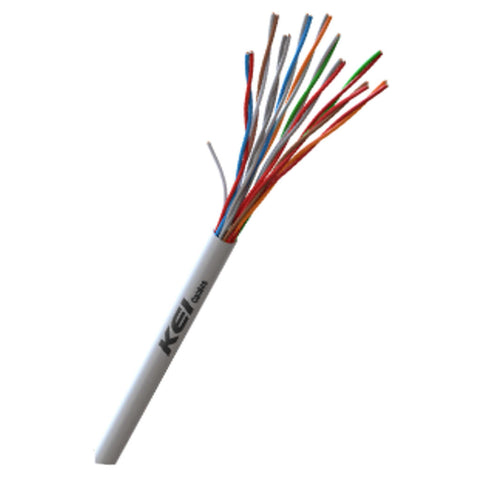

KEI Telephone Switch Board Cables 0.40mm
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
KEI Telephone cables are recommended for use in internal telephone wiring in high-rise buildings, offices, factories, hotels, residential complexes, etc.
-
KEI twisted pair cables are best suited for telephone cabling applications
-
The conductor is made of solid annealed, electrolytic grade high conductivity bare copper
-
The conductor is insulated with special grade high – density polyethylene with colour coding
-
The insulated cores are twisted with uniform lay to form pairs and are bunched together in such a manner so as to minimize cross talk
-
The cable is jacketed with a grey colour specially formulated Fire Retardant (FR) PVC with high oxygen and temperature index
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
Brand | KEI |
Product Type | Telephone Cable |
No Of Pairs | 1 Pair 2 Pair 3 Pair 4 Pair 5 Pair 10 Pair |
Size | 0.40 mm |
Electrical Parameters | |
Conductor Resistance(Maximum) | 143.0 0hm/km at 200ºC |
Mutual Capacitance(Maximum) | 50 nf/km |
Insulation Resistance in Air(Minimum) | 10,000 M-ohm/km |
Capacitance Unbalance Pair to Pair(Maximum) | 250 Pf/km |
Construction Parameters | |
Conductor (Solid Annealed Bare Copper) | 0.4 mm diameter(nom.) |
Insulation Material | Extruded High-Density Polyethylene |
Insulation Thickness (Avgerage) | 0.17 mm (for 0.4 mm Cables) |
Diameter of Insulated Conductor(Maximum) | 0.74 mm (for 0.4 mm Cables) |
Rip Cord | Nylon cord placed under Jacket for easy Jacket Stripping |
PVC Jacket | Extruded FR PVC Compound ( Grey Colour ) |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) LxWxH | 21.3 x 15.5 x 20 |
Unit Of Measurement | 1 Piece |
Weight | 1 kg |
Generic Name | Telephone Switch Board Cable |
Manufacturer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
Packer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
Country Of Origin | India |
