SKU # 1000120731

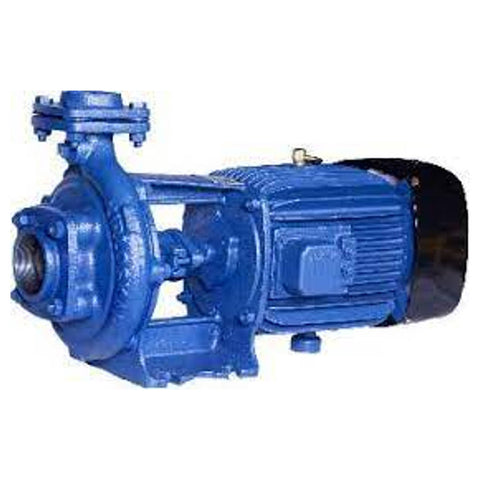

Kirloskar MonoBloc Pump 3Phase 5HP KDS-515+*

Kirloskar MonoBloc Pump 3Phase 5HP KDS-515+*

Visit the Kirloskar Store

₹ 31,907.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within a Day

Offers and Coupons

Biggest Festive Deals

Coupon Image

Use the coupon codes purchase of ₹5,000/- & above

Above ₹5,000 Use
MS150
Above ₹10,000 Use
MS200
Above ₹15,000 Use
MS250
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Flatter Efficiency Curve

  • Minimum variations in efficiency during entire operating range increases the utility of pumpset for variable conditions

  • Wide Voltage Design

  • The motor is designed to withstand wide voltage fluctuations from 300 to 440 volts and reduces motor burning in low voltage

  • Design to Prevent Overloading

  • Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown

  • Replaceable Wearing Parts

  • All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump

  • Dynamically Balanced Rotating Parts

  • Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained

  • CED – Cathodic Electro Deposition

  • CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life

  • All major CI parts of Kirloskar pumps coming in contact with the water are CED coated

  • Automatic Air Release

  • Eliminating the necessity of operating air release cock and ensures swifter and
    smoother operations

  • High Efficiency And Energy Saving Design

  • Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings

  • Application

  • Air conditioning and refrigeration system.

  • Cooling Towers

  • Clear water handling at high pressure in Industries

  • Irrigation in horticulture & agriculture

  • Fire fighting system

Product Specification

Brand

Kirloskar

Product Type

Monobloc Pump

Product Model

KDS-515+*

Power

3.7 kW

5 HP

Pipe Size (mm)

Suction : 100

Delivery : 100

Rated Voltage

400

No Of Phase

Three Phase

Impeller

Cast Iron

Delivery Casing

Cast Iron

Motor Body

Cast Iron

Shaft

Carbon Steel

Shast Sleeve

Bronze(LTB2)

Protection

IP 44

Class If ins

B

Sealing

Glang Packed

Total Head In Meters

Discharge In Litres Per Second

6

32.8

8

31.0

10

28.0

12

24.2

14

19.0

16

12.5

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

24x12x18

Unit of Measurement

1 Piece

Weight

30 kg

Generic Type

Monoblock Pumps

Manufacturer Details

Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in

Packer Details

Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in

Country of Origin

India
