SKU # 1000136687

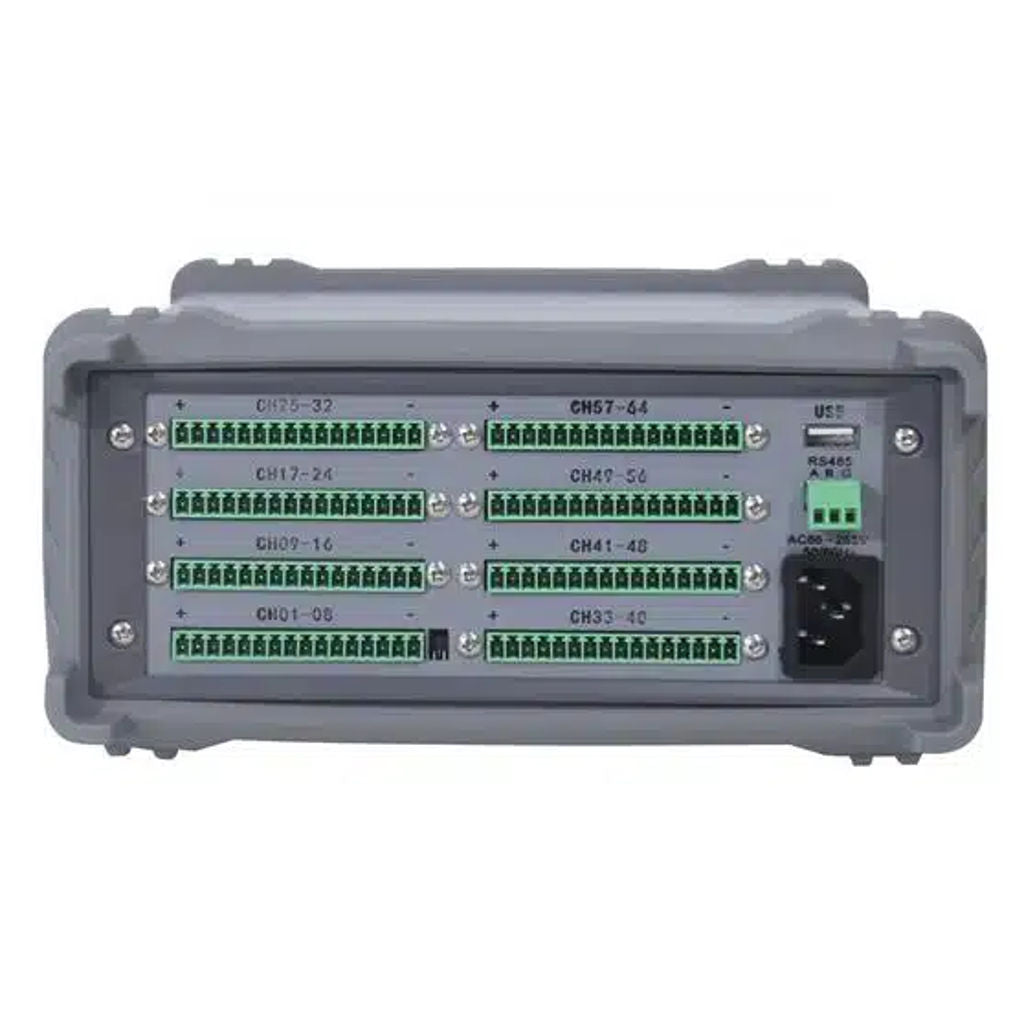

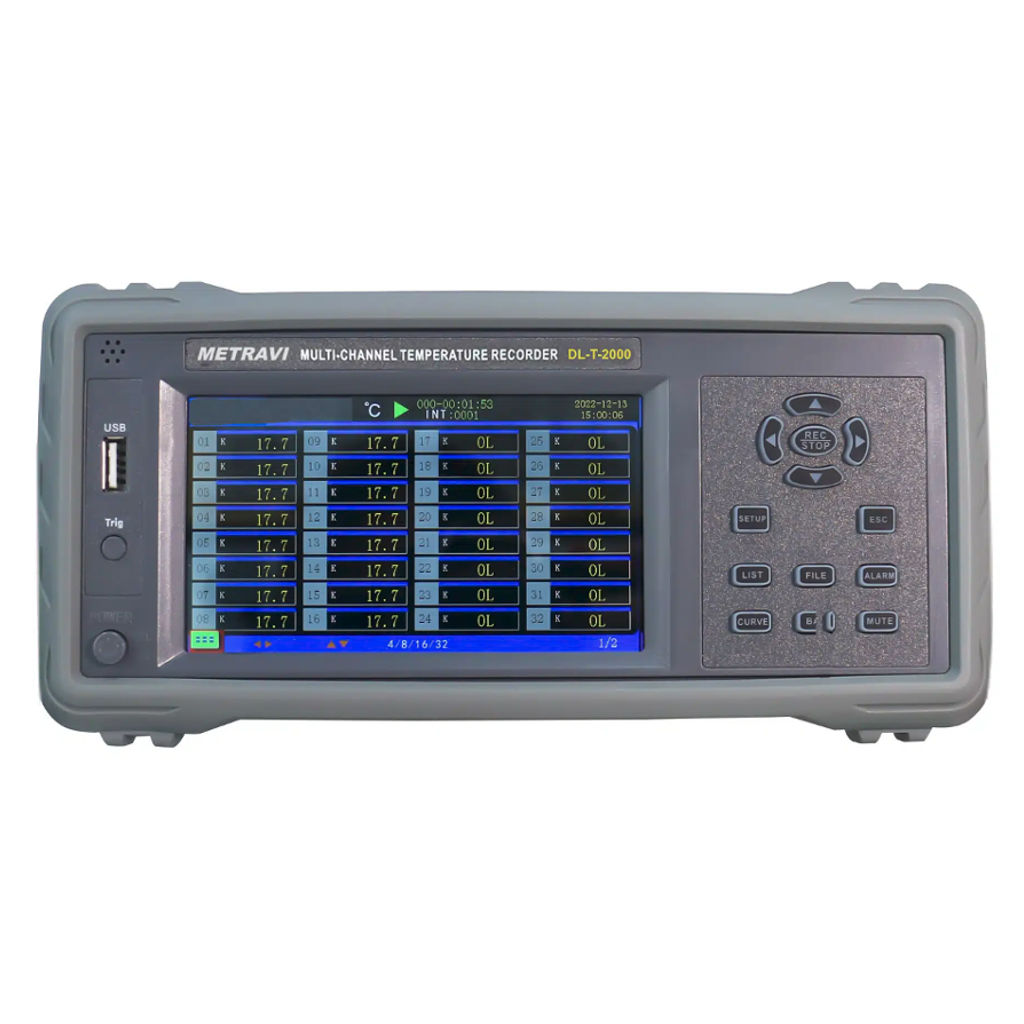

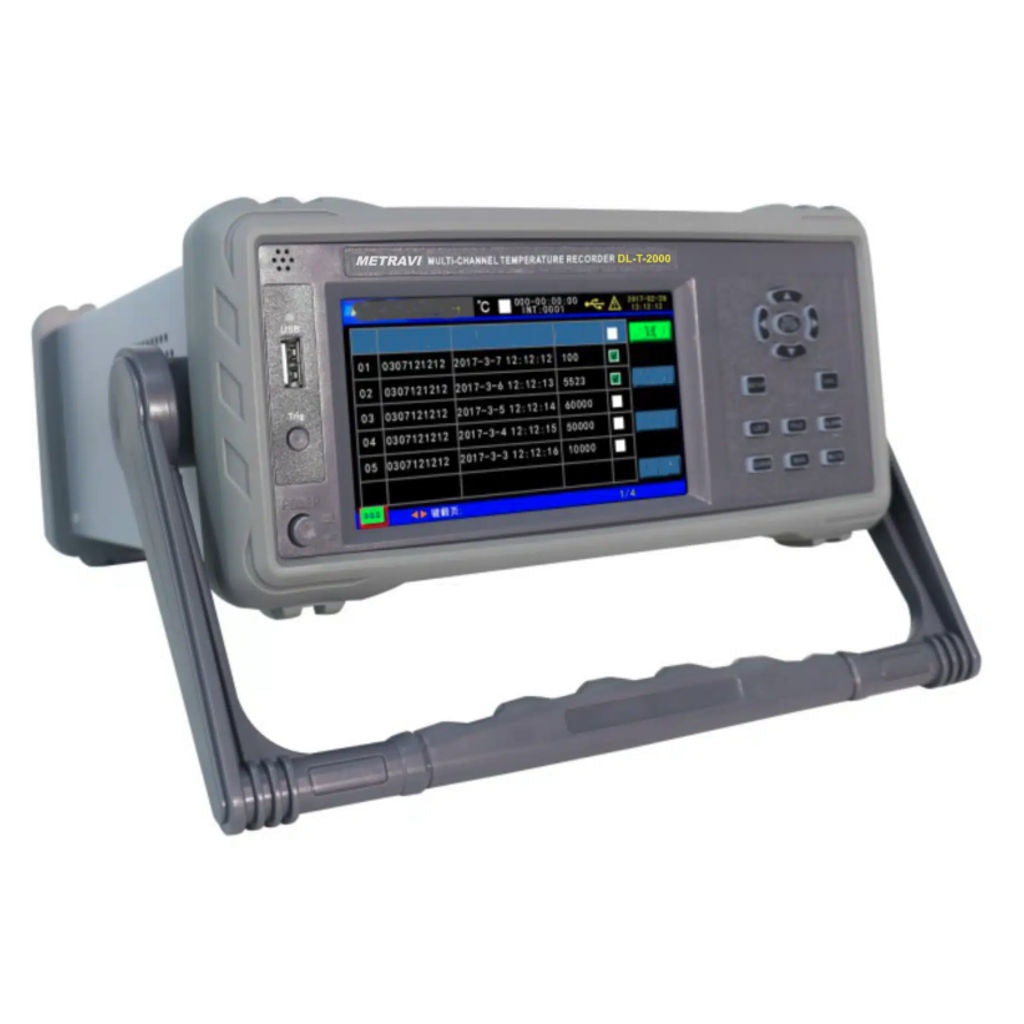

Metravi Multi Channel Temperature Data Logger DL-T-2000

Metravi Multi Channel Temperature Data Logger DL-T-2000

Visit the Metravi Store

₹ 67,480.00

₹ 84,350.00

20% off

Inclusive of 18%
(₹ 12,146.40) GST

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Can be used as a U disk

  • 32 channels displayed simultaneously

  • One-second interval

  • Can record for 97 days

  • One click fast recording

  • List, curve, histogram display

  • Remote Firmware upgrade

  • Strong anti-jamming

  • Record files can be exported or deleted at any time

  • Customizable channel names

  • Export EXCEL files

  • Multistage alarm function

  • Double relay output

  • Can Use 8 Different Thermocouples At The Same Time

  • The Metravi DL-T-2000 Multi Channel Temperature Data Logger uses 32-bit high-speed MCU data processing + 24-bit high-speed AD measurement chip for fast response speed and high precision

  • It is a stable and reliable instrument with multi-interface display, file list, real-time list display, histogram display, real-time/record/analysis curve display, alarm list, system Settings, etc

  • Featuring in-built operation tips, humanised design and easy to understand and simple operation, it supports multiple sensor inputs: K J E T N S R B

  • It comes with a basic measurement accuracy of ±0.2℃+ 2dgt (without sensor), cold end compensation accuracy: 0.5℃, an independent error correction per channel Y=KX+B, each channel can be set to use different thermocouple types

  • The record files can be selected to delete and export to USB flash drive or PC directly

  • You can export EXCEL files

  • USB and RS485 communication ports are standard

  • The Metravi DL-T-2000 comes in a modular design, each module consisting of 8 channels, supporting a maximum of 64 channels, with automatic capacity expansion identification

  • Features a multi-level alarm indicator, HH, H, L, LL alarm settings and alarm indicator, and has the function of historical alarm record

ProductSpecification

Brand

Metravi

Product Type

Data Logger

Product Model

DL-T-2000

Display

5' HD Colour LCD Touchscreen (854X480 pixels)

Display Forms

Bar chart, current alarm (historical alarm), curve (historical curve), file record list, Real-time list

Number Of Modules

1(standard), 8 (Optional)

Number Of Channels Per Module

8

Number Of Channels

64 (Optional), 8(standard)

Channel Name

Customisable

Sensors

Thermocouple (K J E T N S R B)

Thermoelectric Couple

2mK TC

Measurement Range

-200 ~ 1820°C(TC dependent)

Resolution

0.1°C

Sampling Rate

0.1s/1s

Accuracy

±0.2%

Cold Junction Compensation

0.5°C

Error Correction

Y=kX+B

Recording Interval

1s to 9999s

Recording Duration

Up to 97 Days

Recorded File

64 x 130000

Isolation Between Channels

AC/DC up to 350V, High anti-interference ability

Alarm

Audio alarm (can be muted)

Alarm Setting

Multi level ( HH,H,L,LL)

Control Output

2 independent relays

Interface

USB & RS485

Data Export

USB U DISK

Data Export Format

Excel

Firmware

Remote upgradable

Processor

32 bit MCU with 24 bit AD Converter

Power Supply

AC85-265V±10%

Frequency

50/60 Hz

Power Consumption

<10W

Simultaneous Display

32 channels

Size

220 x 293 x 106 mm

Weight

About 3 kg

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

22 x 293 x 10.6

Unit Of Measurement

1 Piece

Weight

0.3 kg

Generic Type

Data Logger

Manufacturer Details

Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India

Packer Details

Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India

Country Of Origin

India
