SKU # 1000136698

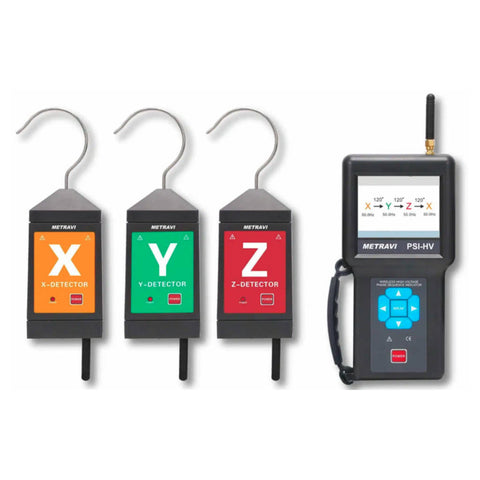

Metravi Wireless High Voltage Phase Sequence Indicator PSI-HV
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
The Metravi PSI-HV set is especially designed for high voltage line and switchgear (middle cabinet, ring network, cabinet, etc) nuclear phase
-
The instrument especially is useful for solving the traditional nuclear phase device voltage grade limit problem
-
With fully-realised, automatic Phase Detection from 10V to 500kV, you do not need to purchase multiple phase detectors based on voltage grade
-
The detector not only detects Phase Sequence, but also incorporates functions for testing Phase, Frequency, Phase Frequency and so on, along with Electricity Testing & Line Circuit Voltage display
-
The 3.5 inch colour LCD screen displays Phase, Frequency, Phase Sequence and Phase Detecting readings all on the same screen, simultaneously
-
There is also a clear, dynamic vector diagram available
-
When line voltage exceeds 110kV, the non-contact method is to be used for phase detection
-
Voice prompts, monitoring software with online real-time monitoring, historical data reading, viewing, saving, printing and query, vector graph indication and phase indication – all these functions make it an ideal instrument
ProductSpecification
Brand | Metravi |
Product Type | Sequence Indicator |
Product Model | PSI-HV |
Display | 3.5 inch LCD, Colour |
Power Source | Battery Operated |
Phase Detection Method | Contact mode, Non-contact mode |
Phase Detection Voltage | 10V~500kV |
Phase Detection Distance | 200m |
Phase Range | 0°~360° |
Frequency Range | 45.0Hz~65.0Hz |
Transmitting Frequency | 433MHz |
Data Storage | 200 groups |
Automatic Shutdown | after 15 mins. of non-operation |
Battery Type | Rechargeable |
Battery Capacity Of Host | 2600mAh, 3.7V |
Battery Capacity Of Detector | 1000mAh, 3.7V |
Phase Detection In Phase | 20°~20° |
Phase Detection Out Phase | 100°~140, 220°~260° |
Rated Current Of Host | 150mA |
Rated Current Of Detector | 30mA |
Accessories | Cabinets Test Line 3pcs, Cloth Bag, Detector 3 pcs, Inspection Cable, Insulation Rod 3pcs, Meter, Probe 3pcs, Probe Hook 3 pcs, USB Date Cable/ Charge Cable |
Dimension | 195 x 100 x 45 mm |
Warranty | 1 Year |
OtherDetails
Dimension (CM) - L x B x H | 195 x 10 x 45 |
Unit Of Measurement | 1 Piece |
Weight | 4 kg |
Generic Type | Phase Sequence Indicator |
Manufacturer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Packer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Country Of Origin | India |
