SKU # 1000136541

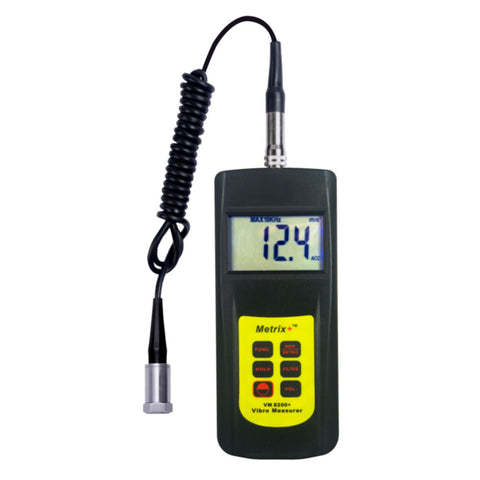

Metrix Plus Digital Vibration Meter VM 8200+

Metrix Plus Digital Vibration Meter VM 8200+

Visit the Metrix Plus Store

₹ 23,020.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • Digital Vibration Meter with measuring range upto 200mm/s and wide frequency range in acceleration mode

  • Features

  • Individual high-quality accelerometer for accurate and repeatable measurement

  • Used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines

  • Specially designed for easy on-site vibration measurement of all rotating machinery for quality control, commissioning and predictive maintenance purposes

  • Lightweight and easy to use

  • Wide frequency range in acceleration mode

  • Applications

  • A vibration meter is used in manufacturing for machine condition monitoring, product testing and quality assurance

  • A vibration meter also can be used in civil engineering to measure the vibration of structures such as buildings, roads and bridges

  • Measuring Principle

  • Vibration Meter employs a piezoelectric transducer to measure vibrations of a material and displays it in one or more of displacement, velocity or acceleration values for analyzing

ProductSpecification

Brand

Metri+

Product Type

Vibration Meter

Product Model

VM 8200+

Display

4-digit backlit LCD

Transducer

Piezo electric accelerometer

Velocity

0.01 – 200.0 mm/s true RMS

Acceleration

0.1 – 200.0 m/s2, 0.3 ~ 656.2 ft/s2 equivalent peak

Displacement

0.001 – 2.000 mm peak-peak value

Frequency Range For Measuring

Acceleration

Velocity

Displacement

Accuracy

+5% of reading + 2d

APO

Enabled by user

Maximum Hold

With max hold and low battery indication

Analog Output

AC output 0 ~ 2.0V peak full scale(load resistance above 10k)

Power Supply

1.5V x 4 AAA battery

Operating Condition

Temperature : 0-50oC ; Humidity : below 90% RH

Standard Accessories

Powerful rare earth magnet, measurement probe, stinger probe(cone), stinger probe(ball), carrying case, manual

Optional Accessories

PC interface

Dimensions

160 x 68 x 38 mm

Weight

181 g

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

16 x 68 x 38

Unit Of Measurement

1 Piece

Weight

0.181 kg

Generic Type

Vibration Meters

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
