SKU # 1000045820

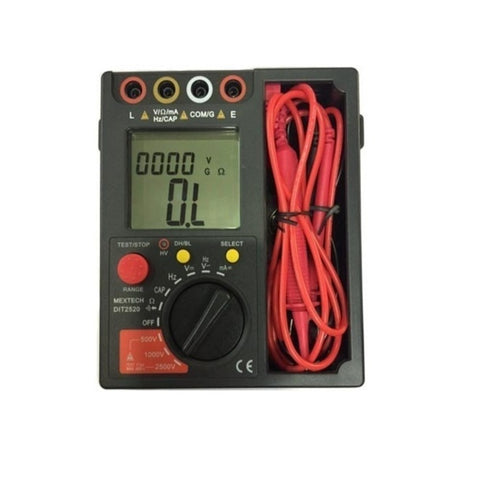

Mextech Insulation Resistance Tester Range 0 to 20 G Ohm DIT-2520
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
3 ¾ Digits Jumbo LCD display with unit annunciator & backlit, max reading 3999.
-
Test of insulation resistance at 500V/ 1000V/ 2500V, with high driving capacity (≥ 15mA)
-
Dual display of the testing voltage and insulation value simultaneously
-
Data hold, Auto Ranging multimeter
-
User panel calibration
-
Overload protection
-
Safety as per IEC1010-1 Cat.II 1000V
-
DCV: 400m/4/40/400/1000V, ± 0.5%
-
ACV: 4/40/400/700V, ± 0.8%
-
DCA: 40m/400mA, ± 0.8%
-
ACA: 40m/400mA, ± 1%
-
OHM: 400/4K/40K/400K/4M/40MΩ, ± 0.8%
-
CAP: 40n/400n/4µ/40µF, ± 3%
-
Frequency: 40/400/4K/40K/400K/4MHz, ± 0.5%
-
Audible continuity buzzer: <380Ω
-
Battery: 1.5V x 6, AA size
-
Dimension: 170 x 156 x 64mm
-
weight: 650 g
-
Short circuit output: ≥ 15mA
-
Measuring time: 1/2/10 min selectable
-
Warranty: As Per Manufacturer Terms And Condition
Product Specification
Rated Voltage |
Measurement range |
Accuracy |
500V |
0.5MΩ-4GΩ |
200MΩ-4GΩ: ±5%rdg±5 |
1000V |
1.5MΩ-4GΩ |
4GΩ-40GΩ: ±10%rdg±5 |
2500V |
5MΩ-40GΩ |
4GΩ-40GΩ: ±10%rdg±5 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Insulation Resistance Tester |
Manufacturer Details |
Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
Packer Details |
Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
Country of Origin |
India |
