SKU # 1000133112

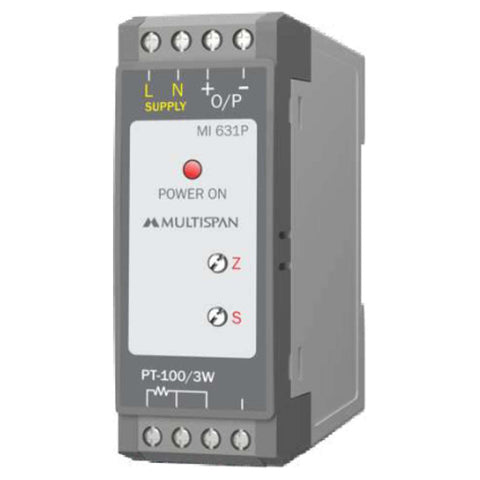

Multispan Signal Isolator MI-631P

Multispan Signal Isolator MI-631P

Visit the Multispan Store

₹ 2,340.00

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use

CN100

Above ₹7,000 Use

CN150

Above ₹15,000 Use

CN200

Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

Fix Analog Input & Output with Inbuilt Sensor Supply
Slim Size which Occupies Less Space in Panel
Available in Single and Dual Output with Higher Noise Rejection Ratio
3-Way Isolation Input-Output, Input-Supply, Output-Supply
Features
1.5KV isolation supply, input & output
Linearized O/P
Zero & span correction facility through trim port
Fast response time <150ms
Application
Field Interface device

Impedance matching of
transmitters and receiver
Isolation of field signals
Distribution of signals
Factory automation
Powering of field Transmitters
Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand	Multispan
Product Type	Signal Isolator
Product Model	MI-631P
Mounting	Din rail Mounting
Input Type	PT-100/3W
Range	0 TO 100°C
Input Impedance
Current Input	<100Ω
Voltage Input	>100KΩ
Cmrr	>120dp (Typical)
Temperature Co-Efficient	<100 PPM
Output Specification
Output	4 to 20mA DC
Response Type	<150ms
Output Impedance
Current Output	>100Ω @20mA DC with 500Ω load
Load Resistance
Ma Ouput	Load Voltage <10V
Auxiliary Voltage	100 to 250V AC
Isolation
Isolation Type	Optical - 3 way
Isolation Between Supply, Input & Output	At least 1.5KV AC for 1 min
Dimension (HxWxD)	76 x 27 x 116
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H	7.6 x 2.7 x 11.6
Unit of Measurement	1 Piece
Weight	0.4 kg
Generic Type	Signal Isolators
Manufacturer Details	Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445
Packer Details	Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445
Country of Origin	India
