SKU # 1000038258

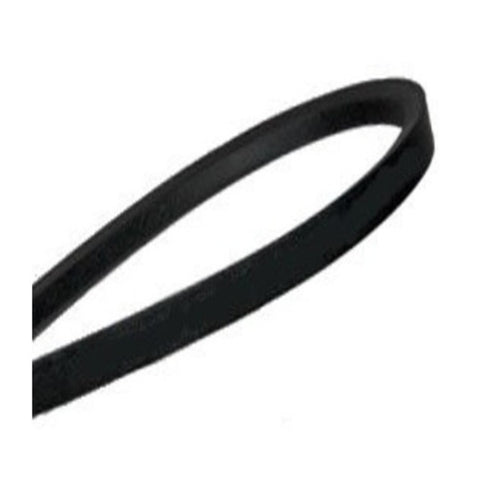

PIX Wrap Belt SPA Section 13 x 10 mm (Wedge Section)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Top Width To Height Ratio: 1.2:1
-
Maximum Recommended Belt Speed: 42 M/S
-
Permissible Flex Rate F=100 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge Section: Up To 42 M/Sec, Narrow Section: Up To 45 M/Sec)
-
Temperature Range: -18°C To +80°C
-
Commonly Used Because Of The Space Savings Achieved By Using These Belts
-
They Are Used Extensively In Most Of The Industrial Applications Ranging From A Light Duty Application Drive To Heavy Load Applications Such As Crusher Drives
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
SPA 1657, SPA 1682, SPA 1700, SPA 1732, SPA 1750, SPA 1757, SPA 1800, SPA 1832, SPA 1850, SPA 1857, SPA 1882, SPA 1900, SPA 1925, SPA 1932, SPA 1950, SPA 1957, SPA 1982, SPA 2000, SPA 2057, SPA 2060, SPA 2082, SPA 2120, SPA 2180, SPA 2182, SPA 2200, SPA 2240, SPA 2280, SPA 2282, SPA 2300, SPA 2332, SPA 2360, SPA 2382, SPA 2430, SPA 2500, SPA 2580, SPA 2632, SPA 2650, SPA 2682, SPA 2720, SPA 2732, SPA 2800, SPA 2882, SPA 2900, SPA 2932, SPA 3000, SPA 3082, SPA 3150, SPA 3282, SPA 3350, SPA 3550, SPA 3650, SPA 3750, SPA 4000, SPA 4250, SPA 4500, SPA 9110 |
|
Section |
SPA Section |
|
Angle Degree |
40 |
|
Top Width |
13 mm |
|
Thickness |
10 mm |
|
Min Pulley Dia. (mm) |
90 dp |
|
Mfg. Range |
576 mm To 9110 mm |
|
Standard |
BS 3790 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Wrap Belts |
Manufacturer Details |
PIX Transmissions Ltd. B-1208, 12th Floor, One BKC, Bandra Kurla Complex, Bandra (E), Mumbai - 400051 Phone : +91-22-61383000 |
Packer Details |
PIX Transmissions Ltd. B-1208, 12th Floor, One BKC, Bandra Kurla Complex, Bandra (E), Mumbai - 400051 Phone : +91-22-61383000 |
Country of Origin |
India |
