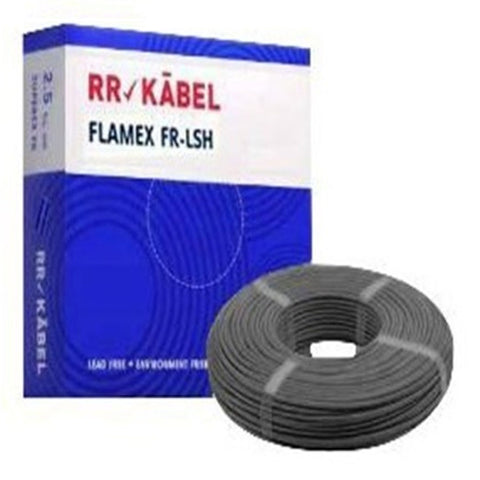

RR KABEL Flamex Flame Retardant Low Smoke(FRLS) Cable 200 meter 1.5Sq.mm
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
India’s 1st REACH and RoHS Compliant Cable | Flame Retardant Low Smoke Low Halogen
-
REACH, ROHS, CE and CPR Compliant
-
Anti-Rodent, Anti-Termite
-
100% Electrolytic Copper
-
More than 101% Conductivity
-
Application
-
Suitable for use in conduit and for fixed, protected installation particularly suitable for wiring in fire and explosion prone areas, chemical factories, densely wired areas, public buildings, schools, hospitals, commercial complexes, theatres, etc.
-
Conductor
-
Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility
-
Insulation
-
Specially formulated flame retardant low smoke low halogen compound to restrict the spread of flames in fire situation
-
The smoke emitted by the burning cable is considerably low compared to traditional cables
-
This ensures improved visibility for evacuation of trapped victims and facilitates fire fighting operation
-
Insulation Conformity
-
IS 5831 Type A/D FR-LSH 70°C
-
Colours
-
Entire cable has white base and a double strip of Green, Black, Red, Yellow, Blue, Grey, running along the cable length
-
Marking
-
The cables are printed with the marking of 'FLAMEX FR-LSH’
Product Specification
|
Brand |
RR KABLE |
|
Product Type |
Flame Retardant Low Smoke(FRLS) Cable |
|
Product Model |
Flamex |
|
Nominal Cross Sectional Area (Sq. mm) |
1.5 |
|
Cable Length |
200 Meter |
|
Colours |
Green Black Red Yellow Grey |
|
Nominal Insulation Thickness (mm) |
0.7 |
|
Number Nominal Dia. of Strands |
22/0.3 |
|
Approx. Overall Diameter (mm) |
3.0 |
|
Max. DC Conductor Resistance at 20°C (Ω/km) |
12.1 |
|
Current Rating (Amps) |
Casing : 18 Concealed : 16 |
|
Approvals |
IS 694 marked, FIA/TAC |
|
Voltage Grade |
Up to and including 1100V |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
FRLS Cable |
Manufacturer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Packer Details |
RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com |
Country of Origin |
India |
