SKU # 1000029801

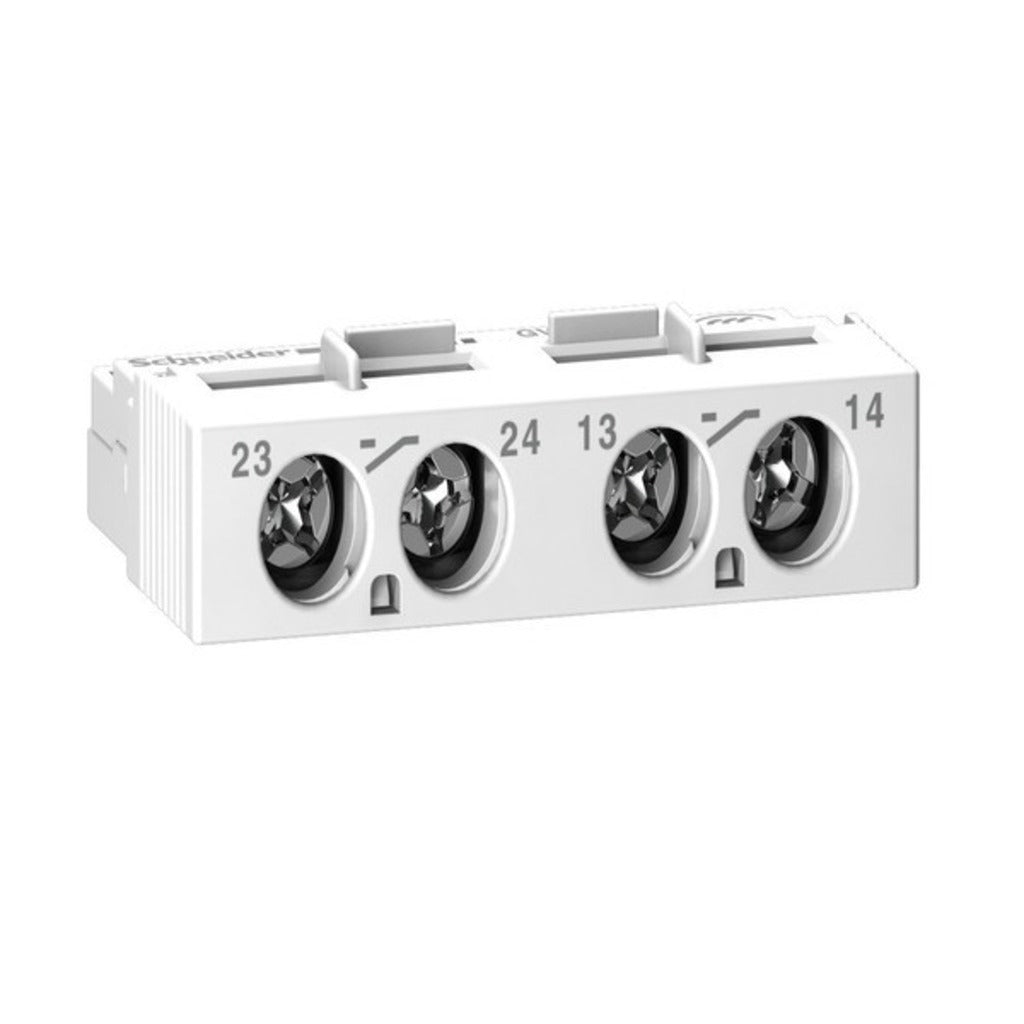

Schneider TeSys Auxiliary Contact
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
It is a single standard auxiliary contact that provides all the different indications remotely for ComPact NSX, ComPact NS, PowerPact Multistandard and EasyPact CVS circuit breakers
-
Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types
-
The remote status information for trip indication due to an earth fault (SDV) is used for ComPact NSX and PowerPact Multistandard
-
The contacts are installed in the device in dedicated slots
-
This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact
-
The rated current is 6A and the minimum load is 100mA at 24 VDC for utilization categories are AC12/AC15/DC12/DC14
-
Screwless connections with spring terminals provide a fast and reliable connection
-
The section of connected cables is between 0.5 mm² (AWG20) and 1.5 mm² (AWG16)
-
It complies with IEC 60947-5-1 standard
Product Specification
|
Brand |
Schneider |
|
Model |
TeSys |
|
Product Code |

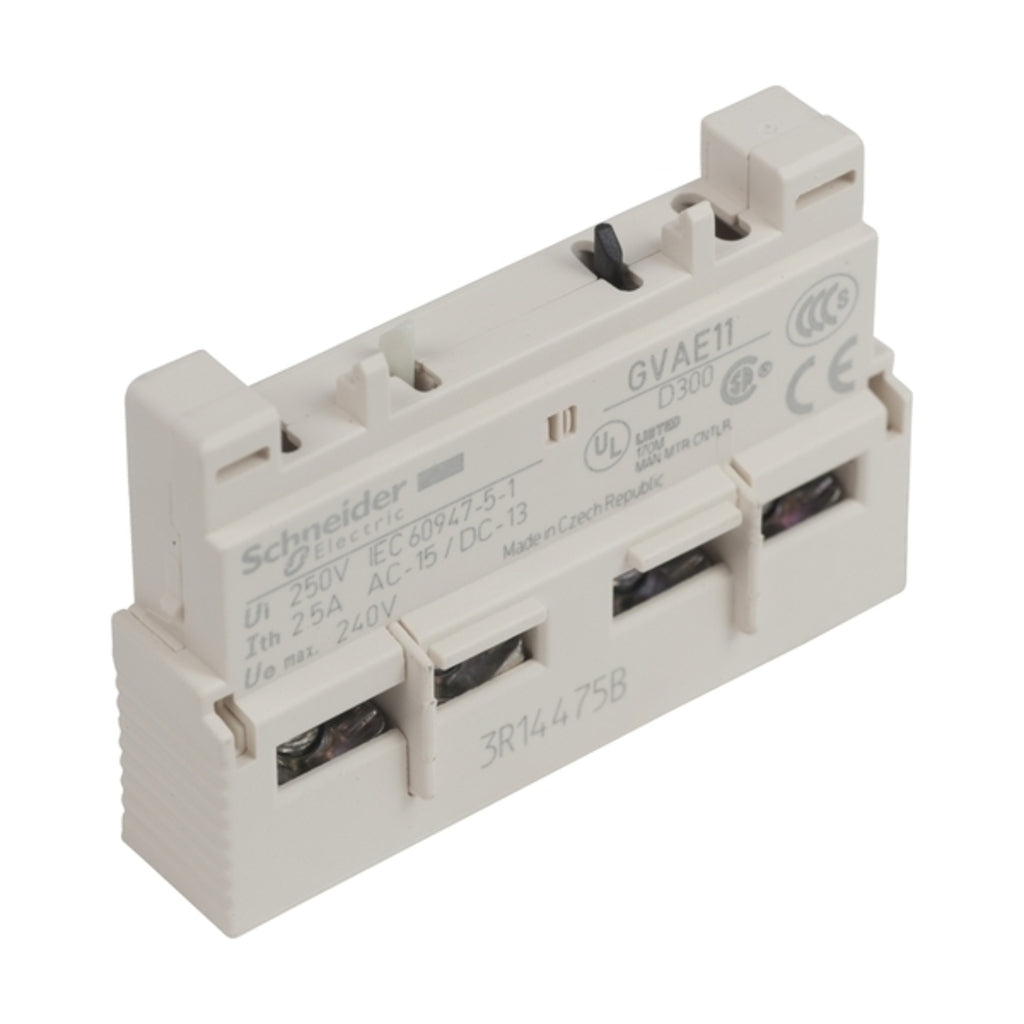

GVAE11 GVAE20 |
|
Product Type |
Auxiliary Contact |
|
Description |
Auxiliary Contact For Motor Circuit Breakers |
|
Device Short Name |
GVAE |
|
Mounting Location |
Front Side |
|
Pole Contact Composition |
1 NO + 1 NC |
|
Quantity Per Set |
Set of 10 |
|
Minimum Switching Current |
5 mA |
|
Mechanical Durability |
100000 Cycles |
|
Minimum Switching Voltage |
17 V |
|
Tightening Torque |
1.4 N.m - On Screw Clamp Terminals |
|
Dimension |
11 mm x 45 mm x 29 mm |
|
Product Weight |
0.02 kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Auxiliary Contacts |
Manufacturer Details |
Schneider Electric, 10th Floor, DLF Cyber city, Building Number 10 C, Gurgaon, Haryana-122002 India. |
Packer Details |
Schneider Electric, 10th Floor, DLF Cyber city, Building Number 10 C, Gurgaon, Haryana-122002 India. |
Country of Origin |
India |
