SKU # 1000029748

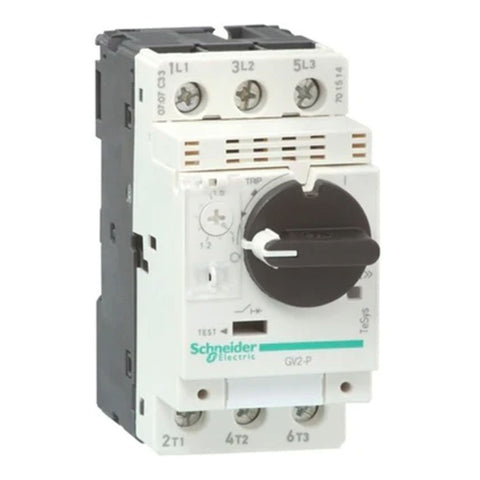

Schneider TeSys GV2-P Motor Circuit Breakers 100kA - 35kA
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
GV2-P Model Thermal Magnetic - With Rotary Handle Control
-
Conformance To IEC 60947 -1,-2,-4,Conformity To International Standards -UL, CSA, CE
-
Thermal Magnetic Circuit Breakers Range From 0.1-220 Amps
-
High Breaking Capacity Up To 100 kA
-
Wide Range Of Accessories
-
S-Shaped Busbar For Side-By-Side Connection With 40 - 65A Contactor
-
With GV1-L3 Current Limiter, Breaking Capacity Can Be Increased To 100 kA
-
Combination Of The GV2-P With The D Model Providestype 2 Coordination
-
Dimension: 89 mm x 45 mm x 97 mm
Product Specification
Breaking Capacity At 415 V 50 Hz |
Motor Power AC3 50/60Hz -415 V |
Thermal Protection Adjustment Range |
Product Code |
|
kW |
hP |
|||
100 kA |
- |
- |
0.1 – 0.16 A |
GV2P01 |
100 kA |
0.06 |
- |
0.16 – 0.25 A |
GV2P02 |
100 kA |
0.09 |
- |
0.25 – 0.40 A |
GV2P03 |
100 kA |
0.18 |
- |
0.40 – 0.63 A |
GV2P04 |
100 kA |
0.37 |
0.5 |
0.63 – 1.0 A |
GV2P05 |
100 kA |
0.55 |
0.75 |
1.0 – 1.6 A |
GV2P06 |
100 kA |
0.75 |
1.0 |
1.6 – 2.5 A |
GV2P07 |
100 kA |
1.1 |
2 |
2.5 – 4 A |
GV2P08 |
100 kA |
2.2 |
3 |
4 – 6.3 A |
GV2P10 |
100 kA |
3 |
5.5 |
6 – 10 A |
GV2P14 |
100 kA |
5.5 |
7.5 |
9 – 14 A |
GV2P16 |
50 kA |
7.5 |
10 |
13 – 18 A |
GV2P20 |
50 kA |
9 |
12.5 |
17 – 23 A |
GV2P21 |
50 kA |
11 |
15 |
20 – 25 A |
GV2P22 |
35 kA |
15 |
20 |
24 – 32 A |
GV2P32 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
MCBs |
Manufacturer Details |
Schneider Electric, 10th Floor, DLF Cyber city, Building Number 10 C, Gurgaon, Haryana-122002 India. |
Packer Details |
Schneider Electric, 10th Floor, DLF Cyber city, Building Number 10 C, Gurgaon, Haryana-122002 India. |
Country of Origin |
India |
