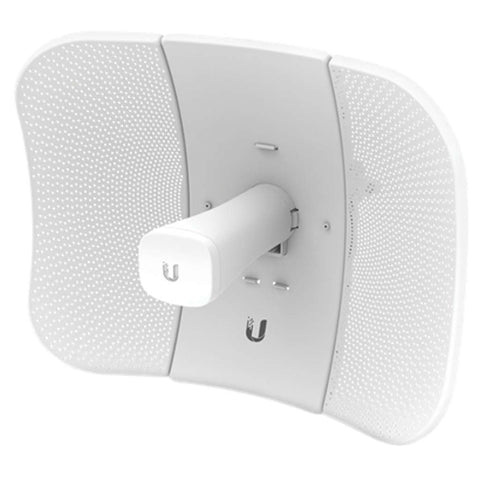

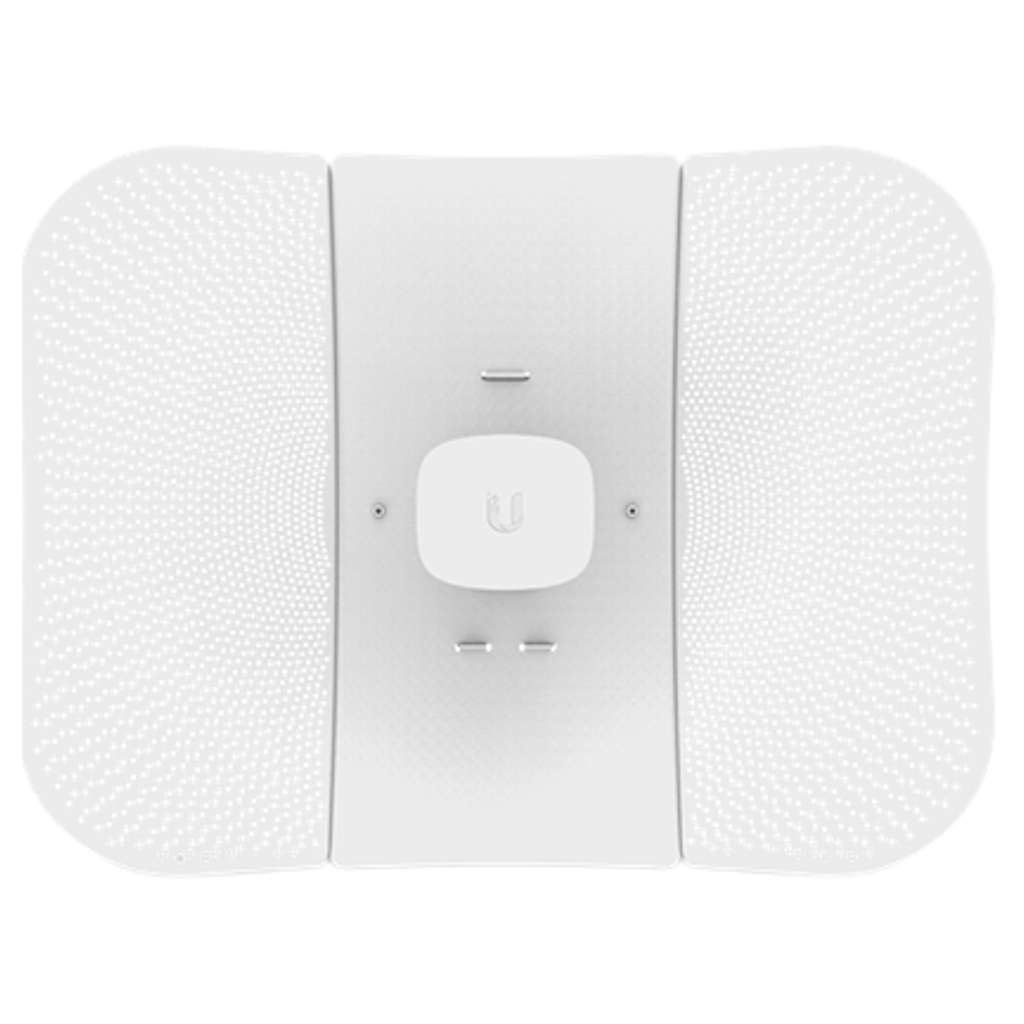

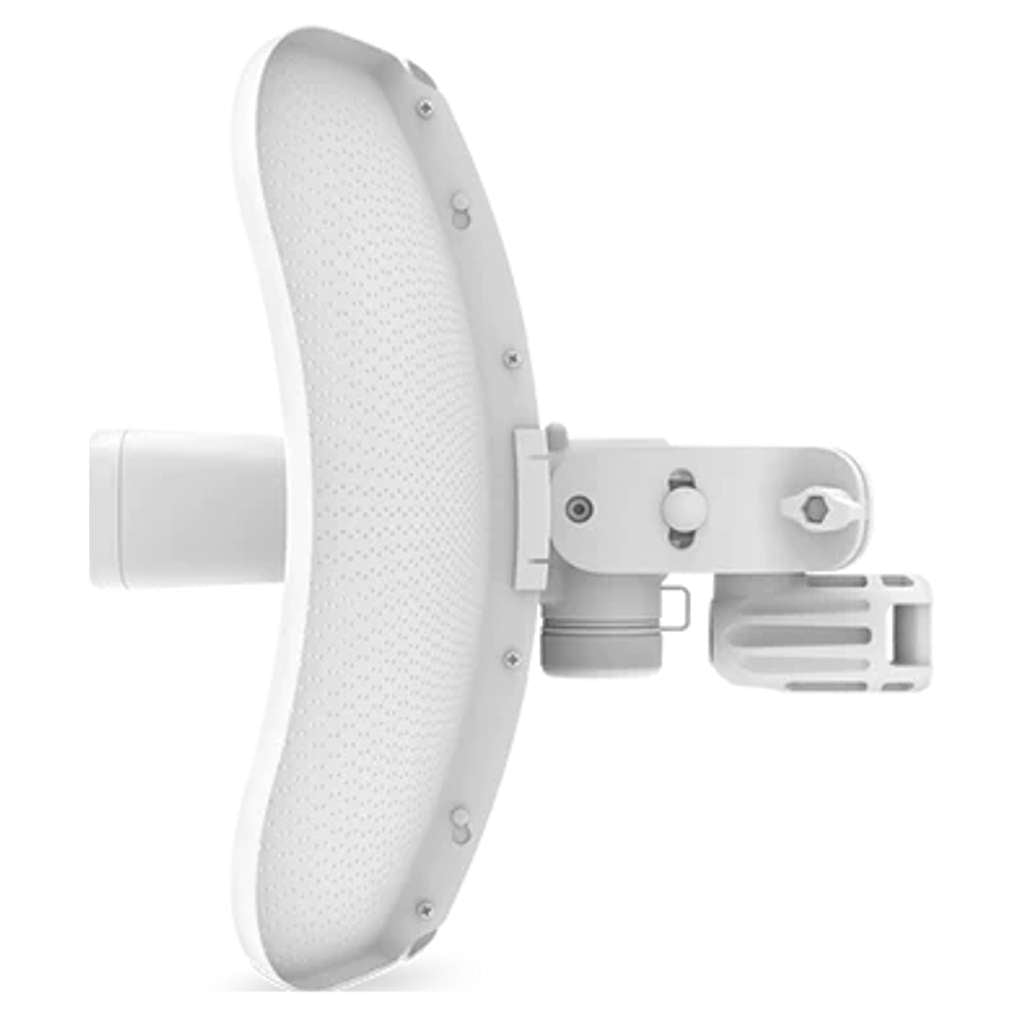

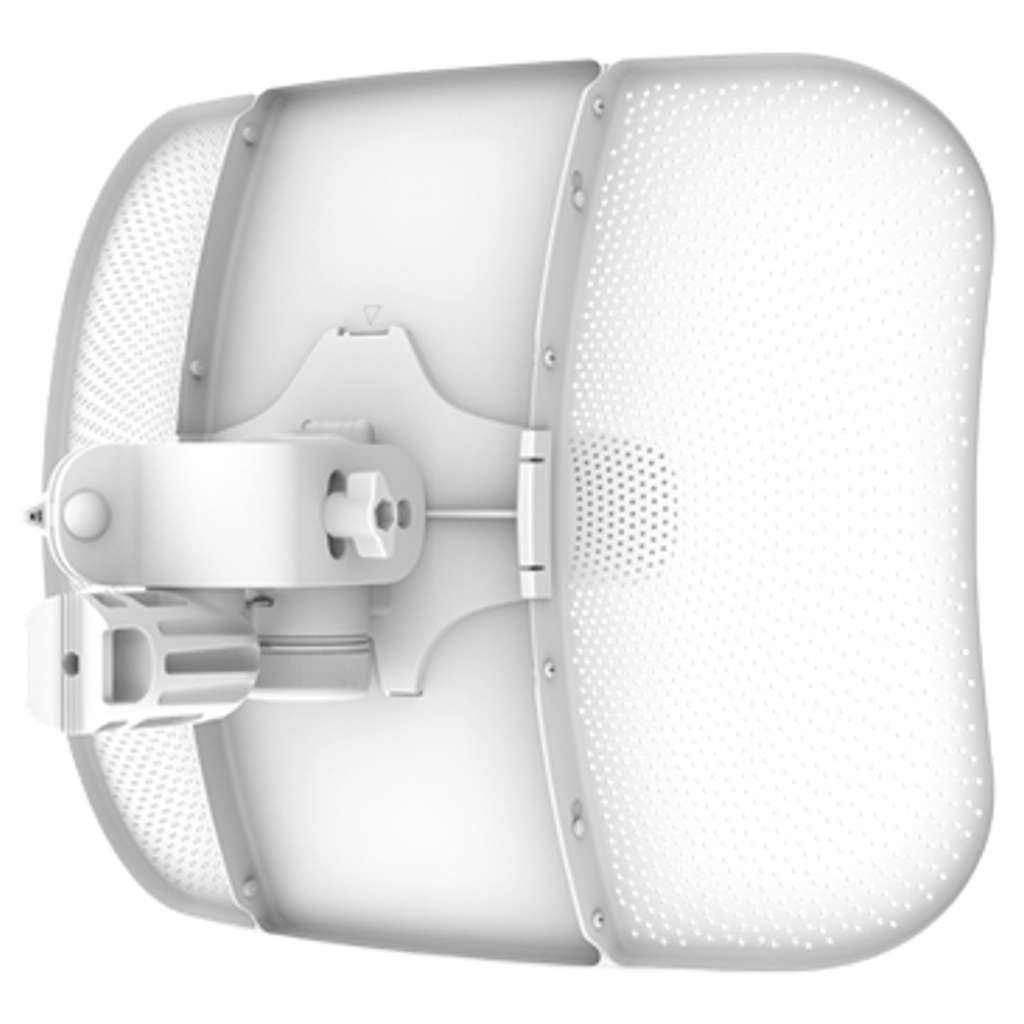

UBNT LiteBeam 5GHz 450Mpbs Outdoor AP/Station With Intergrated Antenna LBE-5AC-GEN2

UBNT LiteBeam 5GHz 450Mpbs Outdoor AP/Station With Intergrated Antenna LBE-5AC-GEN2


₹ 7,619.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Ubiquiti Networks launches the latest generation of airMAX CPE(Customer Premises Equipment), the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management

  • Improved Noise Immunity

  • The LiteBeam 5AC Gen 2 directs RF energy in a tighter beam width

  • With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially
    filters out noise, so noise immunity is improved

  • This feature is especially important in an area crowded with other RF signals of the same or similar
    frequency

  • Innovative Design
    Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable

  • This improves performance because it eliminates cable losses

  • Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy

  • Powerful Wireless Features

  • Access Point PtMP airMAX Mixed Mode

  • airMAX ac Protocol Support

  • Long-Range Point-to-Point (PtP)

  • Link Mode

  • Selectable Channel Width

  • PtP: 10/20/30/40/50/60/80 Mhz

  • PtMP: 10/20/30/40 Mhz

  • Automatic Channel Selection

  • Transmit Power Control

  • Automatic/Manual

  • Automatic Distance Selection(ACK Timing)

  • Strongest WPA2 Security

  • Usability Enhancements

  • airMagic Channel Selection Tool

  • Redesigned User Interface

  • Dynamic Configuration Changes

  • Instant Input Validation

  • HTML5 Technology

  • Optimization for Mobile Devices

  • Detailed Device Statistics

  • Comprehensive Array of Diagnostic

  • Tools, including RF Diagnostics and airView Spectrum Analyzer

  • UNMS App

  • The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device

  • Accessing airOS via Wi-Fi

  • The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android)

  • UNMS allows you to set up, configure, and manage the LiteBeam 5AC Gen 2

  • It offers the following options once you're connected or logged in to the device Status Check link status information or the basic configuration settings of the LiteBeam 5AC Gen 2

  • Configuration Change or update the existing configuration of the LiteBeam 5AC Gen 2

  • Tools Access tools for initial installation and configuration of the LiteBeam 5AC Gen 2

  • Actions Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults,access the airOS UI in the web browser, or disconnect from the
    LiteBeam 5AC Gen 2

Product Specification

Brand

UBNT

Product Type

Antenna

Product Model

LBE-5AC-GEN2

Product Series

LiteBeam

Power Supply

24V, 0.3A Gigabit PoE Adapter (Included)

Maximum Power Consumption

7W

Power Method

Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range

24V ± 10%

Gain

23 dBi

Networking Interface

(1) 10/100/1000 Ethernet Port

Processor Specs

MIPS 74Kc

Memory

64 MB DDR2

LEDs

Power, Ethernet

Channel Sizes

PtP Mode

PtMP Mode

10/20/30/40/50/60/80 MHz

10/20/30/40 MHz


Enclosure Characteristics

Reflector (SGCC 0.6T) / Plastic: PC

Mounting

Pole-Mounting Kit (Included)

Wind Loading

275 N @ 200 km/h (61.8 lbf @ 125 mph)

Wind Survivability

200 km/h (125 mph)

ESD/EMP Protection

± 24 kV Contact / Air

Operating Temperature

-40 to 70° C (-40 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

Operating Frequency (MHz)

Worldwide

5150 - 5875

US/CA

U-NII-1

5150 - 5250

U-NII-2A

5250 - 5350 MHz

U-NII-2C

5470 - 5725 MHz

U-NII-3

5725 - 5850

Management Radio (MHz)

Worldwide

2412 - 2472

US/CA

2412 - 2462

Warranty

As Per Manufacturer Terms and Condition
