LAST SOLD AT ₹ 12,320.00
SKU # 1000025502

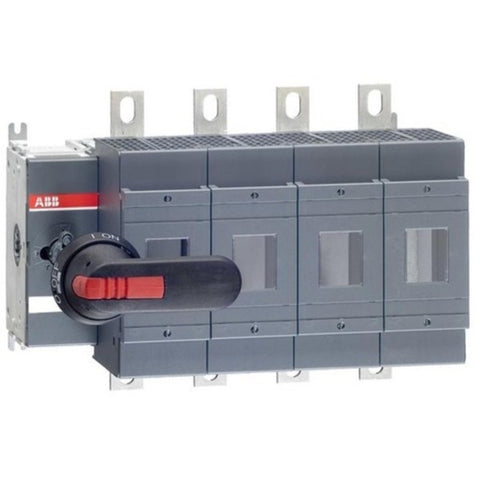

ABB OS Switch Disconnector Fuse Four Pole 200A-800A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
200A-800A SDF supplied with shaft and handle, Mechanism at the end of the switch fuse
-
Rated Impulse Withstand Voltage (Uimp) : 12 kV
-
Rated Insulation Voltage (Ui) : 1000 V
-
Rated Operational Voltage : 500 V
-
Rated Short-time Withstand Current (Icw) : for 1 s 8 kiloampere rms
-
Rated Conditional Short-Circuit Current (Inc) : (690 V) 80 kA
-
Pollution Degree : 3
-
Handle Type : Handle and shaft included
-
Switches Operating Mechanism : 04 (Left Side)
-
Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out
-
Fuse System : British Standard
-
Operating Mode : Front Operated
-
Standards : IEC 60947-3
-
Mounting Type : Base mounting
-
Number of Poles : 4
-
Terminal Type : Lug terminals
Product Specification
Rated Cutrrent (A) |
Fuse Size |
Model |
Product Id |
200 |
B1-B2 |
OS200B04N2P |
1SYN022709R9410 |
250 |
B1-B3 |
OS250B04N2P |
1SYN022750R7800 |
315 |
B1-B4 |
OS315B04N2P |
1SYN022719R2710 |
400 |
B1-B4 |
OS400B04N2P |
1SYN022719R2890 |
630 |
C1-C2 |
OS630B04N2P |
1SYN022825R6230 |
800 |
C1-C3 |
OS800B04N2P |
1SYN022825R8010 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Pole Switch Disconnectors |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
