LAST SOLD AT ₹ 1,220.00

SKU # 1000083550

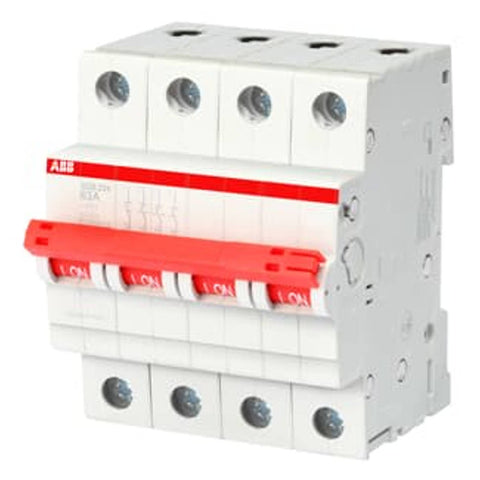

ABB SDB200 Series Switch Disconnector 4P

ABB SDB200 Series Switch Disconnector 4P

Visit the ABB Store

₹ 1,220.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Specification

Brand

ABB

Product Type

Switch Disconnector

Series

SDB200

Model

SDB204

Rated Current | Product Code

40A | 1SYD274115R0040

63A | 1SYD274115R0063

Technical

Operational Voltage

Maximum 457 V AC Maximum 120 V DC

Rated Impulse Withstand Voltage (U Imp )

4 kV 6.2 kV @ sea level 5 kV @ 2000 m

Rated Frequency (f)

50 Hz

Electrical Endurance

10000AC cycle ; 1000DC cycle

Mechanical Endurance (Nendu):

20000 cycle

Number Of Poles

4

Overvoltage Category

III

Tightening Torque

2 N·m

Actuator Type

Toggle

Screw Terminal Type

Cage Terminal

Actuator Marking

I / O

Actuator Material

Insulation Group II, Red, Sealable

Housing Material

Insulation Group II, RAL 7035

Mounting Position

Any

Recommended Screw Driver

Pozidriv 2

Accessories Available

Yes

Remarks

IP40 in enclosure with cover

Connecting Capacity

rigid: 25 mm2 ; flexible: 16 mm2

Environmental

Ambient Air Temperature

Operation -25 ... +55 °C Storage -40 ... +70 °C

Degree Of Protection

IP20

Pollution Degree

3

Environmental Conditions

28 cycle 55°C @ 90-96% 25°C @ 95-100%

Resistance To Vibrations Acc. To Iec 60068-2-6

5g - 20 cycles, at 5 ... 150 Hz,6g at 35 Hz with load 0.8 In (acc.to IEC/EN 60068-2-6)

Resistance To Shock Acc. To Iec 60068-2-27

25g / 2 shock / 13 ms

Dimensions

Product Net Width

70 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Product Net Weight

0.5 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

4 Pole Switch Disconnectors

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
