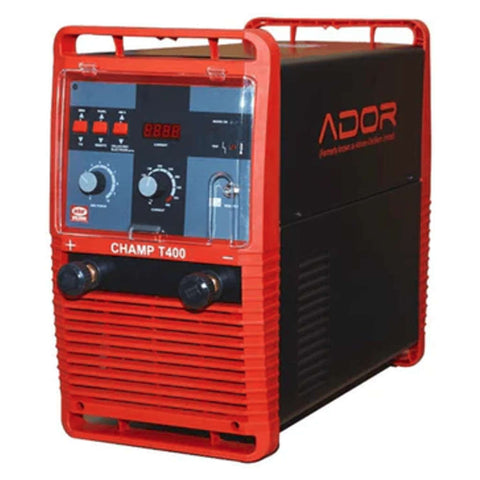

Ador Welding Machine CHAMP T 400

Ador Welding Machine CHAMP T 400

Visit the Ador Store

₹ 61,750.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch Within a Day

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Salient Features :

  • IGBT based latest PWM inverter technology

  • Three phase inverter based, high efficiency and high power factor DC Welder

  • Suitable for Long distance welding and cellulosic electrodes

  • Enhanced Reliability due to SMD technology

  • Capable of Welding with all types of cellulosic electrodes including 6010, 7010G and 8010G l HF Unit

  • High frequency IGBT based Rectifier

  • Arc force adjustment on panel

  • TIG Welding possible with External HF Unit

  • Light weight, compact and portable for easy handling

  • Capable of Welding with 100 meter + 100 meter welding and return cables

  • Smooth and stable arc with minimum spatter

Protections With Auto Reset :

  • Input Supply Voltage protections for over and under Voltage

  • Over Temperature

  • Protection against Single phasing

  • Warranty : One year from the date of commissioning. ADOR WELDING LIMITED warrants that all new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.

  • In view of continuous development, ADOR WELDING LIMITED reserves the right to modify/change the design and /or the specifications without any prior notice.

  • Backed by dedicated customer care package

Product Specifications

Technical Specifications

Unit

Champ T400

Input

Voltage

Volt

415 , +15%, -10%

Phase

No

3

Frequency

Hz

50/ 60

Input KVA at 415 Vac

at 100% duty cycle

KVA

14

at No Load

KVA

0.24

Power Factor

Cos

Upto 0.93

Efficiency

%



Output

Open Circuit Voltage

Volt

85 V DC

Welding Current Range

Amps

10-400

Welding Current (40°C)





at 60% duty cycle (10 minute cycle)

Amps

400

at 100% duty cycle

Amps

310

General Specification

General

Unit

Value

Suitable Welding Electrode size

mm

2.5, 3.2, 4, 5 and 6.3 mm

Arc force setting

-

Adjustable by Potentiometer

Current Display (Set Current & Actual Current)

A

3 digit –7 segment digital panel pcb

Ingress Protection



IP23

Cooling

Class

Forced Air

Insulation

Type

H

Welding Output Terminals

Class

Stud type for Lug type cable connections

Dimensions L x W x H

mm

660 X 305 X 530

Weight (approx.)

Kg

40


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Welding Machine

Manufacturer Details

Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236

Packer Details

Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236

Country of Origin

India
