LAST SOLD AT ₹ 131,000.00
SKU # 1000003272

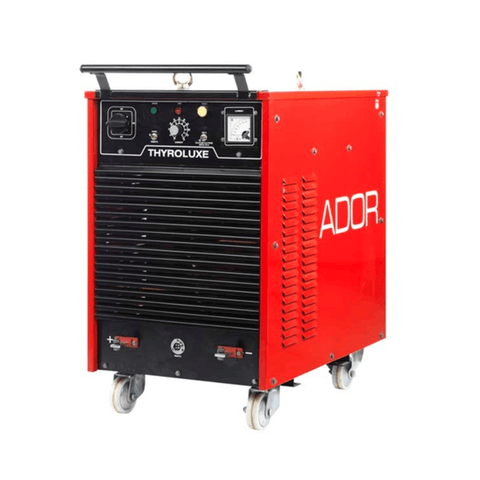

Ador Welding Machine THYROLUXE 600
![](http://www.bestomart.com/cdn/shop/t/34/assets/panid.png?v=79406228544121282611724821519)
PAN INDIA DELIVERY
![](http://www.bestomart.com/cdn/shop/t/34/assets/pre_qc.png?v=79212665365913751591724821538)
100% Genuine Products
![](http://www.bestomart.com/cdn/shop/t/34/assets/pay_sec.png?v=25498095452997473051724821521)
100% Secured Payments
Product Description
General Features
-
The word Class Thyristor based DC Welders
-
Choice of heavy duty modes to take care of both Welding & gouging (for 600 A mode Only)
-
Superior Welding performance for the Complete Welding current range
-
Ideal constant current drooping characteristics
-
Stepless control for current adjustments
-
Protections against input supply fluctuations i.e Under Voltage, Over Voltage, Single
phasing, over load and short circuit
-
Power source provided With Built in Hot start, Antistick and sef controlled Arc force dynamics
-
Worry-free on maintenance
Salient Features
-
Stepless current control
-
Suitable for Heavy duty Welding and Gouging application (for 600A mode Only)
-
Smooth and Stable arc with minimum spatters
-
Welder friendy Remote controller for easy and convenient setting of current from the workpace or the job
-
Easy arc striking, High OCV for ease in arc start / restart
-
Digital Display, comock connectors (for 400, 600 A modes Only) etc. also available (at extra cost)
Warranty
One year from the date of purchase. ADOR Welding Limited warrants that a new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.
Product Specifications
Technical Specifictions |
Unit |
THYROLUXE 600 |
Input |
||
Input supply Voltage |
Volts. |
415, +10, -15% |
Phase |
No. |
3 |
Frequency |
Hz. |
50/60 |
Input KVA at 100% duty Cycle |
KVA |
31.5 |
Input current at 100% duty Cycle |
Amps AC |
44 |
Recommended switch fuse/rating |
Amps AC |
TP-60 |
Output |
||
Open Circuit Voltage |
Volts DC |
100 |
Welding Current Range |
Amps DC |
20-600 |
Welding Current |
|
|
at 40% duty Cycle |
Amps DC |
- |
at 60% duty Cycle |
Amps DC |
600 |
at 100% duty Cycle |
Amps DC |
465 |
General |
||
Gouging Carbon Electrode size |
mm Ø |
6 to 9 |
Current Display |
- |
Analog |
Ingress Protection |
Class |
IP23 |
Cooling |
Type |
Forced Air |
Insulation |
Class |
H |
Dimensions |
||
Length |
mm |
980 |
Width |
mm |
550 |
Height |
mm |
960 |
Weight |
Kg |
216 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Welding Machine |
Manufacturer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Packer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Country of Origin |
India |
