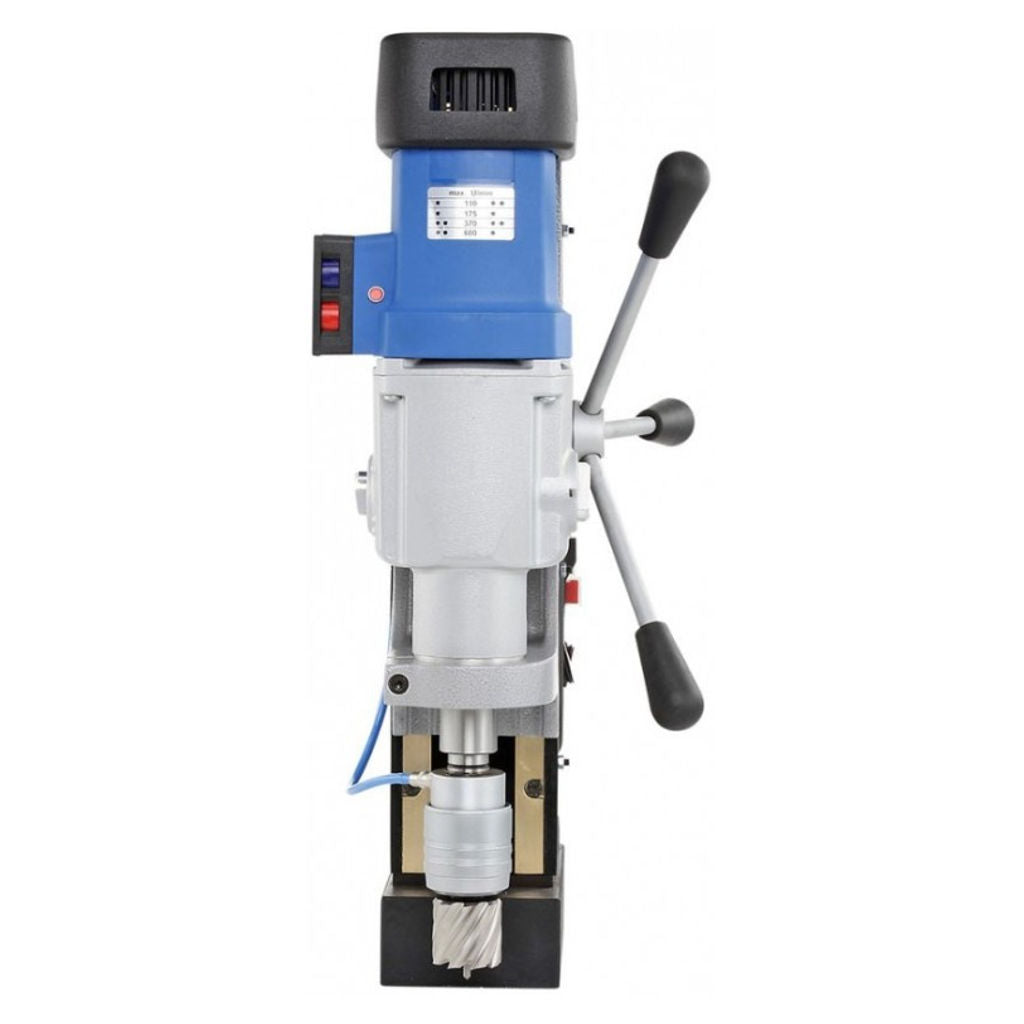

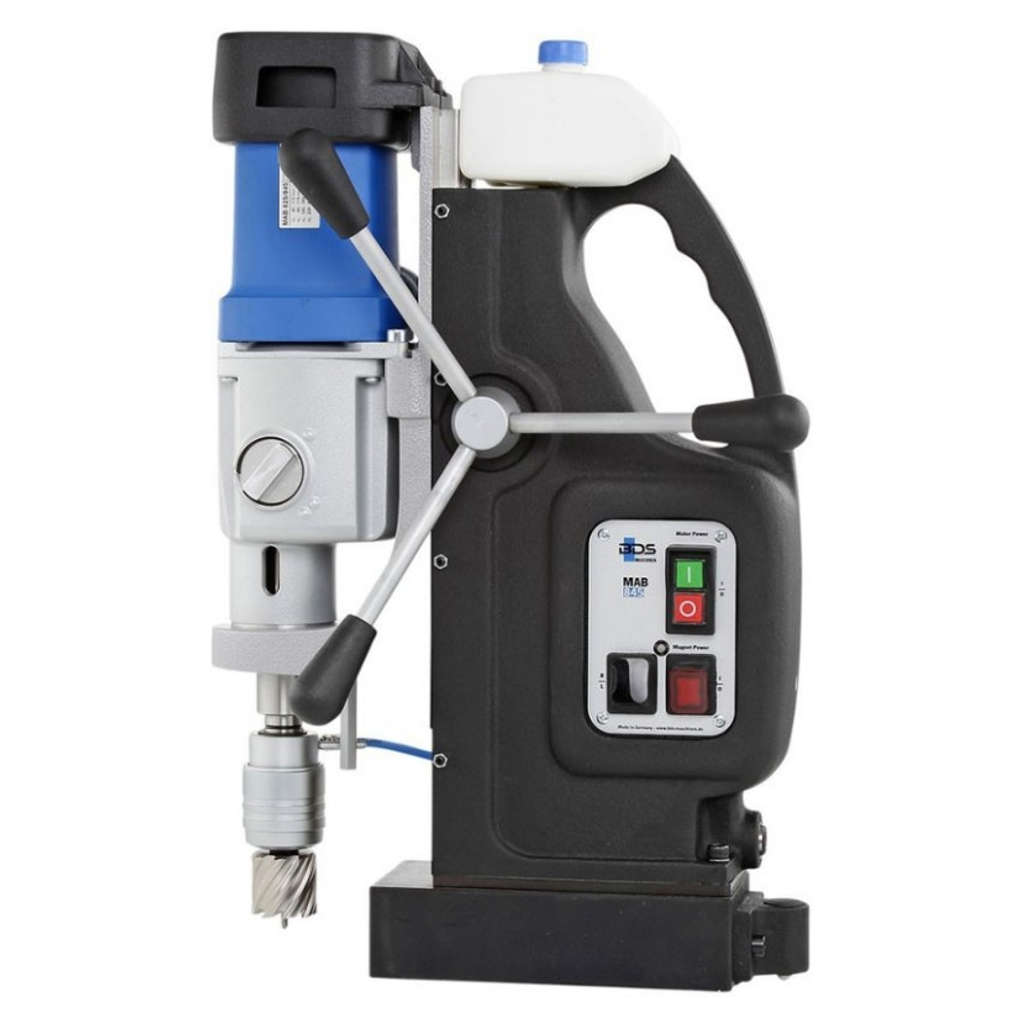

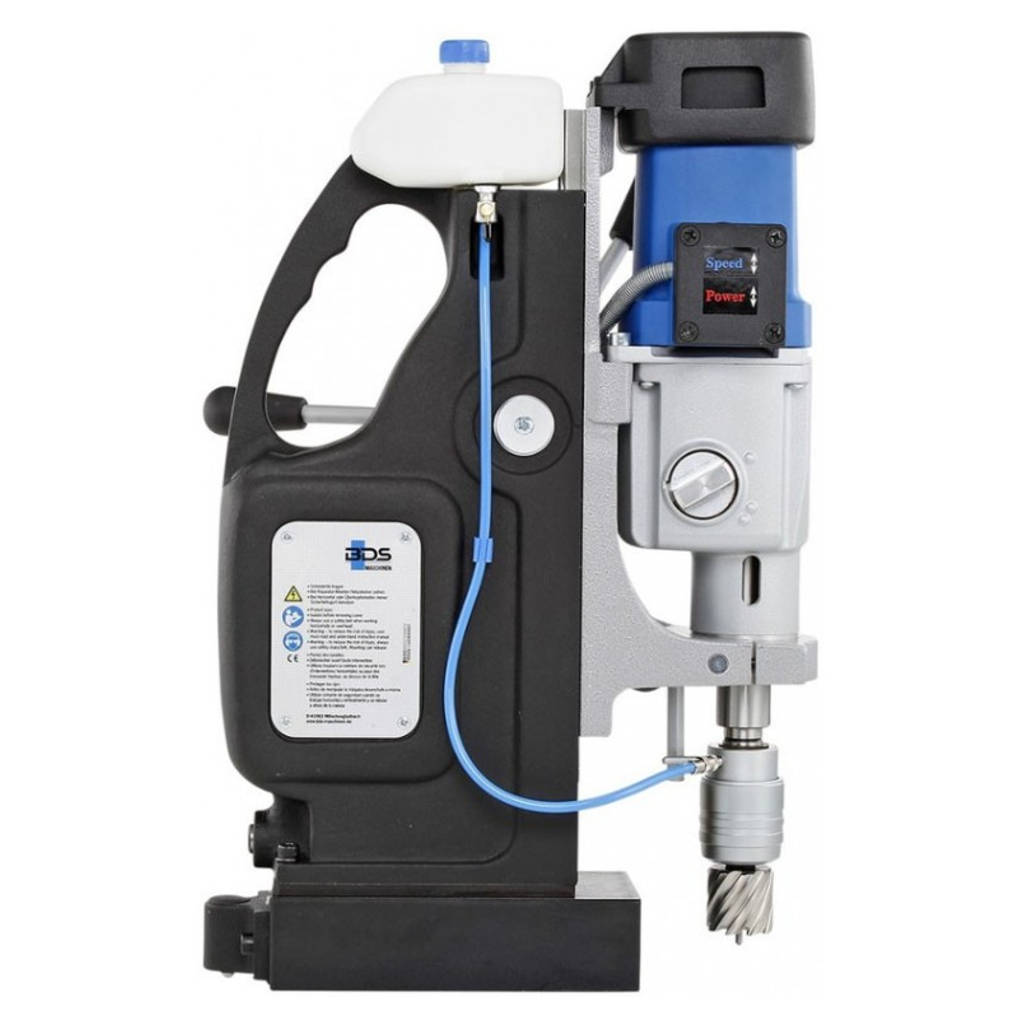

BDS ProfiPLUS Series MAB 845 Magnetic Drilling Tapping Machine With Swivel Base
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Overheating protection
-
Magnet indicator
-
KEYLESS Quick-change drill chuck
-
Permanent internal lubrication
-
Internal cabling
-
Variable speed & torque controls
-
Reversible motor
-
Full wave control electronics
Product Specification
Brand |
BDS |
Product Type |
Magnetic Drilling Tapping Machine |
Model |
MAB 845 |
Series |
ProfiPLUS |
Core Drilling Diameter (HSS / TCT) |
100 mm |
Cutting Depth |
110 mm |
Twist Drilling Diameter |
31.75 mm |
Reaming |
31.75 mm |
Countersink |
50 mm |
Tapping |
M 30 |
Motor Output |
1800 Watt |
Speed |
4 Speed |
Morse Taper |
MT3 |
Swivel Base |
Yes |
Voltage |
230 V AC, 50 – 60 Hz |
Stroke |
255 mm |
Quick-Change Drilling System |
KEYLESS, 19 mm (3/4”) |
Industrial Arbor |
MT 3, 32 mm (1 1/4”) |
Spindle Taper |
MT 3 |
Gear 1 Range |
40 – 110 rpm |
Gear 2 Range |
65 – 175 rpm |
Gear 3 Range |
140 – 360 rpm |
Gear 4 Range |
220 – 600 rpm |
Safety Clutch |
Yes |
Permanent Internal Lubrication |
Yes |
Magnetic Indicator |
Yes |
Full Wave Control Electronics |
Yes |
Overheating Protection |
Yes |
Clockwise/Anticlockwise Rotation |
Yes |
Torque Control |
Yes |
Carbon Brush Wear Indicator |
Yes |
Includes |
1
Magnetic core drilling machine |
Magnet Dimensions |
110 x 220 x 54 mm |
Weight |
25 kg |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Magnetic Drilling Machine |
Manufacturer Details |
BDS Maschinen GmbH Martinstrasse 108 41063 - Mönchengladbach Germany |
Packer Details |
BDS Machines Pvt. Ltd. Plot 40, Surekha, Prithviraj Nagar, Gadia Vihar, Aurangabad, Maharashtra 431005 |
Country of Origin |
Germany |
