LAST SOLD AT ₹ 140,780.00
SKU # 1000096934

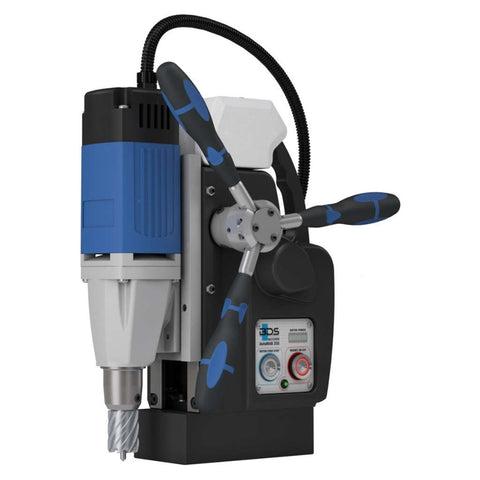

BDS ProfiSPECZIAL Series AutoMAB 350 Automatic Magnetic Drilling Machine
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The control reliably monitors the drilling process, while the power consumption is displayed by means of an LED
-
A safety cut-out protects the drilling motor from overload
-
The high degree of uniformity in the drilling process protects the tool and machine and significantly reduces the risk of the core drill breaking
-
Safety control cut-out: If the magnet loses its adhesion, the drilling and feed motors automatically cut out
-
The automatic feed is activated by pushing back one of the three handles
-
Ideal for drilling automatic as well as manually
-
19 mm direct Weldon arbor
Product Specification
Brand |
BDS |
Product Type |
Magnetic Drilling Machine |
Model |
AutoMAB 350 |
Series |
ProfiSPECZIAL |
Core Drilling Diameter |
35 mm |
Cutting Depth |
55 mm |
Twist Drilling Diameter |
13 mm |
Motor Output |
1080 Watt |
Speed |
1 Speed |
Swivel Base |
No |
Voltage |
230 V AC, 50 – 60 Hz |
Stroke |
160 mm |
Direct Arbor |
19 mm Weldon (3/4”) |
Gear 1 Range |
460 rpm |
Permanent Internal Lubrication |
Yes |
LED Power Indicator |
Yes |
Magnet indicator With Safety Cut-Out |
Yes |
Feed |
Automatic feed/return |
Includes |
1
Magnetic core drilling machine AutoMAB 350 |
Magnet Dimensions |
168 x 84 x 48 mm |
Weight |
17 kg |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Magnetic Drilling Machine |
Manufacturer Details |
BDS Maschinen GmbH Martinstrasse 108 41063 - Mönchengladbach Germany |
Packer Details |
BDS Machines Pvt. Ltd. Plot 40, Surekha, Prithviraj Nagar, Gadia Vihar, Aurangabad, Maharashtra 431005 |
Country of Origin |
Germany |
