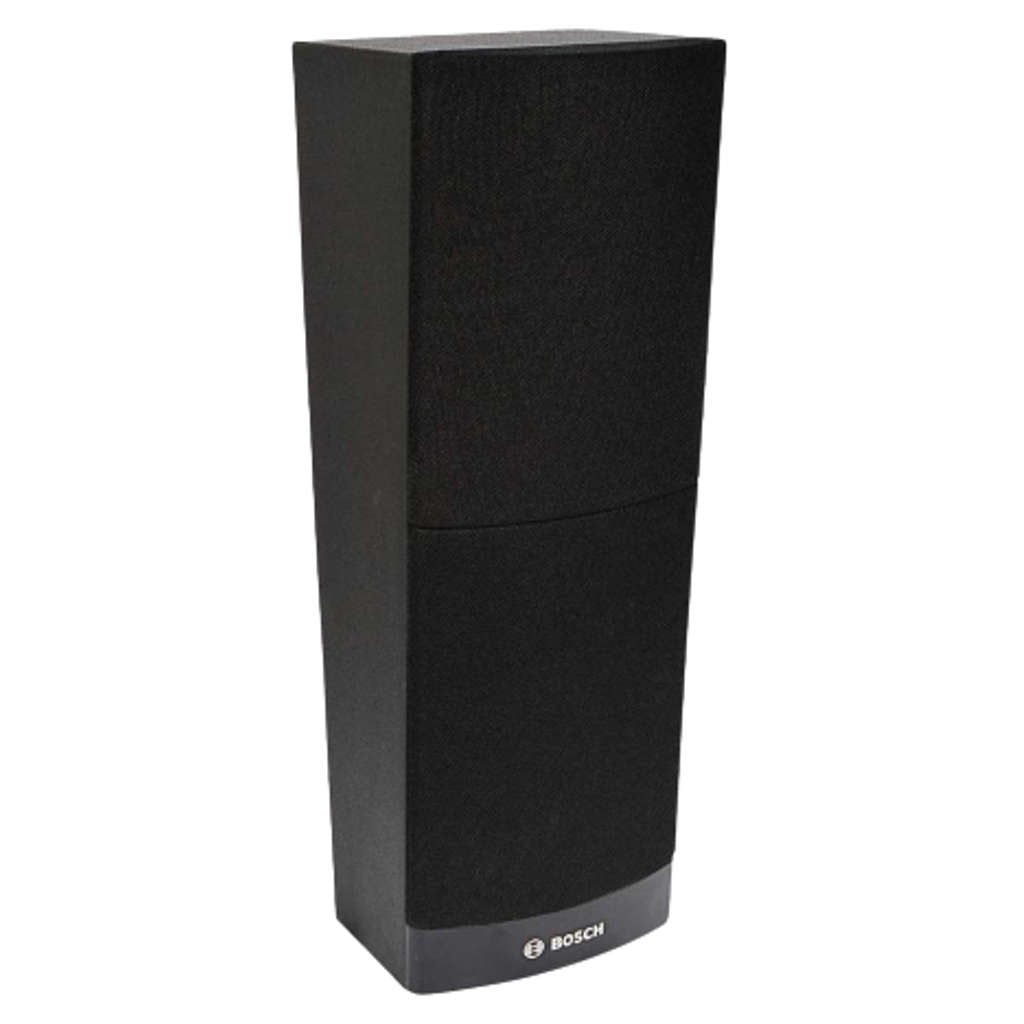

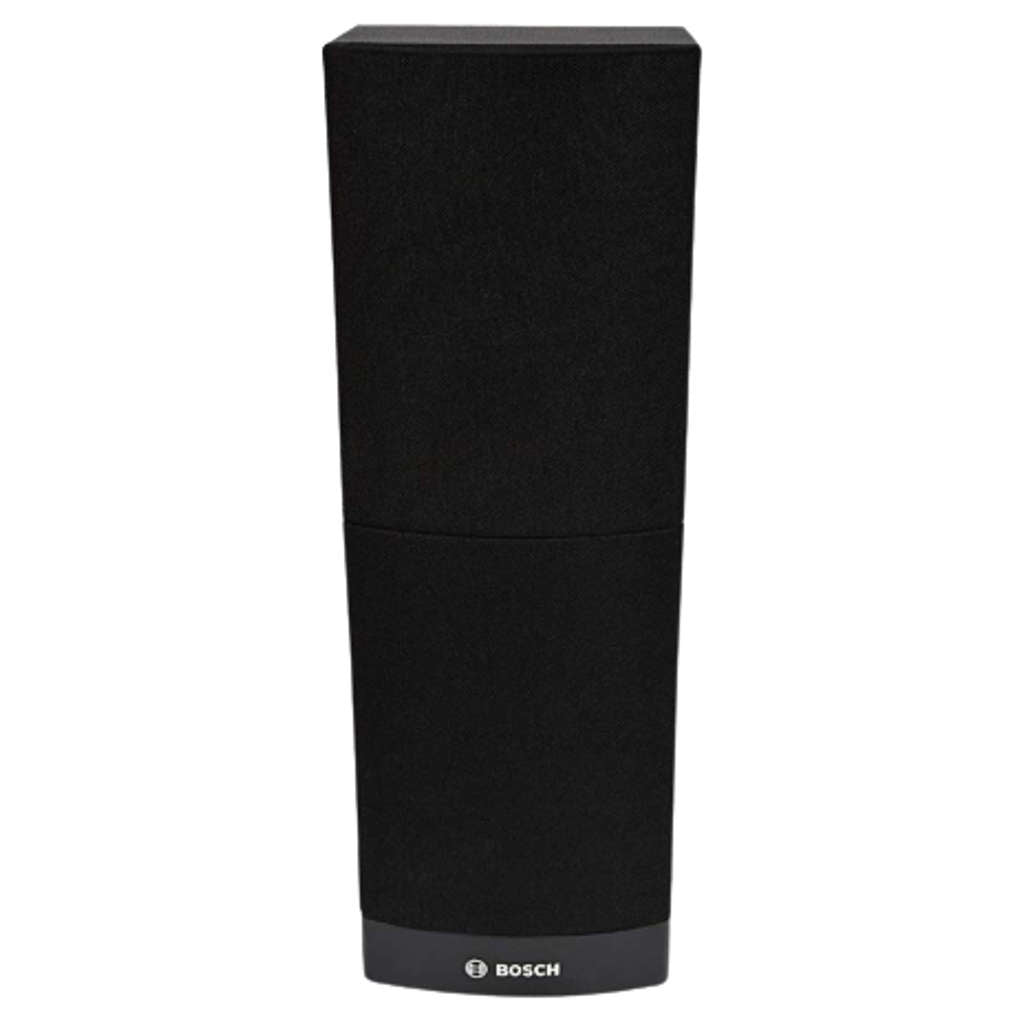

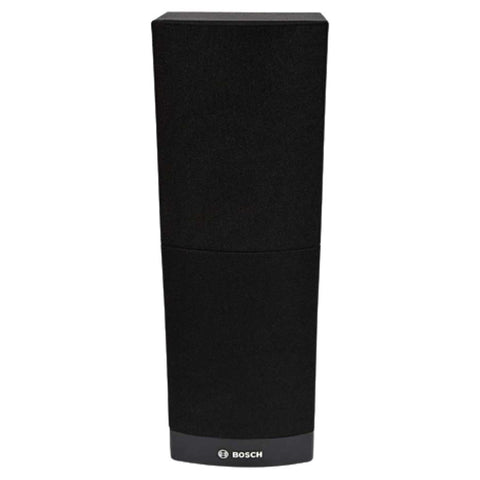

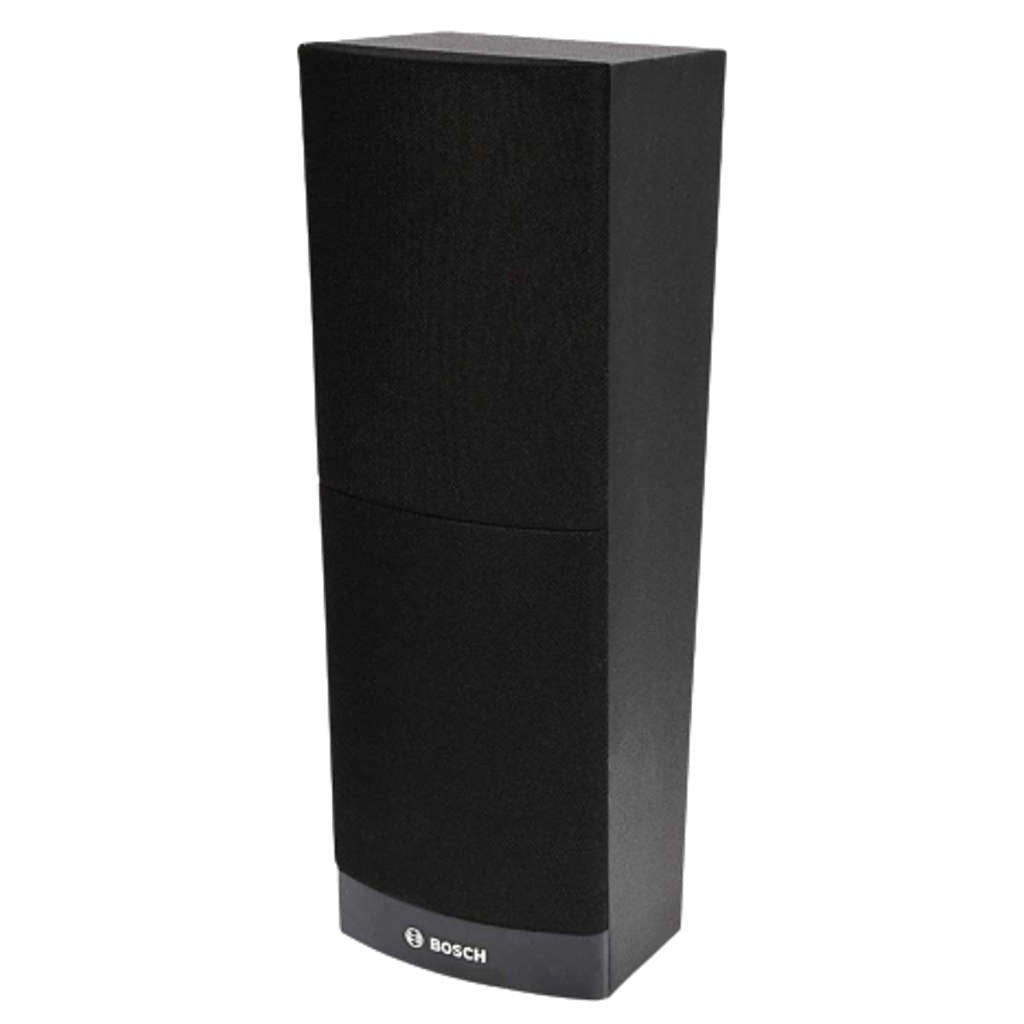

Bosch Cabinet Loudspeaker 12W Black LBD3903-D

Bosch Cabinet Loudspeaker 12W Black LBD3903-D

Visit the Bosch Store

₹ 2,330.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • BOSCH LBD3903-D 12W Cabinet Loudspeaker is a 12W,general-purpose,cost effective loudspeaker for indoor use

  • Keyholes at the rear are provided for quick and easy wall mounting

  • The angled front baffle results in a better sound in the listening area

  • The cabinet is available in black or white

  • The robust,solid MDF (Medium Density Fiber board) enclosures are covered with a durable,easy-to-clean vinyl in white or black

  • The ABS fronts are covered with fine woven cloth in matching color

  • BOSCH LBD3903-D 12W Cabinet Loudspeaker has been tested for operation at rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards

  • Three keyholes in the rear panel provide easy and quick wall mounting

  • A convenient,easy-to-use,4-pole push-in terminal block is on the rear panel for on-site wiring

  • This terminal block has provision for power tapping on the 100-volt,matching transformer in the cabinet

  • It allows selection of nominal full-power,halfpower or quarter power radiation (in 3 dB steps)

Product Specification

Brand

Bosch

Product Type

Cabinet Speaker

Product Model

LBD3903-D

Rated Power

12W

Sound Pressure Level At

12W/1 W (1 kHz, 1 m)

101dB/90dB

Effective Frequency Range

150Hz to 15kHz

Opening Angle Horizontal(1kHz/ 4kHz,-6dB)

195°/95°

Opening Angle Vertical(1kHz/ 4kHz,-6dB)

70°/20°

Rated Impedance

833 Ohm

Rated Input Voltage

100V

Connector

4 Pole Push In Terminal

Operating Temperature

-5 °C to +55 °C

Storage Temperature

-40 °C to +70 °C

Colour

Black

Warranty

As Per Manufacturer Terms And Conditions

Other Details

Dimension (CM) LxWxH

15 x 15.1 x 44.5

Unit Of Measurement

1 Piece

Weight

2.6 kg

Generic Name

Cabinet Speakers

Manufacturer Details

Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665

Packer Details

Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665

Country Of Origin

India
