SKU # 1000122211

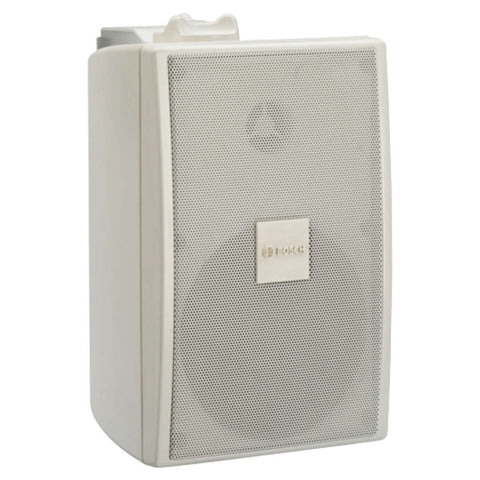

Bosch Cabinet Loudspeaker 30W White LB2-UC30-L1
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Features
-
High-fidelity music and speech reproduction
-
Selectable 8 ohm,70V and 100V inputs
-
Compact yet robust ABS enclosure
-
Supplied with adjustable mounting bracket
-
Complies with international installation and safety regulations
-
The LB2-UC30-D1 Premium-sound cabinet loudspeakers are intended for clear reproduction of speech,foreground and background music to be used in general indoor and outdoor applications
-
The Premium-sound cabinet loudspeaker range consists of a 15W and 30W model,available in a light or dark color
-
The loudspeakers have selectable 8 ohm,70V and 100V inputs
-
The ABS cabinets are fitted with aluminum front-grilles and standard supplied with aluminum bracket
-
Typical applications are: theme bars,music restaurants,theme parks,retail outlets,audio,visual, boardrooms and offices,exhibition areas,showrooms,fitness centers and presentation environments
-
Quality Assurance
-
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-5 Power handling Capacity (PHC) standards
-
Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations
-
This ensures improved reliability under extreme conditions,leading to higher customer satisfaction, longer operating life,and lessons the chance of failure or performance deterioration
Product Specification
Brand | Bosch |
Product Type | Cabinet Speaker |
Product Model | LB2-UC30-L1 |
Maximum Power | 45W |
Rated Power | 30W |
Power Tapping | 30/15/7.5/3.75 W |
Sound Pressure Level (At Rated Power/1W, 1 KHz, 1m) | 105/90 dB |
Effective Frequency Range ( -10 db ) | 100 Hz to 19 kHz |
Opening Angle Horizontal(1kHz/ 4kHz,-6dB) | 166° / 83° |
Opening Angle Vertical(1kHz/ 4kHz,-6dB) | 140° / 76° |
Rated Input Voltage | 15.5/70/100 V |
Rated Impedance | 8/163/333 ohm |
Transducers | 127 mm (5”) woofer, 13 mm (0.51”) dome tweeter |
Connection | 2 m (78.8 in.) two-wire cable |
Operating Temperature | -25 °C to +55 °C (-13 °F to +131 °F) |
Storage And Transport Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Relative Humidity | <95% |
Colour | White |
Warranty | As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) LxWxH | 13.1 x 16 x 24.5 |
Unit Of Measurement | 1 Piece |
Weight | 2.4 kg |
Generic Name | Cabinet Speakers |
Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Country Of Origin | India |
