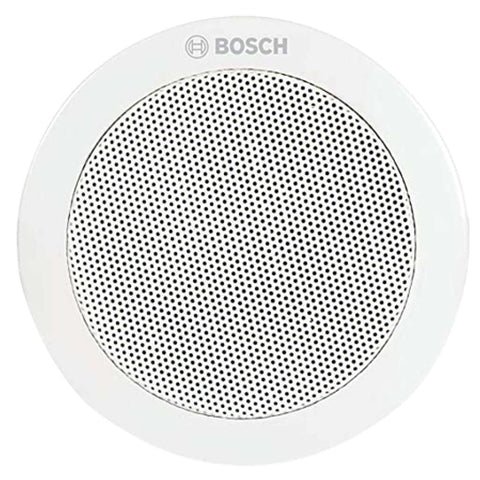

Bosch Metal Compact Ceiling Speaker 6W LCZ-UM06-IN

Bosch Metal Compact Ceiling Speaker 6W LCZ-UM06-IN

Visit the Bosch Store

₹ 1,050.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The LCZ-UM06-IN is a general purpose,6W,compact ceiling loudspeaker, suitable for speech as well as music reproduction,preferred in places where there is a space constraint

  • The ceiling loudspeaker is compact in design,integrated with a metal grille and baffle,finished with an attractive signal-white color

  • The loudspeaker has good sensitivity and a wide frequency range,which makes it suitable for speech and music reproduction

  • It has an in-built line matching transformer,which supports a 100V line output from the amplifier

  • The transformer has 3-tappings-full power,half power and quarter power,which helps the user to select the desired output levels based on their customized requirements

  • The loudspeaker is equipped with an spring mounting mechanism,which helps in quick installation of the speaker on the ceiling

  • Features

  • Available in 6 W power output

  • Excellent for speech and music reproduction

  • Compact design,suitable for small places

  • Available in attractive signal-white color

  • Quick installation through integrated spring mount mechanism

  • Installation/Configuration Notes

  • The ceiling loudspeaker unit has a diameter of 105 mm

  • A cutout of 84 mm diameter needs to be carved out in the ceiling for installation

  • The loudspeaker can be installed by pulling up the mounting clamps and inserting the loudspeaker into the cutout in the ceiling

Product Specification

Brand

Bosch

Product Type

Ceiling Speaker

Product Model

LCZ-UM06-IN

Electrical

Rated Power

6W

Input Voltage

100 V

Sound Pressure Level (At 6 W / 1 W ,1 KHz)

92/85 dB

Effective Frequency Range (-10 dB)

100 Hz to 20 kHz

Opening Angle At 1 KHz / 4 KHz (-6 dB)

180° / 130°

Rated Voltage

100 V

Rated Impedance

1667 ohm

Connector

4-pole screw connector

Environmental

Operating Temperature

-5 °C to +55 °C

Storage Temperature

-40 °C to +70 °C

Relative Humidity

95%

Colour

White

Warranty

As Per Manufacturer Terms And Conditions

Other Details

Dimension (CM) LxWxH

13.3 x 13.3 x 1.1

Unit Of Measurement

1 Piece

Weight

0.580 kg

Generic Name

Ceiling Speakers

Manufacturer Details

Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665

Packer Details

Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665

Country Of Origin

India
