SKU # 1000122190
Bosch Premium Sound Ceiling Loudspeaker 30W LC1-PC30G6-6-IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-

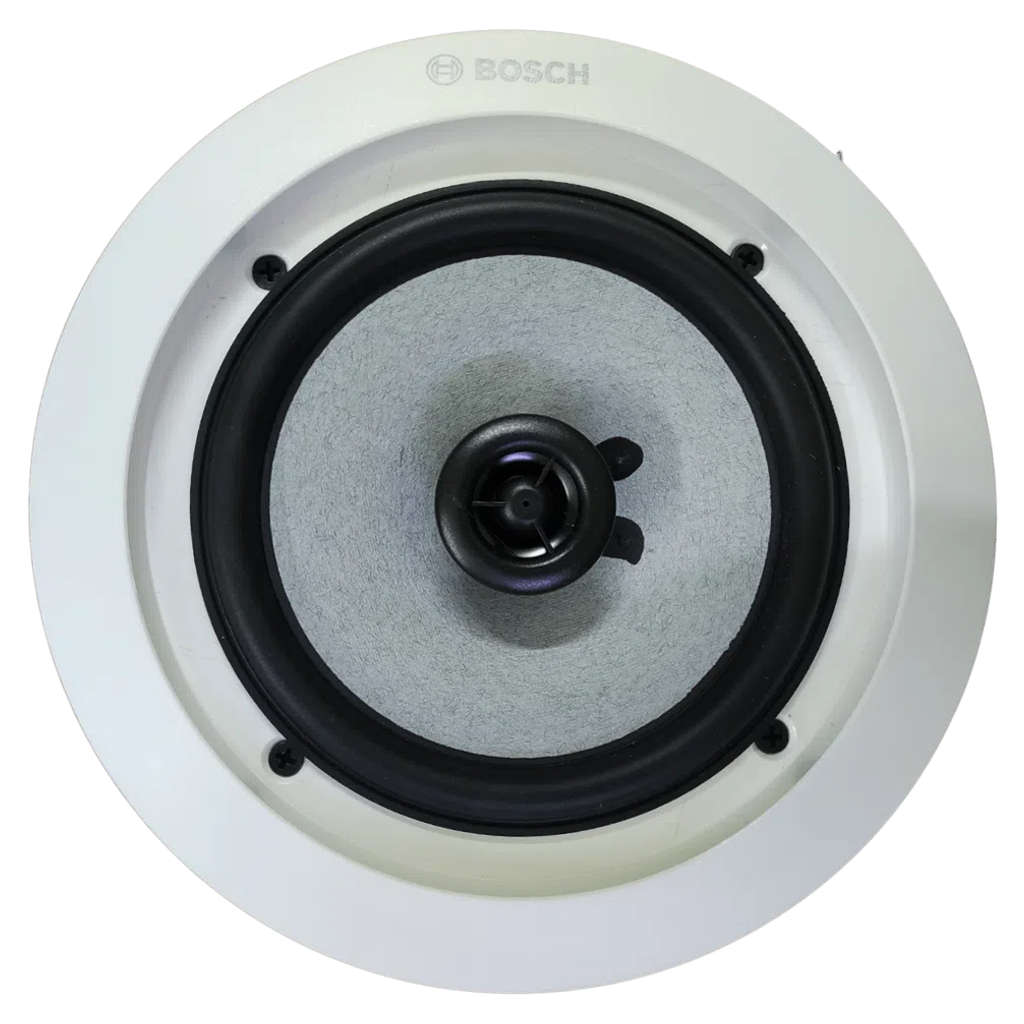

The LC1-PC30G6-6-IN is a high-efficiency,coaxial full-range premium ceiling loudspeaker providing excellent speech and music reproduction
-
This ceiling speaker gives sound distribution for a wide scope of ceiling mounted application
-
These are ideal for hotels,restaurants,shopping centers,convention centers,office buildings,etc
-
Where both speaker and music reproduction of high quality is required
-

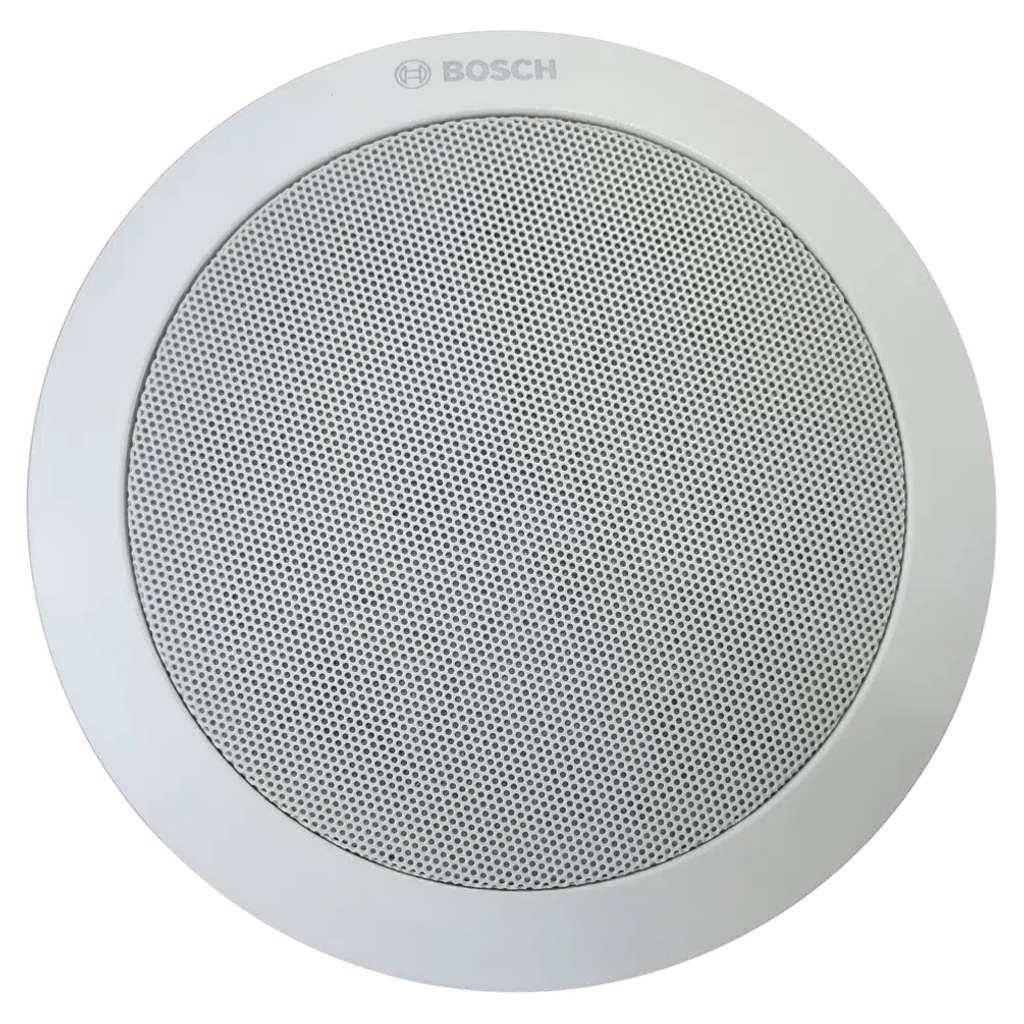

The LC1-PC30G6-6-IN is a circular shaped,ABS material ceiling loudspeaker and has full-range performance in the bandwidth of 70 Hz to 20 kHz
-
It comes with a poly cone tweeter for enhanced performance
-
The speaker has a line matching transformer to connect to a 100V output from an amplifier
-
The loudspeaker has power tappings at full power (30W),half power (15W), and quarter power (7.5W) to connect at different power levels
-
Features
-
Excellent sound reproduction
-
Co-axial full-range speaker with poly cone tweeter
-
Easy to install
-
Simple power tappings at full,half and quarter power
-
Tested for PHC with 100 hr continuous operation as per IEC60268-1&5
-
Functions
-
The LC1-PC30G6-6-IN model ceiling speaker is for direct connection to a 100V line output and is finished in white (RAL 9003) color
-

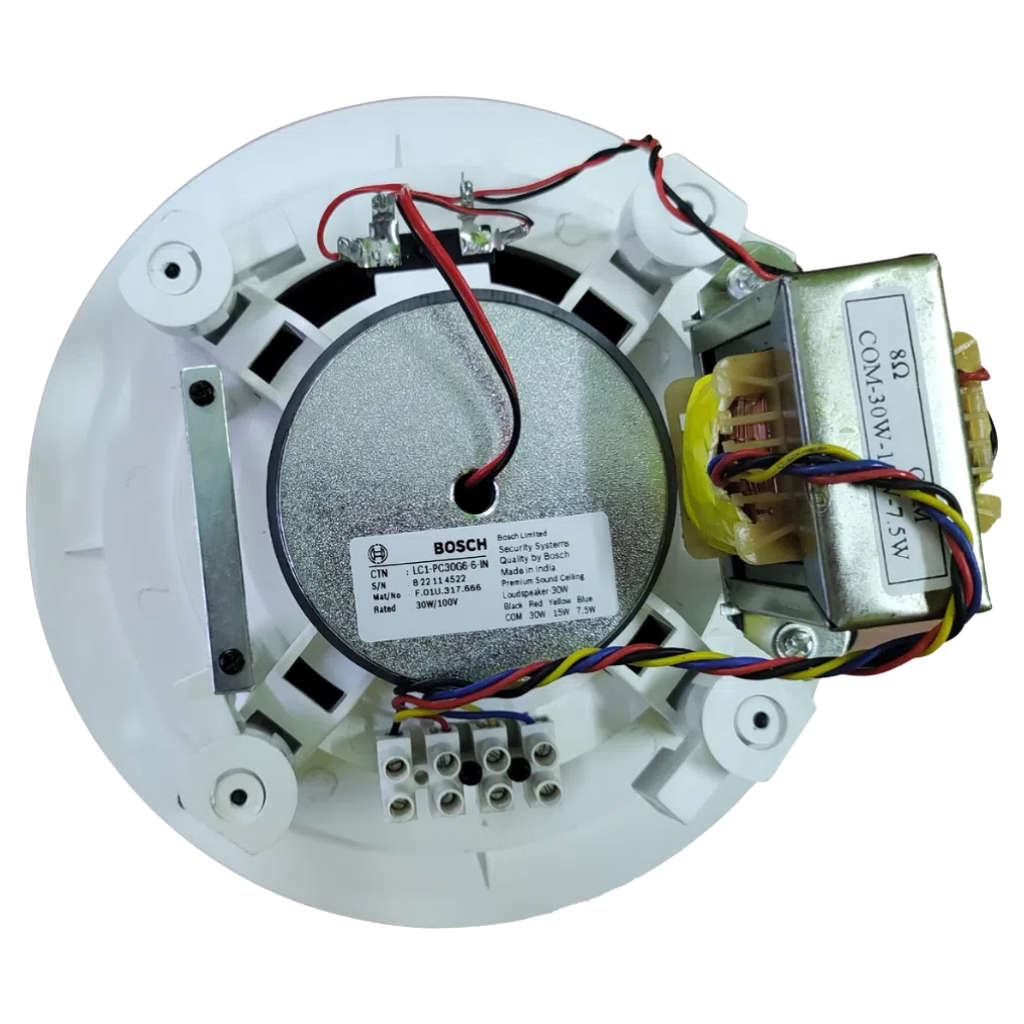

The ceiling loudspeaker comes with a 100V transformer with taps on the primary winding to allow different power tappings
-
Nominal full-power,half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping
Product Specification
Brand | Bosch |
Product Type | Ceiling Speaker |
Product Model | LC1-PC30G6-6-IN |
Electrical | |
Maximum Power | 45W |
Rated Power | 30W |
Power Taps At 100V | 30 W – 15 W – 7.5 W |
Sound Pressure Level 1 kHz oct, 1 W, @1 m | 90 dB (±3 dB) |
Effective Frequency Range (-10 dB) | 70 Hz to 20 kHz |
Opening Angles (-6 dB) | 1 K : > 180 ̊ |
Rated Voltage | 100 V |
Rated Impedance At Rated Power | 333 / 666 / 1333 Ohm |
Safety | Refer to EN 60065 |
Connection | Screw terminal connector(ABS) |
Driver / Speaker Diameter | 5 in / 8 in |
Tweeter | ½ inch poly cone |
Colour | White |
Warranty | As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) LxWxH | 28 x 33 x 22 |
Unit Of Measurement | 1 Piece |
Weight | 1.6 kg |
Generic Name | Ceiling Speakers |
Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Country Of Origin | India |
